Brake Booster Vacuum Sensor

1.

Relieve the vacuum in the brake booster by pressing and releasing the brake pedal a minimum of 5 times with the engine not running.

2.

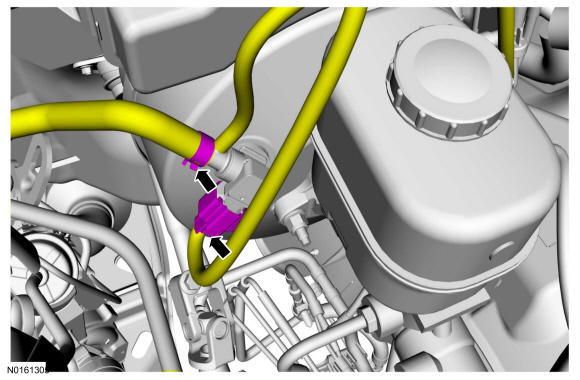

Detach the vacuum hoses and disconnect the vacuum sensor electrical connector.

GFD134900

Courtesy of FORD MOTOR COMPANY

3.

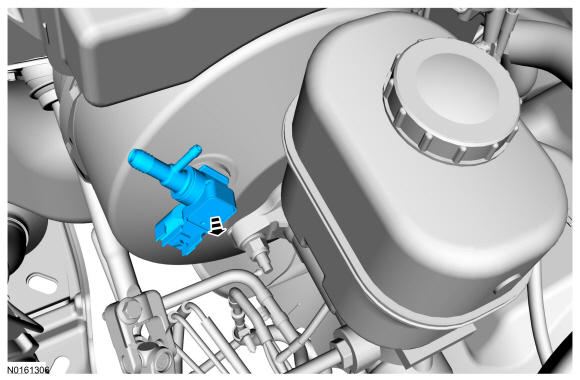

Remove the vacuum sensor.

GFD134901

Courtesy of FORD MOTOR COMPANY

4.

NOTE: To allow proper drainage of any moisture, the vacuum sensor must be installed in the same position and orientation as removed.

To install, reverse the removal procedure.
