Turbocharger Oil Supply Tube RH: Removal

NOTE: Whenever turbocharger air intake system components are removed, always cover open ports to protect from debris. It is important that no foreign material enter the system. The turbocharger compressor vanes are susceptible to damage from even small particles. All components should be inspected and cleaned, if necessary, prior to installation or reassembly.

NOTE: During the removal or installation of components, cap, tape or otherwise appropriately protect all openings and tubes/fittings to prevent the ingress of dirt or other contamination. Remove caps, tape and other protective materials prior to installation.

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to Jacking and Lifting
2. Remove the oil filler cap and then remove the engine appearance cover. Install the oil filler cap.

   Courtesy of FORD MOTOR COMPANY

3. Remove the cowl panel. Refer to Front End Body Panels
4. Detach the brake booster vacuum hose retainers from the strut tower brace.

   Courtesy of FORD MOTOR COMPANY

5. Remove the strut tower brace nuts and then remove the strut tower brace.

   Courtesy of FORD MOTOR COMPANY

6. • Disconnect the turbocharger bypass valve electrical connector and the turbocharger bypass valve hose.
   • Remove the turbocharger wastegate regulating valve hose from the RH Charge Air Cooler(CAC) tube.
   • Remove the RH CAC tube nut.

   Courtesy of FORD MOTOR COMPANY

7. • Disconnect the RH turbocharger bypass valve electrical connector.
   • Disconnect the RH turbocharger bypass valve hose.
   • Loosen the clamps and remove the RH CAC tube.

   Courtesy of FORD MOTOR COMPANY

8. Detach the Heated Oxygen Sensor(HO2S) electrical connector and position out of the way. Remove the HO2S connector bracket nut and the HO2S connector bracket.

   Courtesy of FORD MOTOR COMPANY

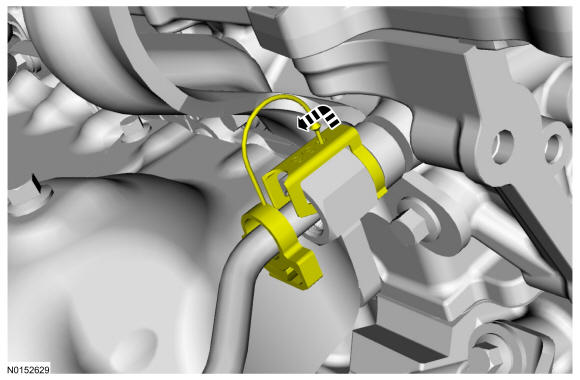

9. Remove the RH oil supply tube secondary latch.

   Courtesy of FORD MOTOR COMPANY

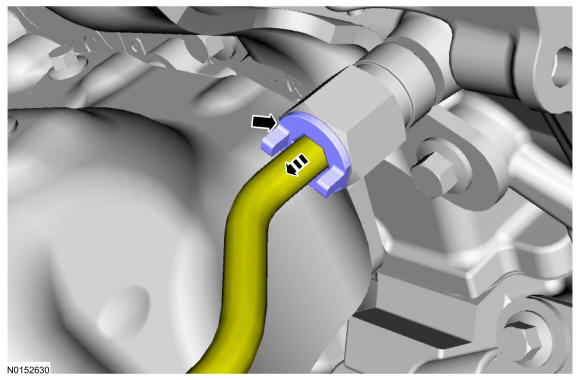

10. Using the Spring Lock Coupling Disconnect Tool, remove the RH oil supply tube from the quick connect fitting. Refer to Fuel System General Information

    Courtesy of FORD MOTOR COMPANY

11. Remove the RH engine lifting eye and the RH engine lifting eye bolts.

    Courtesy of FORD MOTOR COMPANY

12. Remove the Right Front(RF) tire. Refer to Wheels and Tires
13. Remove the turbocharger heat shield bolts and then remove the turbocharger heat shield.

    Courtesy of FORD MOTOR COMPANY

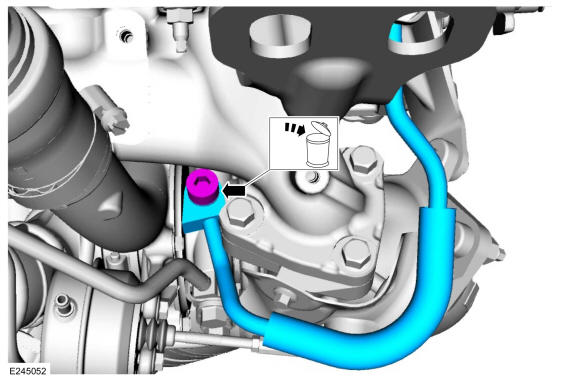

14. Remove and discard the turbocharger oil supply tube bolt, then remove the turbocharger oil supply tube.

Courtesy of FORD MOTOR COMPANY
