Turbocharger Coolant Supply Tube LH: Installation

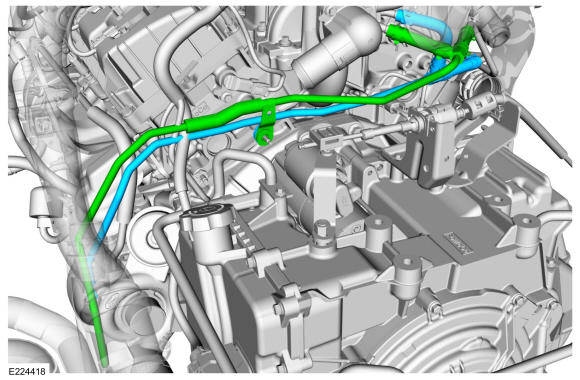

1. 1. Install the turbocharger coolant supply tube.
   2. Install the turbocharger coolant return tube.

   Courtesy of FORD MOTOR COMPANY

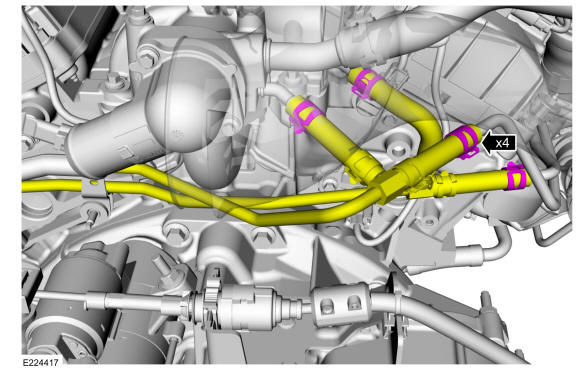

2. Connect the turbocharger coolant hoses and clamps.

   Courtesy of FORD MOTOR COMPANY

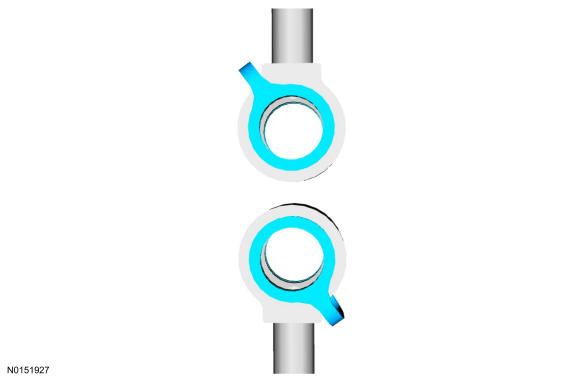

3. Install the 2 new turbocharger coolant tube linked sealing washers.

   Courtesy of FORD MOTOR COMPANY

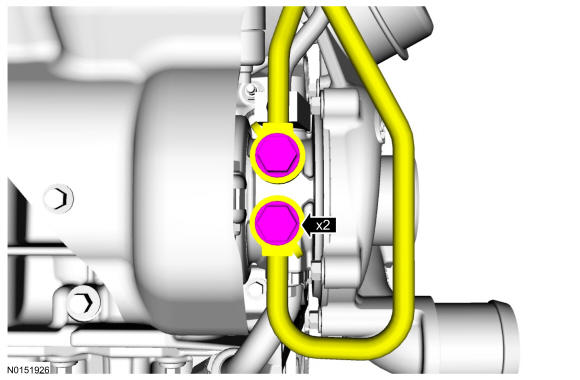

4. Install the turbocharger coolant tubes, then install and tighten the new turbocharger coolant tube bolts in the following 2 stages.
   • Stage 1: Tighten to 12 Nm (106 lb-in).
   • Stage 2: Tighten 60 degrees.

   Courtesy of FORD MOTOR COMPANY

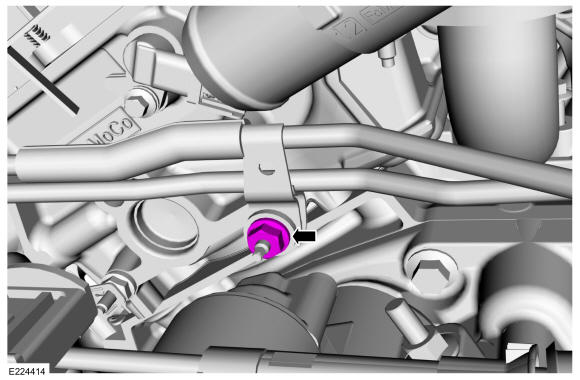

5. Install and tighten the coolant tube bracket retaining nut. Tighten to 12 Nm (106 lb-in).

   Courtesy of FORD MOTOR COMPANY

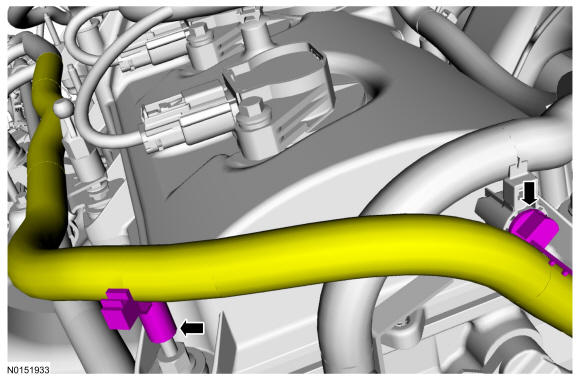

6. Attach the turbocharger wastegate control hose retainers.

   Courtesy of FORD MOTOR COMPANY

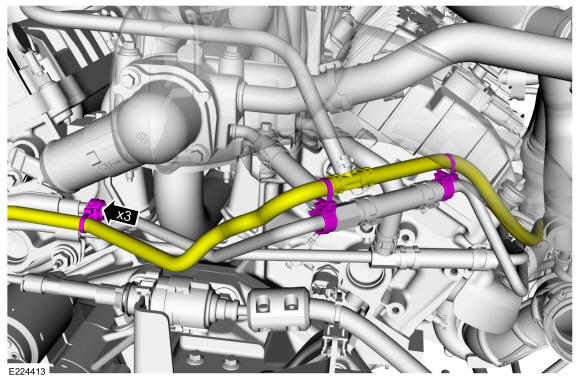

7. Attach the wiring harness retainers.

   Courtesy of FORD MOTOR COMPANY

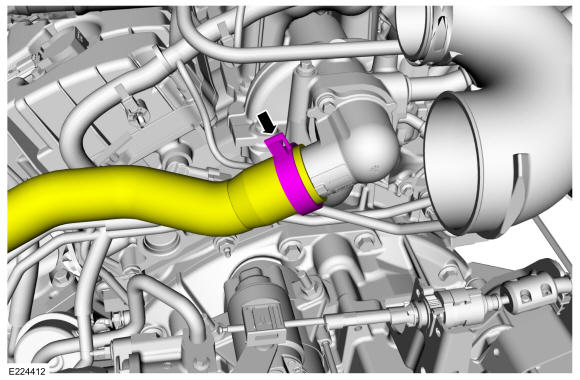

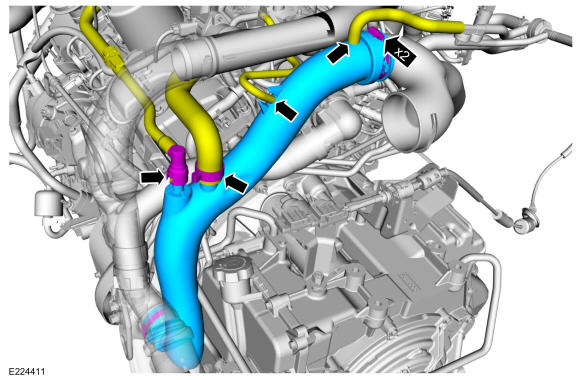

8. Connect the coolant hose and clamp.

   Courtesy of FORD MOTOR COMPANY

9. Install the turbocharger inlet tube and then tighten the turbocharger inlet tube clamps. Tighten to 5 Nm (44 lb-in).
   1. Connect the crankcase ventilation hose. Refer to Fuel System General Information .
   • Connect the vacuum hoses.
   • Connect the turbocharger bypass hose and clamp.

   Courtesy of FORD MOTOR COMPANY

10. Install the air cleaner assembly and the air cleaner outlet tube. Refer to Intake Air Distribution and Filtering .
11. Fill the cooling system. Refer to Engine Cooling .

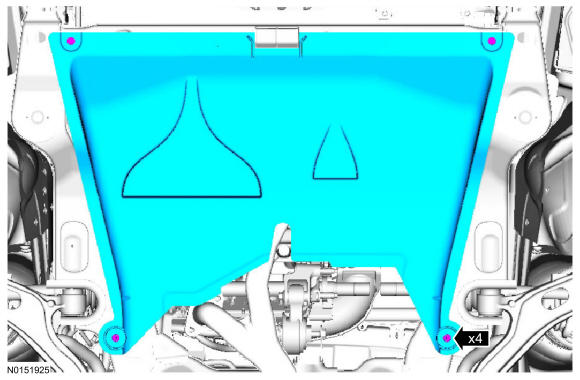

12. If equipped. Install the underbody shield and then install the underbody shield retainers.

    Courtesy of FORD MOTOR COMPANY

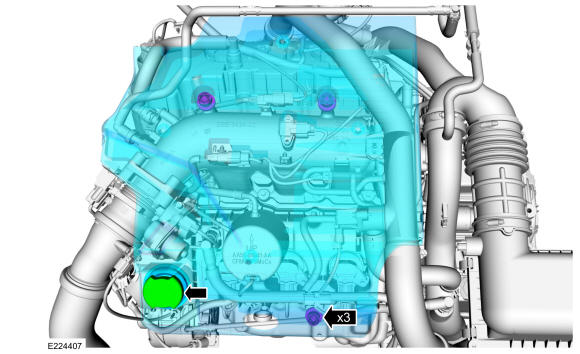

13. Remove the oil filler cap and install the engine appearance cover. Install the oil filler cap.

Courtesy of FORD MOTOR COMPANY
