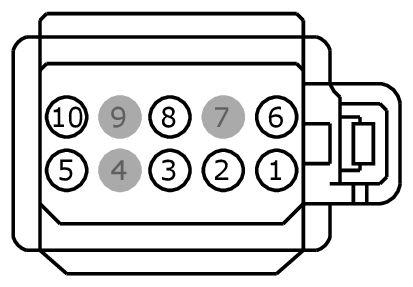

Connector End View C2999 - STEERING WHEEL SWITCH, RIGHT
Connector:C2999
Description
STEERING WHEEL SWITCH, RIGHT
Color
BK
Harness
14672
Base Part #
part# N/A
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | RRH02 (*) | * | GROUND - CROSS CAR BEAM # 2ND POINT | |
| 2 | * (*) | * | SWITCH- A/D CHAN 2 | |
| 3 | * (*) | * | SWITCH- A/D CHAN 1 | |
| 4 | * | * | Not Used | |
| 5 | * (*) | * | SWITCH GROUND, RIGHT | |
| 6 | VLN04 (*) | * | CTRL MOD. - IP/SWITCH ILLUMINATION | |
| 7 | * | * | Not Used | |
| 8 | * (*) | * | SWITCH- A/D CHAN 3 | |
| 9 | * | * | Not Used | |
| 10 | * (*) | * | SWITCH- A/D CHAN 4 |
