Brake Vacuum Pump - Limo: Removal
NOTE:
Steps in the removal procedure may contain installation details.
- Remove the front bumper cover. For additional information, refer to Bumpers .

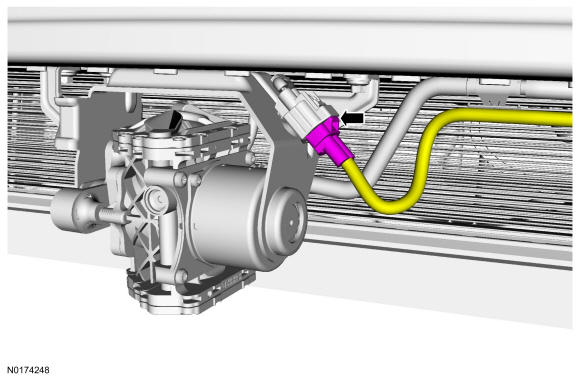

- Disconnect the brake vacuum pump electrical connector.

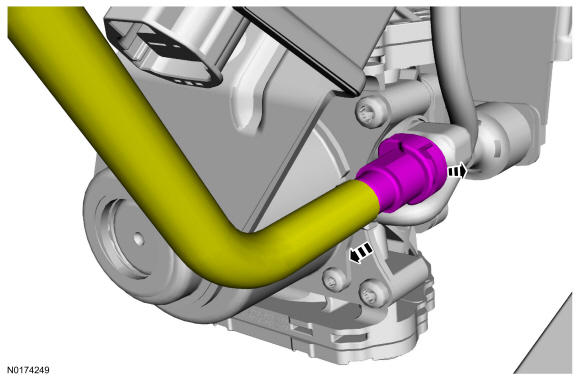

- Release the coupling lock and disconnect the vaccum tube.

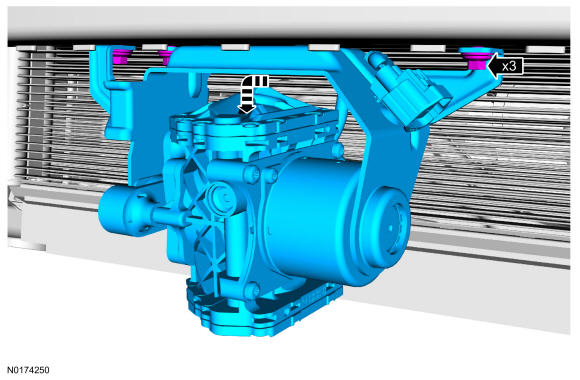

- Remove the bolts and the brake vacuum pump.
- To install, tighten to 25 Nm (18 lb-ft).
