Power Windows

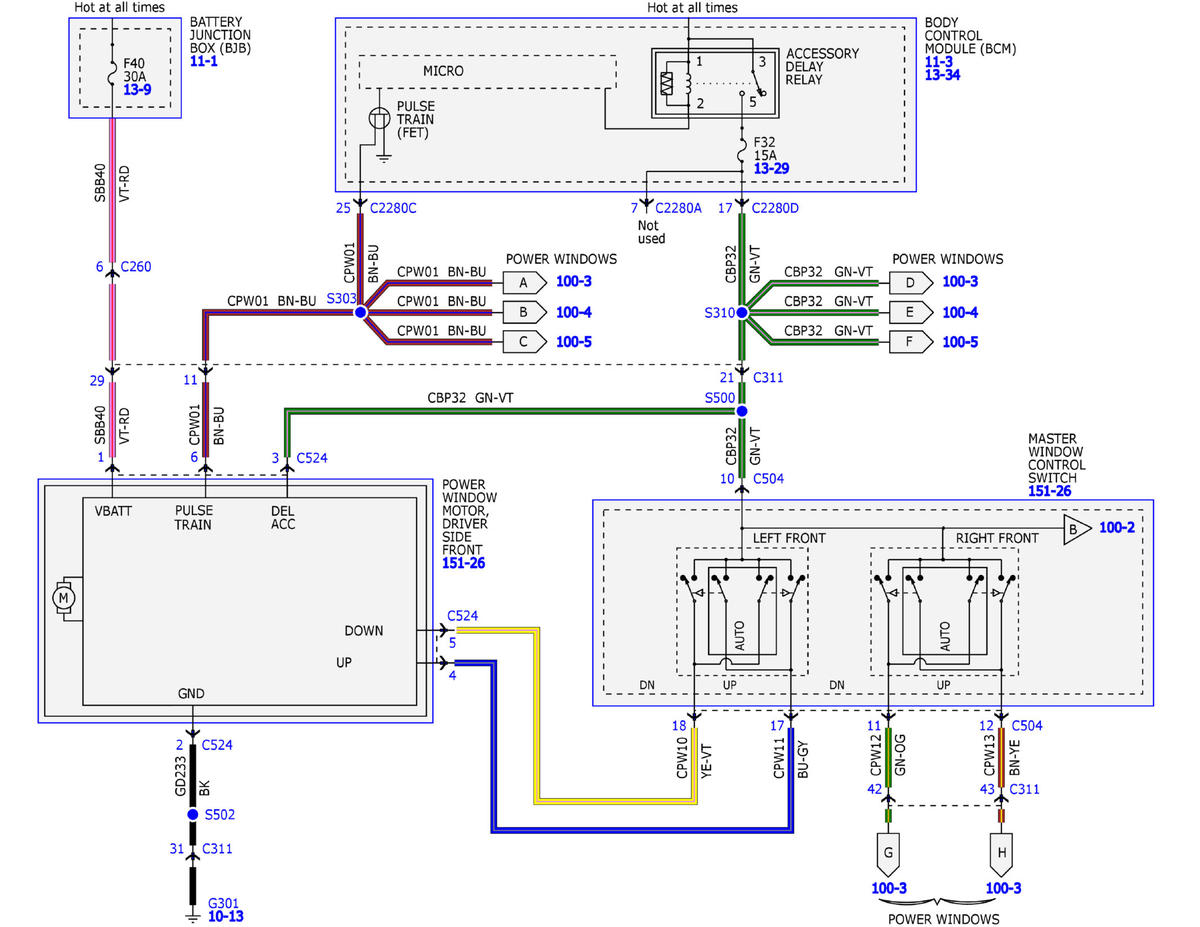

Fig 1: Power Windows Wiring Diagrams (1 Of 5)
GFDW92100Courtesy of FORD MOTOR COMPANY

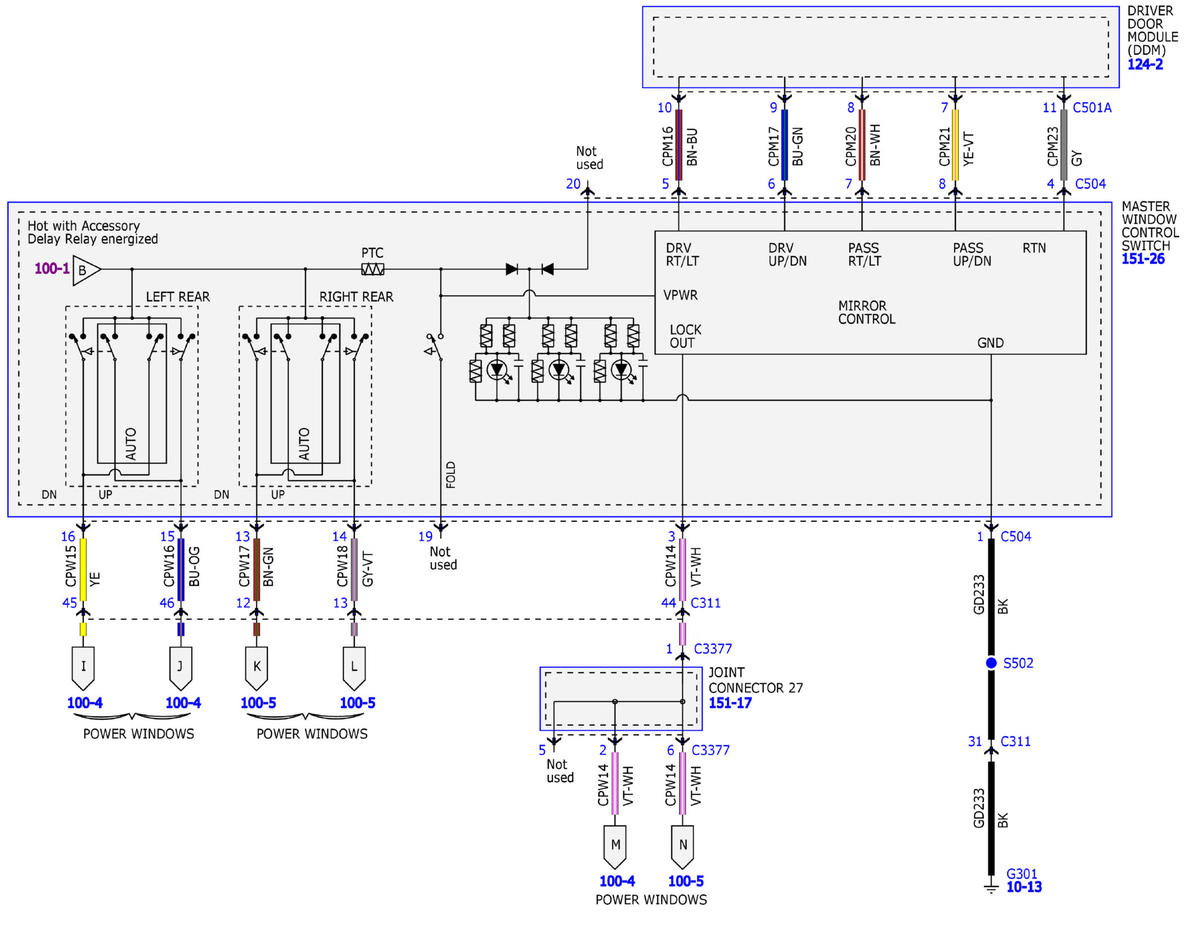

Fig 2: Power Windows Wiring Diagrams (2 Of 5)
GFDW92101Courtesy of FORD MOTOR COMPANY

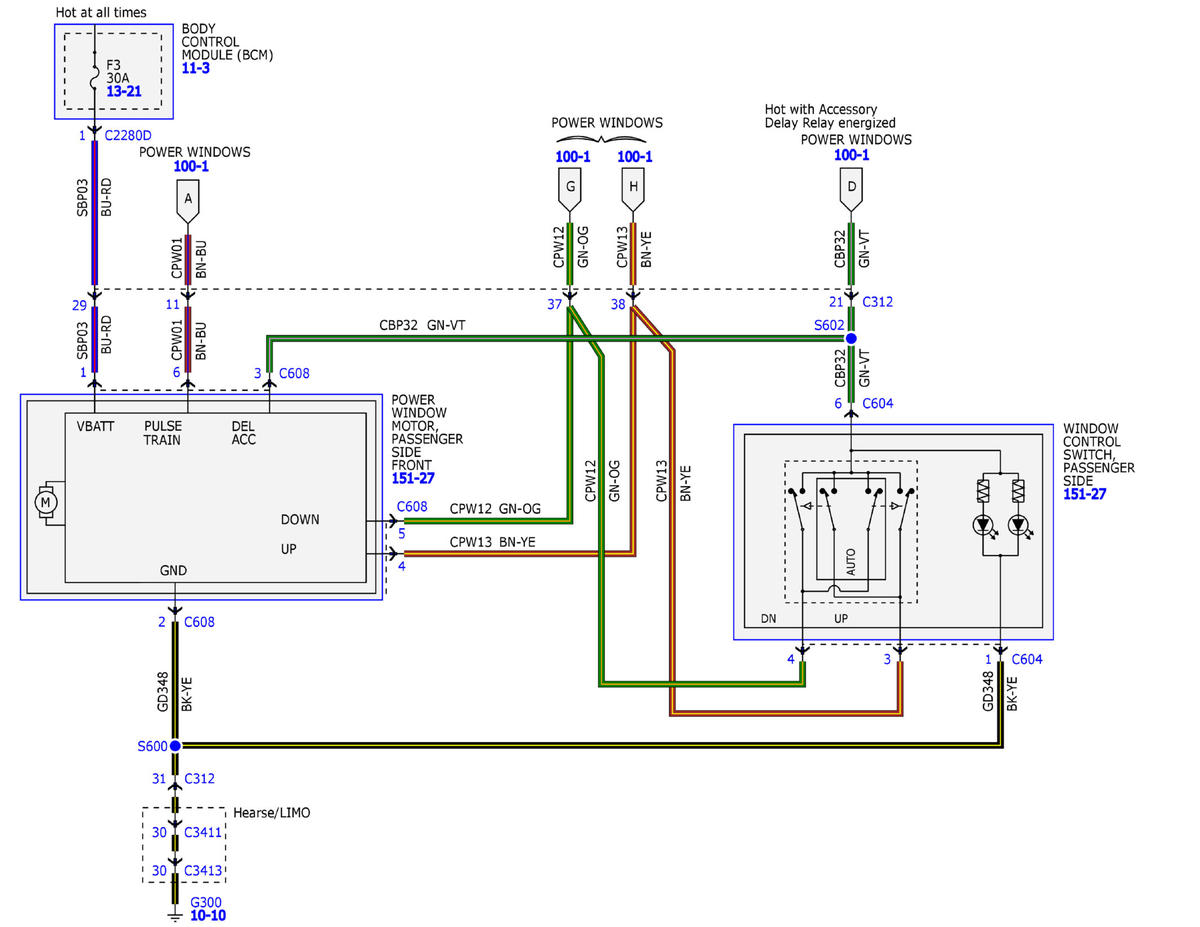

Fig 3: Power Windows Wiring Diagrams (3 Of 5)
GFDW92102Courtesy of FORD MOTOR COMPANY

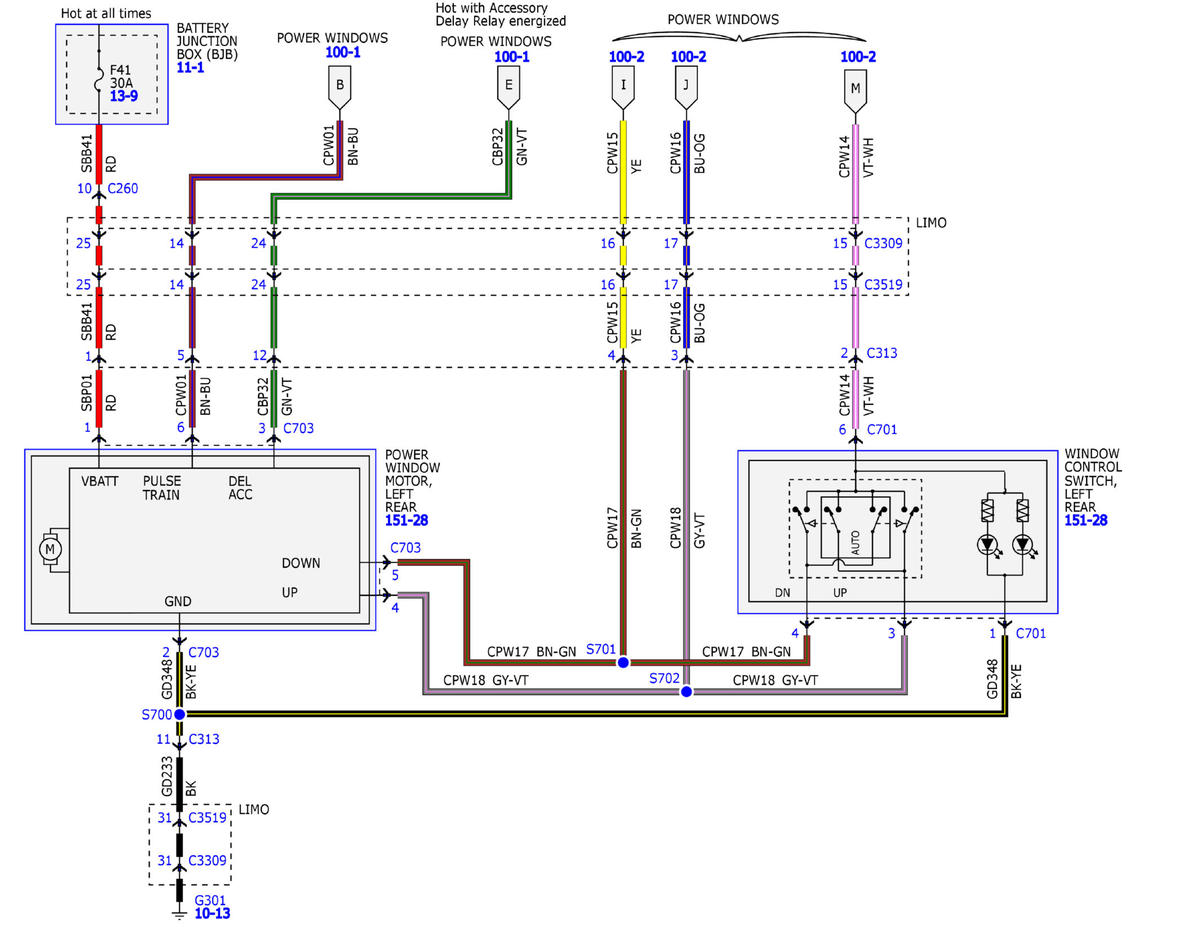

Fig 4: Power Windows Wiring Diagrams (4 Of 5)
GFDW92103Courtesy of FORD MOTOR COMPANY

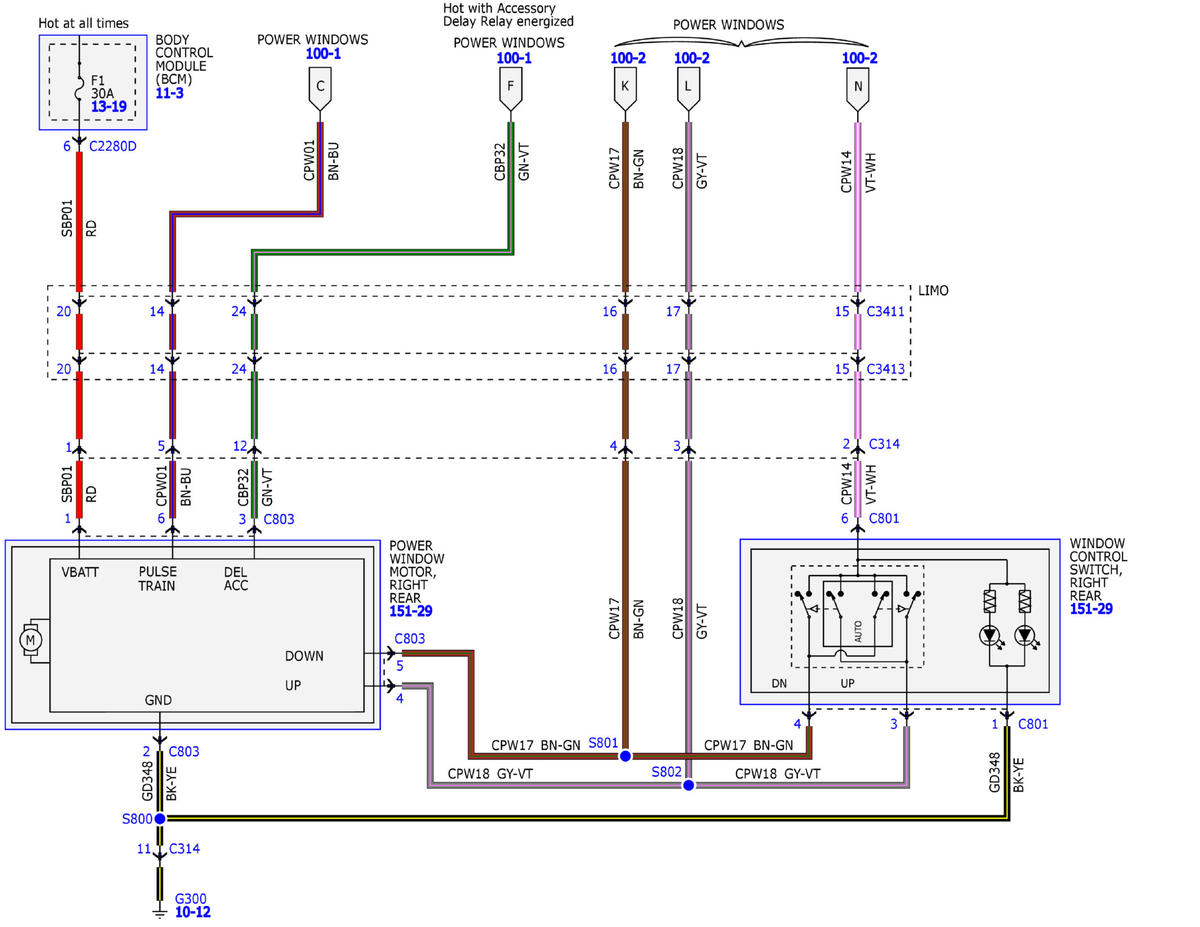

Fig 5: Power Windows Wiring Diagrams (5 Of 5)
GFDW92104Courtesy of FORD MOTOR COMPANY
