Lincoln
>>
2017
>>
MKT Base, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Instrument Cluster
Instrument Cluster

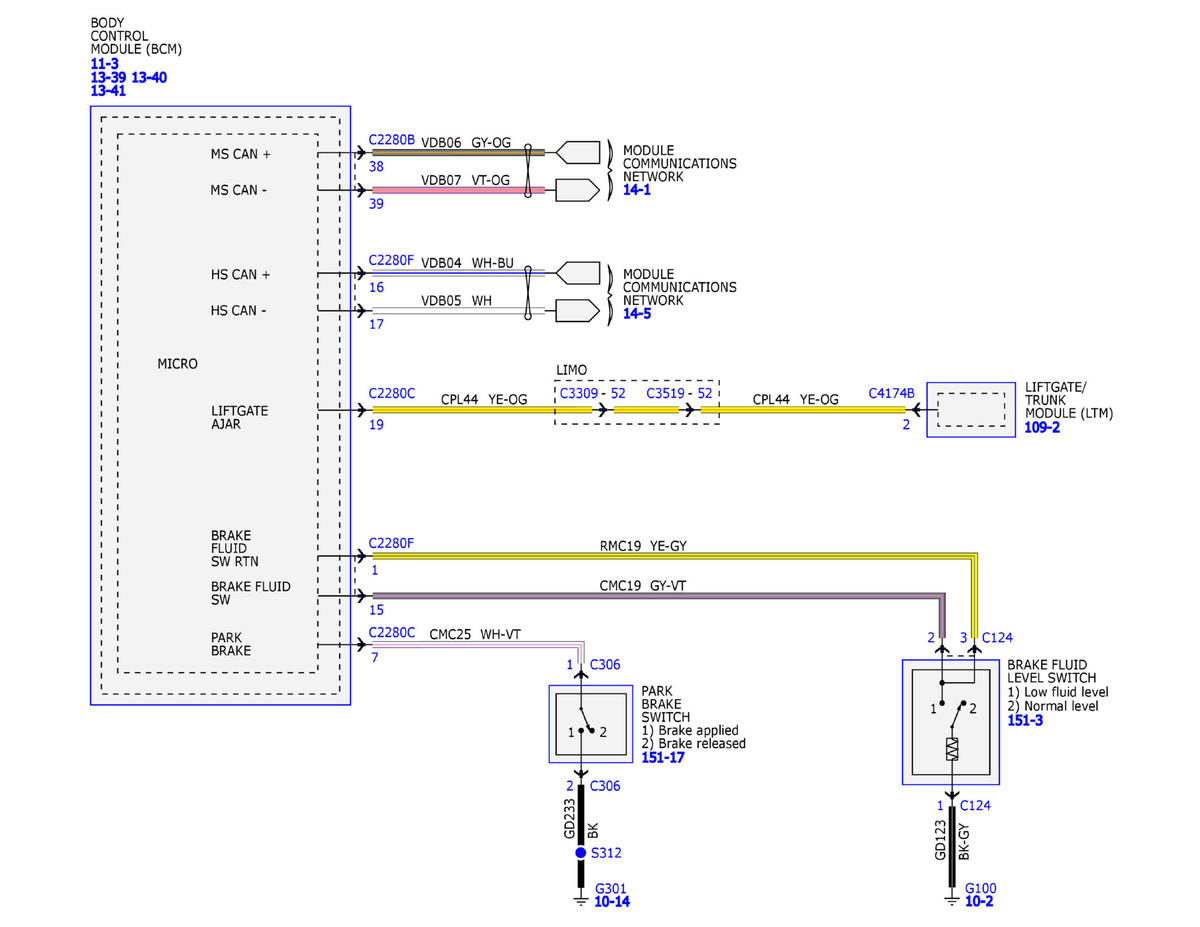

Fig 1: Instrument Cluster Wiring Diagrams (1 Of 6)
Courtesy of FORD MOTOR COMPANY

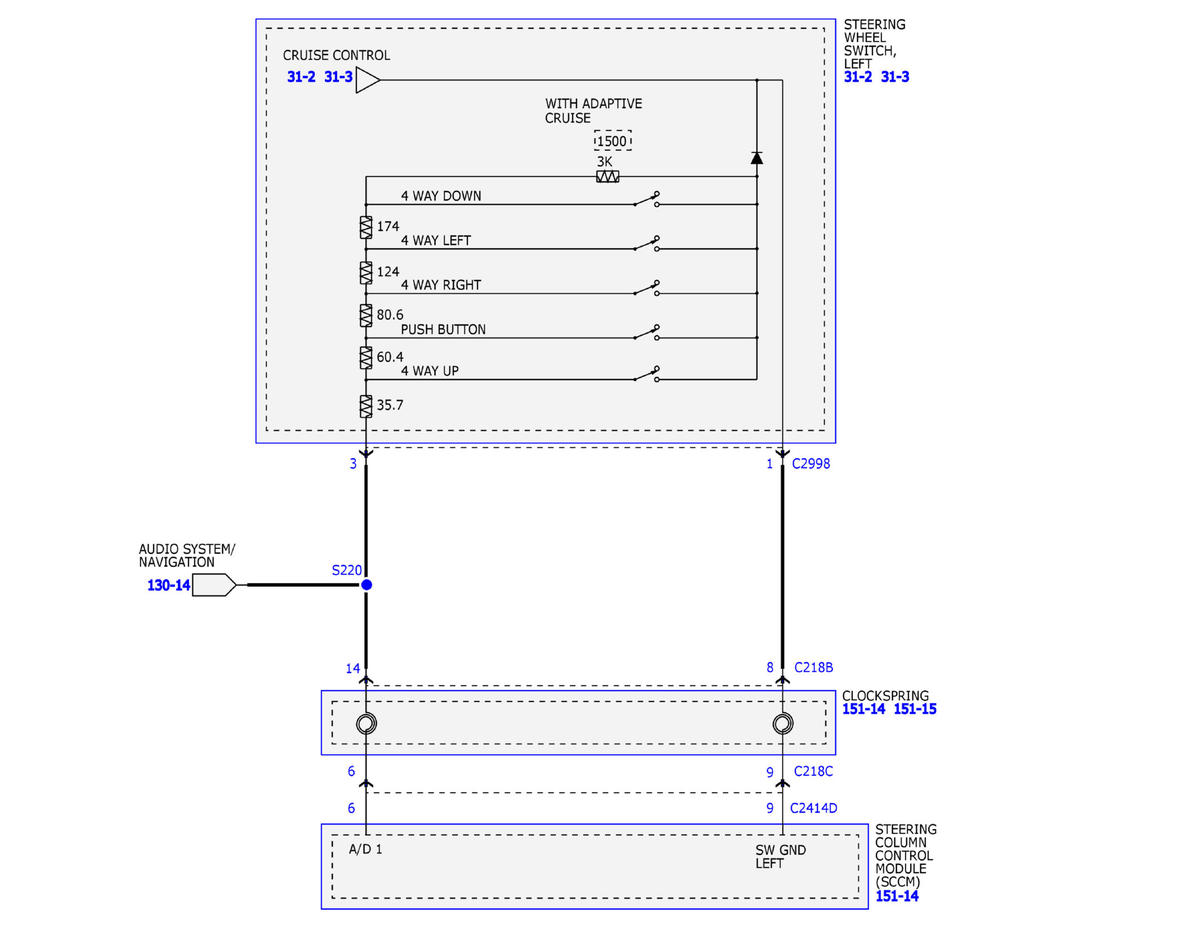

Fig 2: Instrument Cluster Wiring Diagrams (2 Of 6)
Courtesy of FORD MOTOR COMPANY

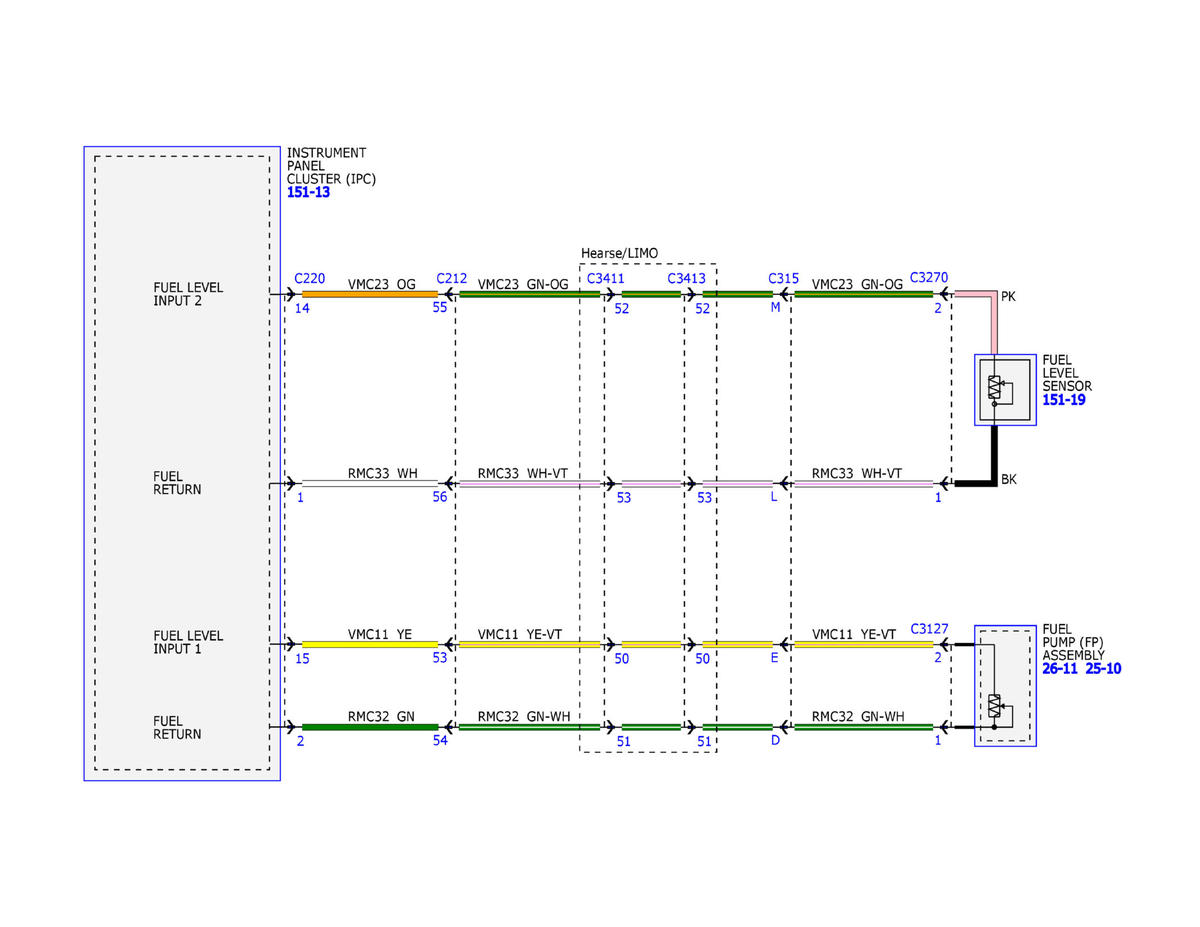

Fig 3: Instrument Cluster Wiring Diagrams (3 Of 6)
Courtesy of FORD MOTOR COMPANY

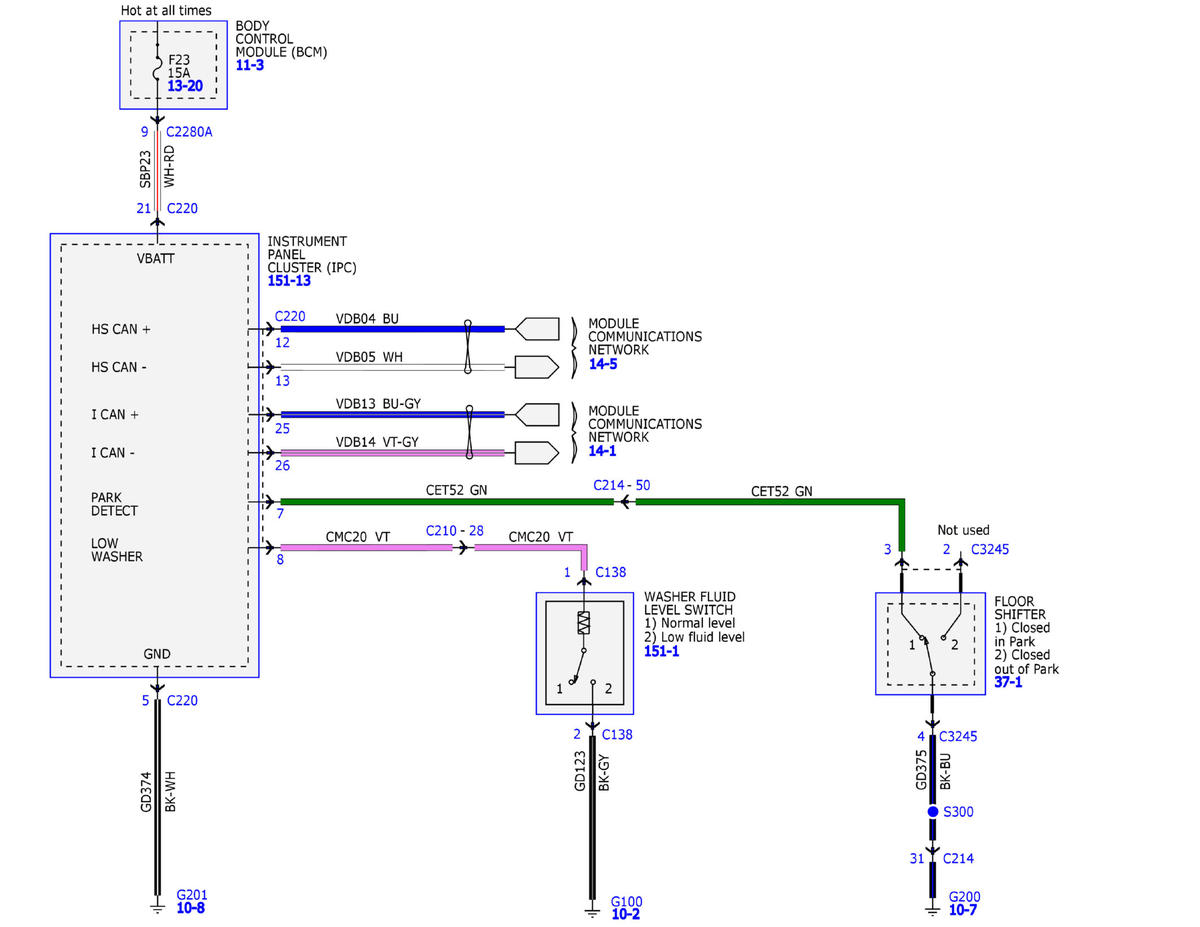

Fig 4: Instrument Cluster Wiring Diagrams (4 Of 6)
Courtesy of FORD MOTOR COMPANY

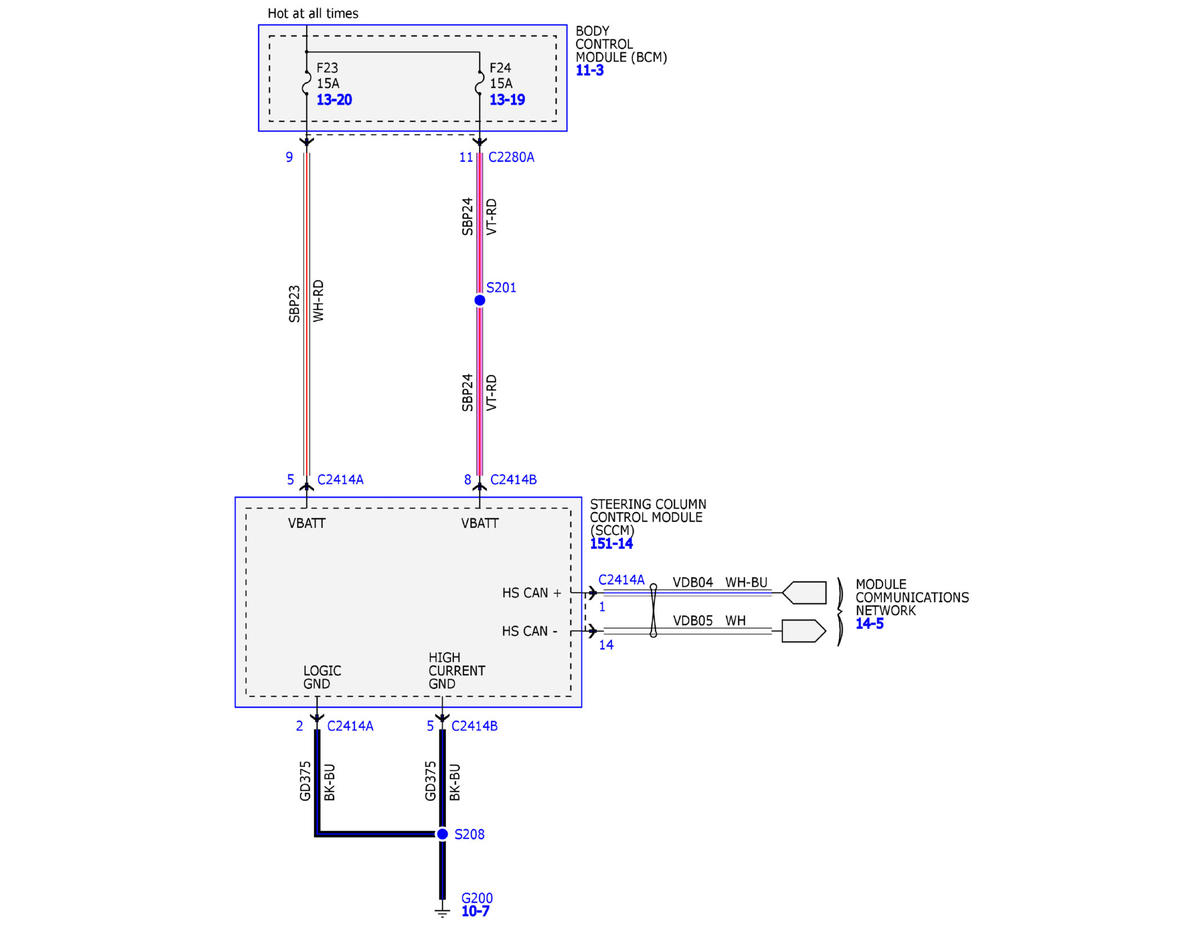

Fig 5: Instrument Cluster Wiring Diagrams (5 Of 6)
Courtesy of FORD MOTOR COMPANY

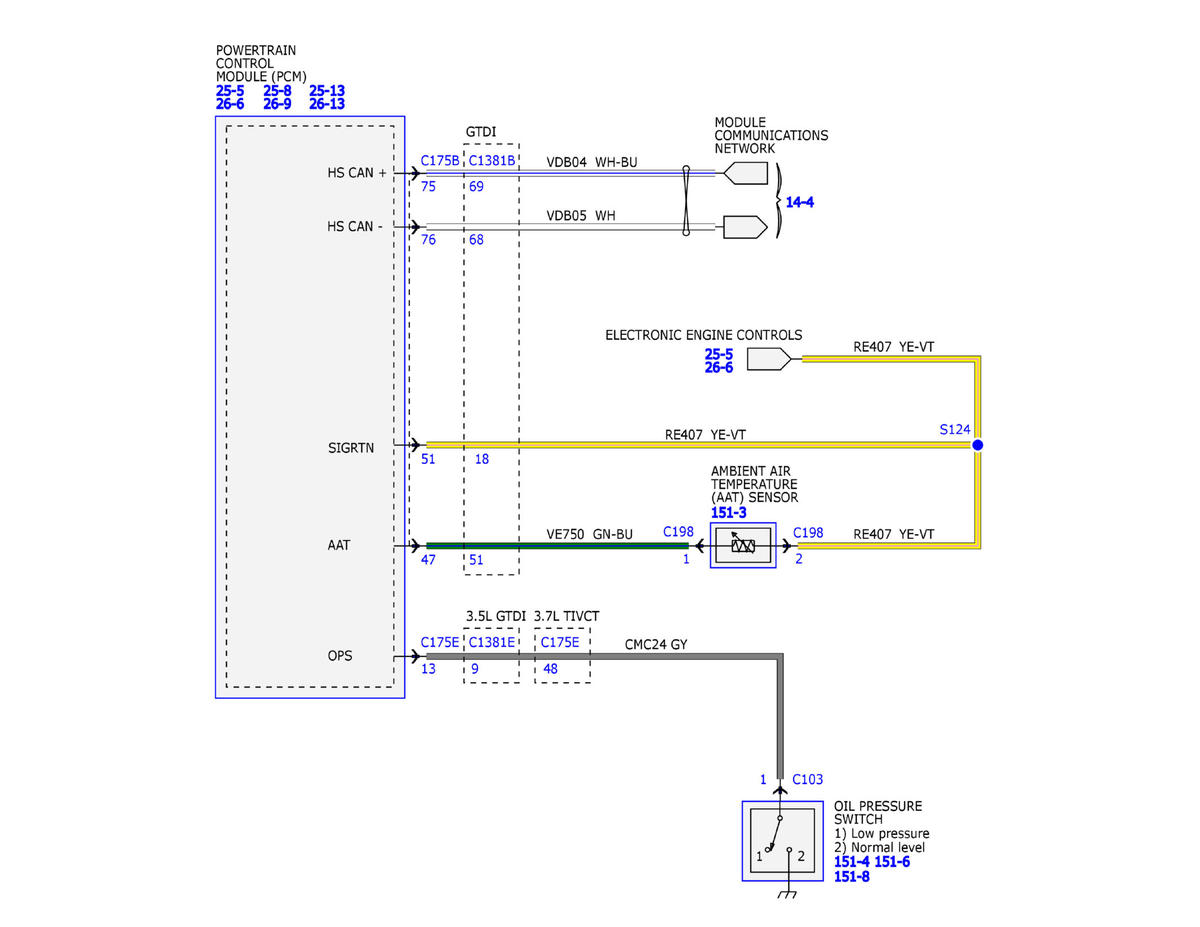

Fig 6: Instrument Cluster Wiring Diagrams (6 Of 6)
Courtesy of FORD MOTOR COMPANY
