Connector End View C604 - WINDOW CONTROL SWITCH, PASSENGER SIDE
Connector:C604
Description
WINDOW CONTROL SWITCH, PASSENGER SIDE
Color
Harness
14630
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | GD348 (BK-YE) | 20 | GROUND - PILLAR C OR QUARTER PANEL RIGHT | |
| 2 | * | * | Not Used | |
| 3 | CPW13 (BN-YE) | 20 | SWITCH - POWER WINDOW DRIVER # FRONT PASSENGER UP | |
| 4 | CPW12 (GN-OG) | 20 | SWITCH - POWER WINDOW DRIVER # FRONT PASSENGER DOWN | |
| 5 | * | * | Not Used | |
| 6 | CBP32 (GN-VT) | 20 | FUSE - 32 OR CIRCUIT BREAKER |

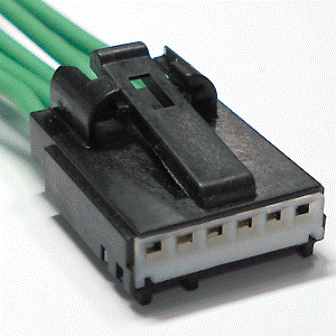

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1006 |
Service Part Number: 7U2Z-14S411-NB Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses Lamp - Dimmer Switch Module - Front Interface Switch - Adjustable Pedal Switch - Dimmer Switch - Dimmer (Instrument Panel) Switch - Message Center Switch - Power Window - Passenger (Front) |
