Turbocharger Oil Supply Tube - LH: Installation

• 1.

  Install the new turbocharger oil tube assembly O-ring seal. Lubricate the new turbocharger oil tube assembly O-ring seal with clean engine oil.

Courtesy of FORD MOTOR COMPANY

• 2.

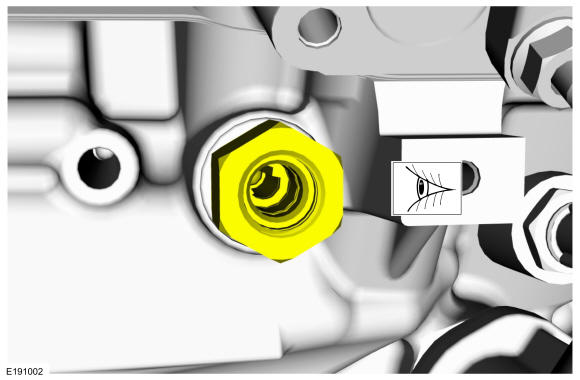

  Inspect the turbocharger oil supply tube-to-engine block fitting and replace as needed. Tighten to 48 Nm (35 lb-ft).

Courtesy of FORD MOTOR COMPANY

NOTE: Lubricate the cylinder block bore with clean engine oil.
• 3.

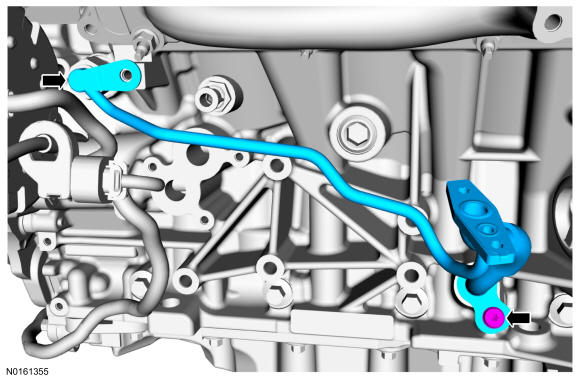

  Install the turbocharger oil tube assembly and install the turbocharger oil tube assembly lower bolt.
  • Tighten the turbocharger oil tube assembly lower bolt in the following 2 stages.
    • Tighten to 8 Nm (71 lb-in).
    • Tighten an additional 30 degrees.

Courtesy of FORD MOTOR COMPANY

• 4.

  Install the Turbocharger - LH, refer to Turbocharger - LH .
