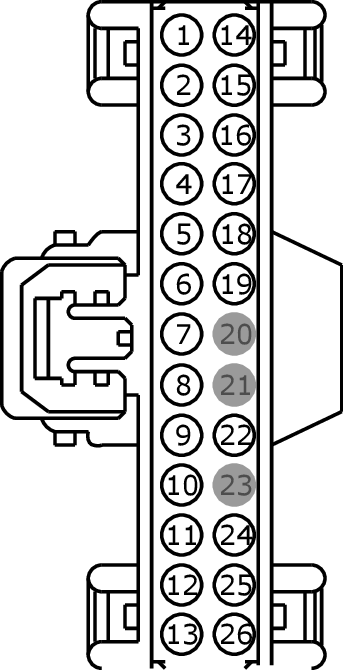

Connector End View C2414A - STEERING COLUMN CONTROL MODULE (SCCM)
Connector:C2414A
Description
STEERING COLUMN CONTROL MODULE (SCCM)
Color
BK
Harness
14401
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VDB04 (WH-BU) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | |
| 2 | GD375 (BK-BU) | 20 | GROUND - TUNNEL # 2ND POINT (BC3T) | |
| 3 | CLF19 (VT-GN) | 20 | SWITCH - AUTOLAMP (1) ON | |
| 4 | CLF24 (YE-BU) | 20 | SWITCH - HEADLAMP ON | |
| 5 | SBP23 (WH-RD) | 20 | FUSE - 23 OR CIRCUIT BREAKER | |
| 6 | CLS34 (GY) | 20 | SWITCH - PARK LAMPS | |
| 7 | CLF23 (WH-VT) | 20 | SWITCH - HEADLAMP OFF | |
| 8 | CLF21 (GY-VT) | 20 | SWITCH - FOG LAMPS FRONT | |
| 9 | CRH04 (VT-GN) | 20 | CTRL MOD. - RELAY HORN | |
| 10 | CET43 (GY) | 20 | SWITCH - TRANSMISSION SELECT SHIFT # UP (SST) | |
| 11 | CET42 (GN-VT) | 20 | SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST) | |
| 12 | RE407 (YE-VT) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN) | |
| 13 | CRW15 (BN-WH) | 20 | CTRL MOD. - FRONT WIPER HIGH | |
| 14 | VDB05 (WH) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | |
| 15 | RLN29 (WH-OG) | 20 | CTRL MOD. - DOME LAMP | |
| 16 | VDN05 (YE-GY) | 20 | CTRL MOD. - LIN BUS # STEERING WHEEL CONTROL MODULE 1 | |
| 17 | CLN56 (BN-VT) | 20 | DIMMER - IP/SWITCH ILLUMINATION # DIM DOWN | |
| 18 | CLN55 (YE-VT) | 20 | DIMMER - IP/SWITCH ILLUMINATION # DIM UP | |
| 19 | VLN36 (GY-OG) | 20 | SWITCH - DOME LAMP DEFEAT (DISABLE) (OVERRIDE) | |
| 20 | * | * | Not Used | |
| 21 | * | * | Not Used | |
| 22 | RPP06 (GN) | 20 | CTRL MOD. - SENSOR ADJUSTABLE PEDAL - | |
| 23 | * | * | Not Used | |
| 24 | VPP17 (VT-BN) | 20 | SENSOR - ADJUSTABLE STEERING COLUMN TELESCOPE (FORWARD/REARWARD) | |
| 25 | VPP08 (WH) | 20 | SENSOR - ADJUSTABLE STEERING COLUMN TILT (RAKE) | |
| 26 | LPP06 (YE-BU) | 20 | CTRL MOD. - SENSOR ADJUSTABLE PEDAL + |
