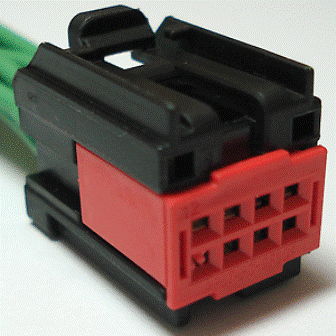

Connector End View C2065 - INSTRUMENT PANEL DIMMER SWITCH
Connector:C2065
Description
INSTRUMENT PANEL DIMMER SWITCH
Color
BK
Harness
14A320
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VLN04 (VT-GY) | 20 | CTRL MOD. - IP/SWITCH ILLUMINATION | |
| 2 | VLN36 (GY-OG) | 22 | SWITCH - DOME LAMP DEFEAT (DISABLE) (OVERRIDE) | |
| 3 | CLN55 (YE-VT) | 22 | DIMMER - IP/SWITCH ILLUMINATION # DIM UP | |
| 4 | RLN29 (WH-OG) | 22 | CTRL MOD. - DOME LAMP | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | CLN56 (BN-VT) | 22 | DIMMER - IP/SWITCH ILLUMINATION # DIM DOWN | |
| 8 | * | * | Not Used |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-995 |
Service Part Number: 3U2Z-14S411-BGB Gauge: 18 Pin material: Silver Cavities: 8 Vehicle Uses Lamp - Dimmer Switch Switch - 4x4 Control Switch - Adjustable Pedal Switch - Center Stack (Multipurpose) Switch - Dimmer Switch - Hazard Warning Switch - Moon Roof/Sun Roof Switch - Multifunction Switch - Multifunction (Wiper) Switch - Seat (3rd Row) Switch - Third Row Power Folding Seat Switch - Traction Control |
