Turbocharger Coolant Supply Tube - RH: Installation
- 4.

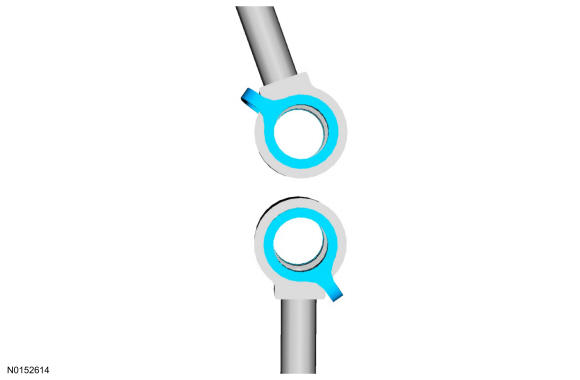

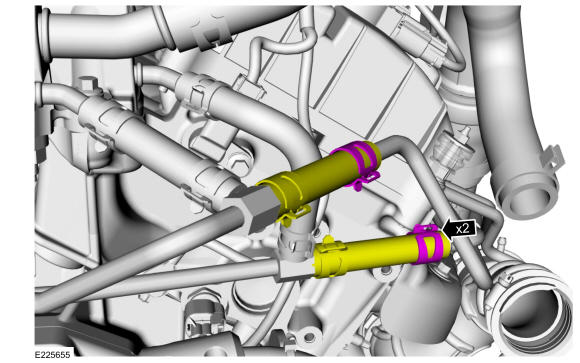

Connect the turbocharger coolant tubes, then install the new turbocharger coolant tube bolts finger tight at this stage.
- 6.

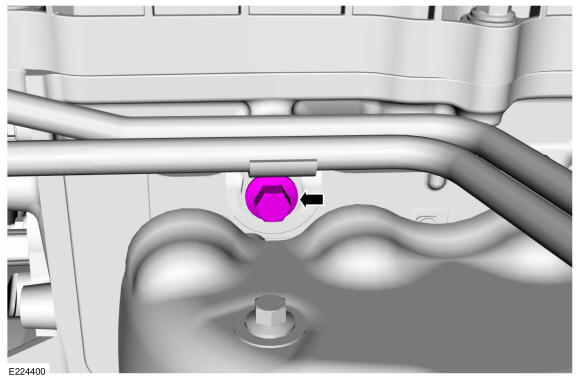

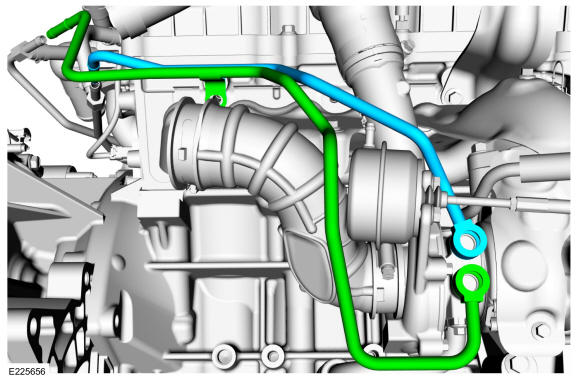

Install the turbocharger coolant tubes, then install and tighten the new coolant tube bolts in the following 2 stages.- Stage 1: Tighten to 12 Nm (106 lb-in).
- Stage 2: Tighten 60 degrees.
- 9.
- 1.

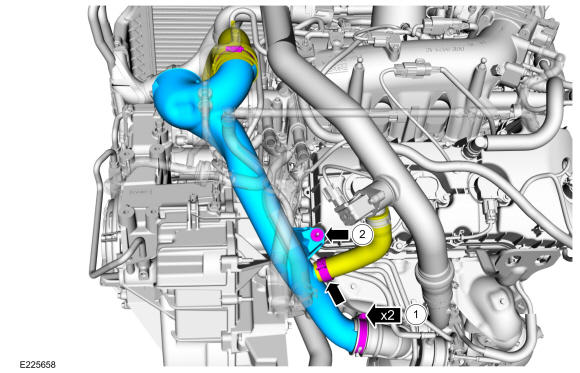

Install the turbocharger inlet tube and tighten the clamps.Tighten to 5 Nm (44 lb-in).
- 2.
Install and tighten the turbocharger inlet tube retaining nut.Tighten to 5 Nm (44 lb-in).

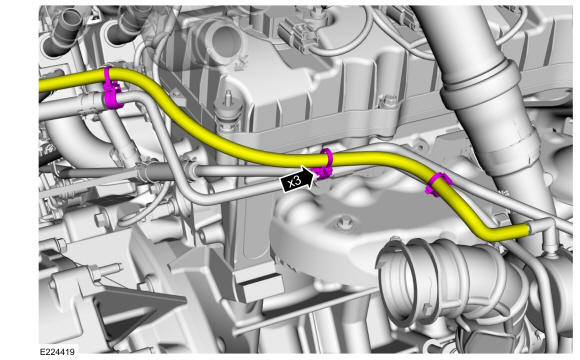

- Connect the turbocharger bypass hose and clamp.
- 1.
- 10.
Instal the air cleaner assembly and the air cleaner outlet tube. Refer to Intake Air Distribution and Filtering .
- 11.

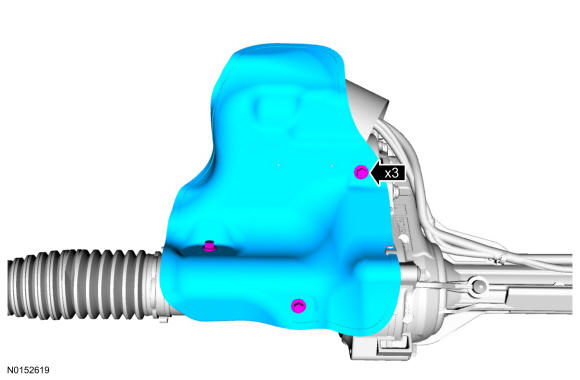

Install the steering gear heat shield and then install and tighten the steering gear heat shield retaining bolts.Tighten to 11 Nm (97 lb-in).
- 12.
Install the RH catalytic converter. Refer to Exhaust System .
- 13.
Fill the cooling system. Refer to Engine Cooling .
