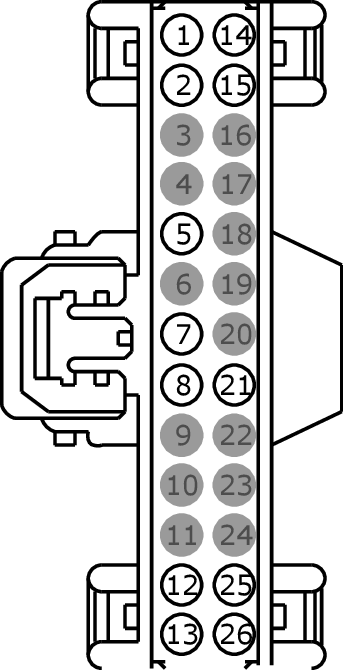

Connector End View C220 - INSTRUMENT PANEL CLUSTER (IPC)
Connector:C220
Description
INSTRUMENT PANEL CLUSTER (IPC)
Color
BK
Harness
14401
Base Part #
10849
Service Pigtail
Not Available
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | RMC33 (WH-VT) | 26 | CTRL MOD. - SENSOR FUEL LEVEL 2 | |
| 2 | RMC32 (GN-BU) | 22 | CTRL MOD. - SENSOR FUEL LEVEL | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | GD374 (BK-WH) | 22 | GROUND - TUNNEL (BC3T) | |
| 6 | * | * | Not Used | |
| 7 | CET52 (GN) | 22 | SWITCH - TRANSMISSION PARK DETECT | |
| 8 | CMC20 (VT) | 26 | SWITCH - LOW LEVEL WASHER FLUID | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | * | * | Not Used | |
| 12 | VDB04 (BU) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | |
| 13 | VDB05 (WH) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | |
| 14 | VMC23 (GN-OG) | 26 | SENSOR - FUEL LEVEL 2 (FLI) | |
| 15 | VMC11 (YE-VT) | 22 | SENSOR - FUEL LEVEL (FLI) | |
| 16 | * | * | Not Used | |
| 17 | * | * | Not Used | |
| 18 | * | * | Not Used | |
| 19 | * | * | Not Used | |
| 20 | * | * | Not Used | |
| 21 | SBP23 (WH-RD) | 22 | FUSE - 23 OR CIRCUIT BREAKER | |
| 22 | * | * | Not Used | |
| 23 | * | * | Not Used | |
| 24 | * | * | Not Used | |
| 25 | VDB13 (BU-GY) | 22 | CTRL MOD. - MULTIMEDIA CAN BUS HIGH | |
| 26 | VDB14 (VT-GY) | 22 | CTRL MOD. - MULTIMEDIA CAN BUS LOW |
