Brake Master Cylinder: Removal

WARNING: Before beginning any service procedure, refer to Safety Warnings
NOTE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.
NOTE: Removal steps in this procedure may contain installation instructions.

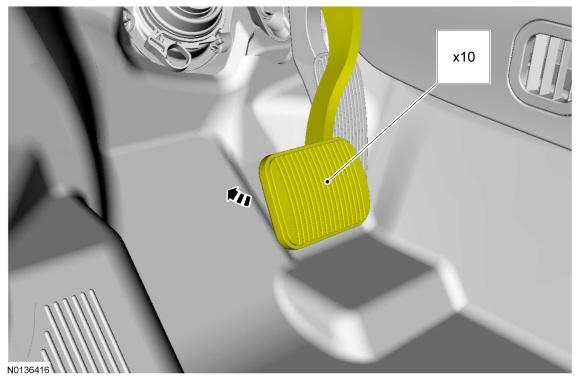

  1. 1.

GFD86973Courtesy of FORD MOTOR COMPANY

  1. 2.

    Remove the battery. For additional information, refer to Battery, Mounting and Cables .

  1. 3.

    Remove the air cleaner outlet pipe. For additional information, refer to Intake Air Distribution and Filtering .

  1. 4.

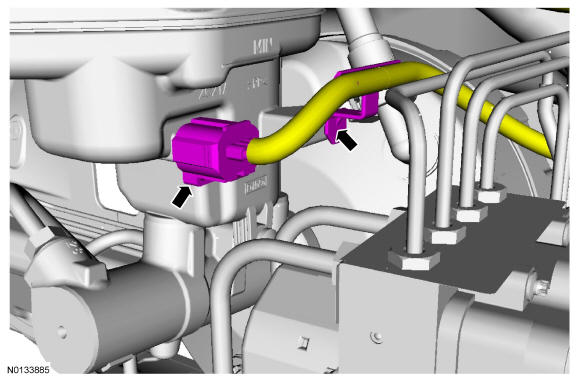

GFD87016Courtesy of FORD MOTOR COMPANY

  1. 5.

    NOTE: The brake tubes must be installed in the same position and orientation as removed.
    • Cap the brake tubes and plug the master cylinder ports.
    • To install, tighten to 23 Nm (17 lb-ft).

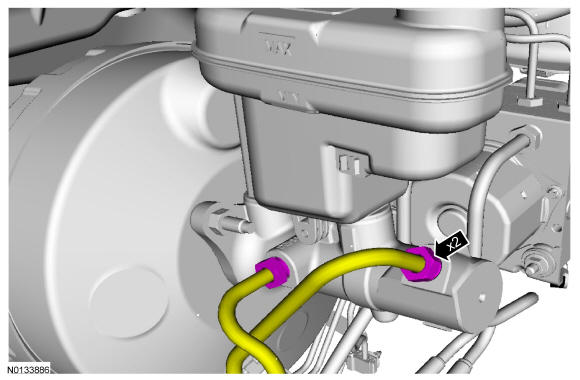

GFD87017Courtesy of FORD MOTOR COMPANY

  1. 6.

    NOTE: Make sure that the master cylinder-to-booster seal is removed with the master cylinder.

    Discard the specified component. Follow local disposal regulations.

    • To install, tighten the new nuts to 20 Nm (177 lb-in).

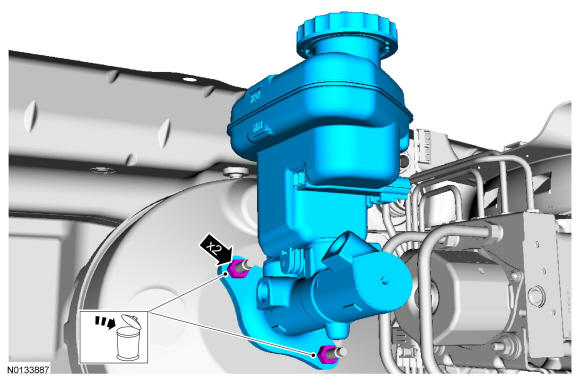

GFD87018Courtesy of FORD MOTOR COMPANY
