Instrument Cluster

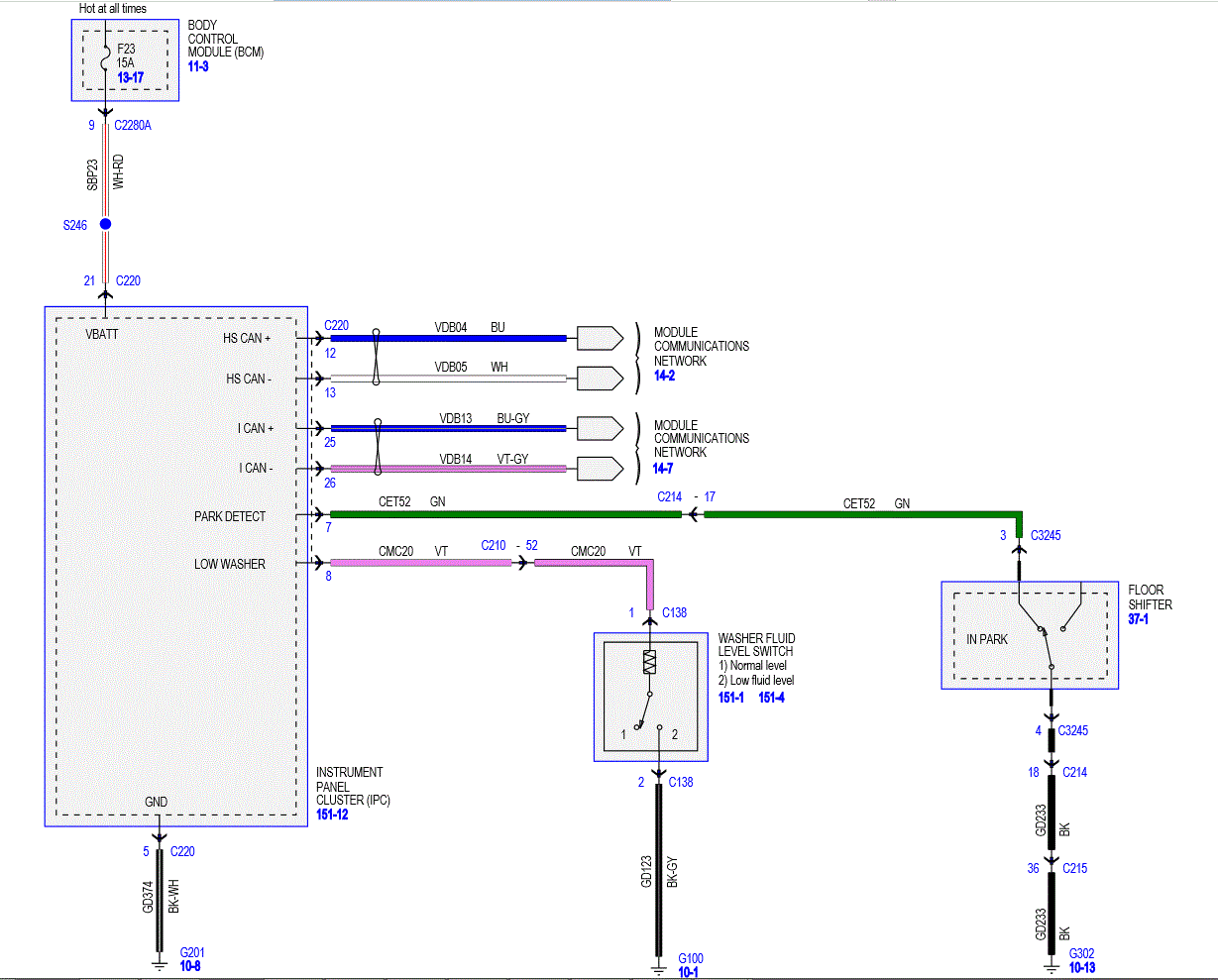

Fig 1: Instrument Cluster Wiring Diagram (1 Of 5)
GFDW34460Courtesy of FORD MOTOR COMPANY

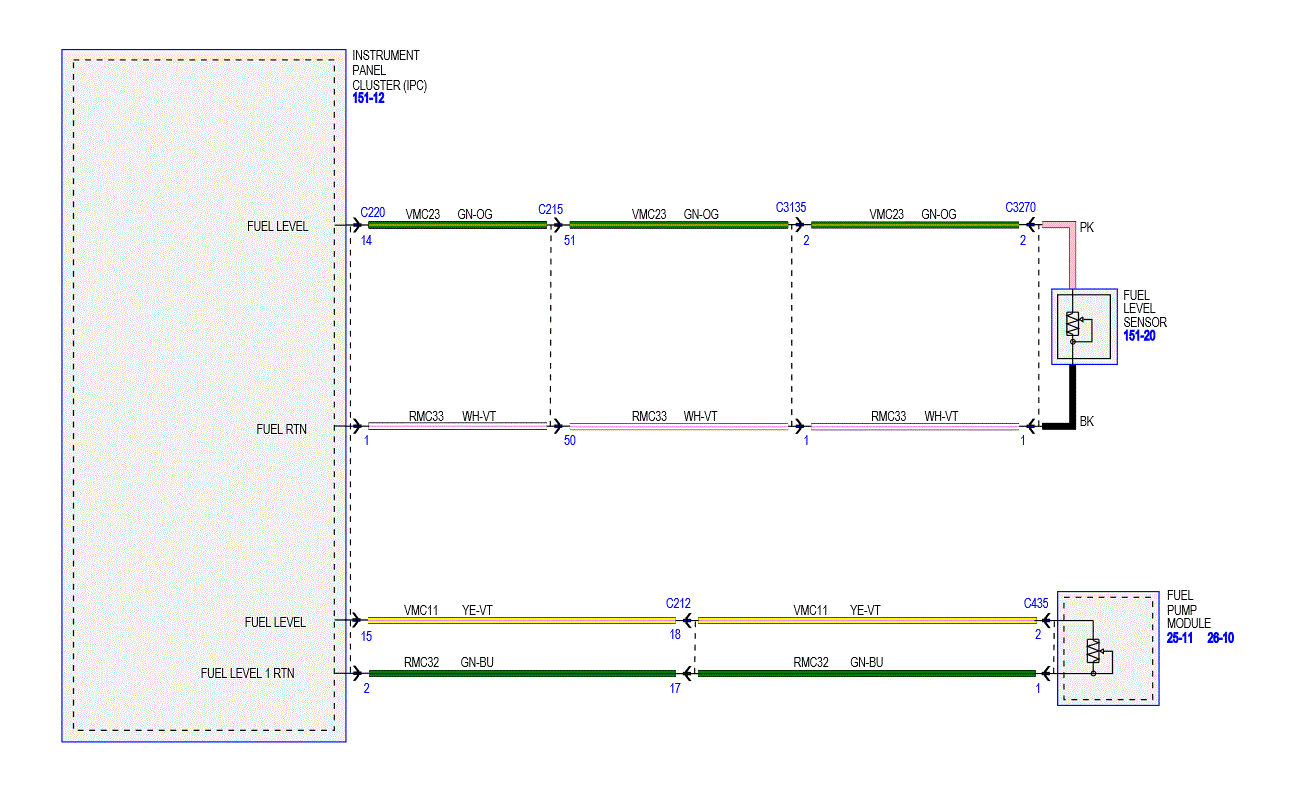

Fig 2: Instrument Cluster Wiring Diagram (2 Of 5)
GFDW34461Courtesy of FORD MOTOR COMPANY

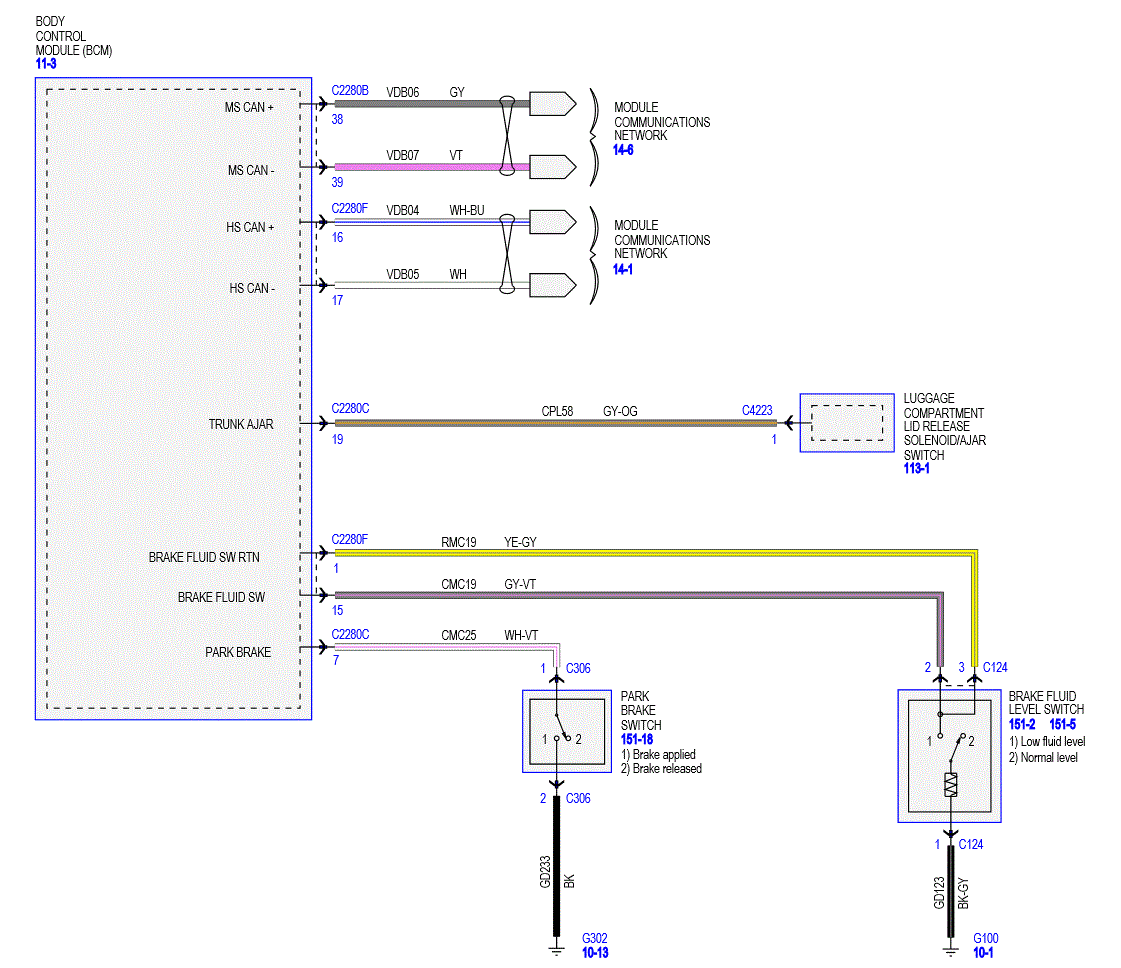

Fig 3: Instrument Cluster Wiring Diagram (3 Of 5)
GFDW34462Courtesy of FORD MOTOR COMPANY

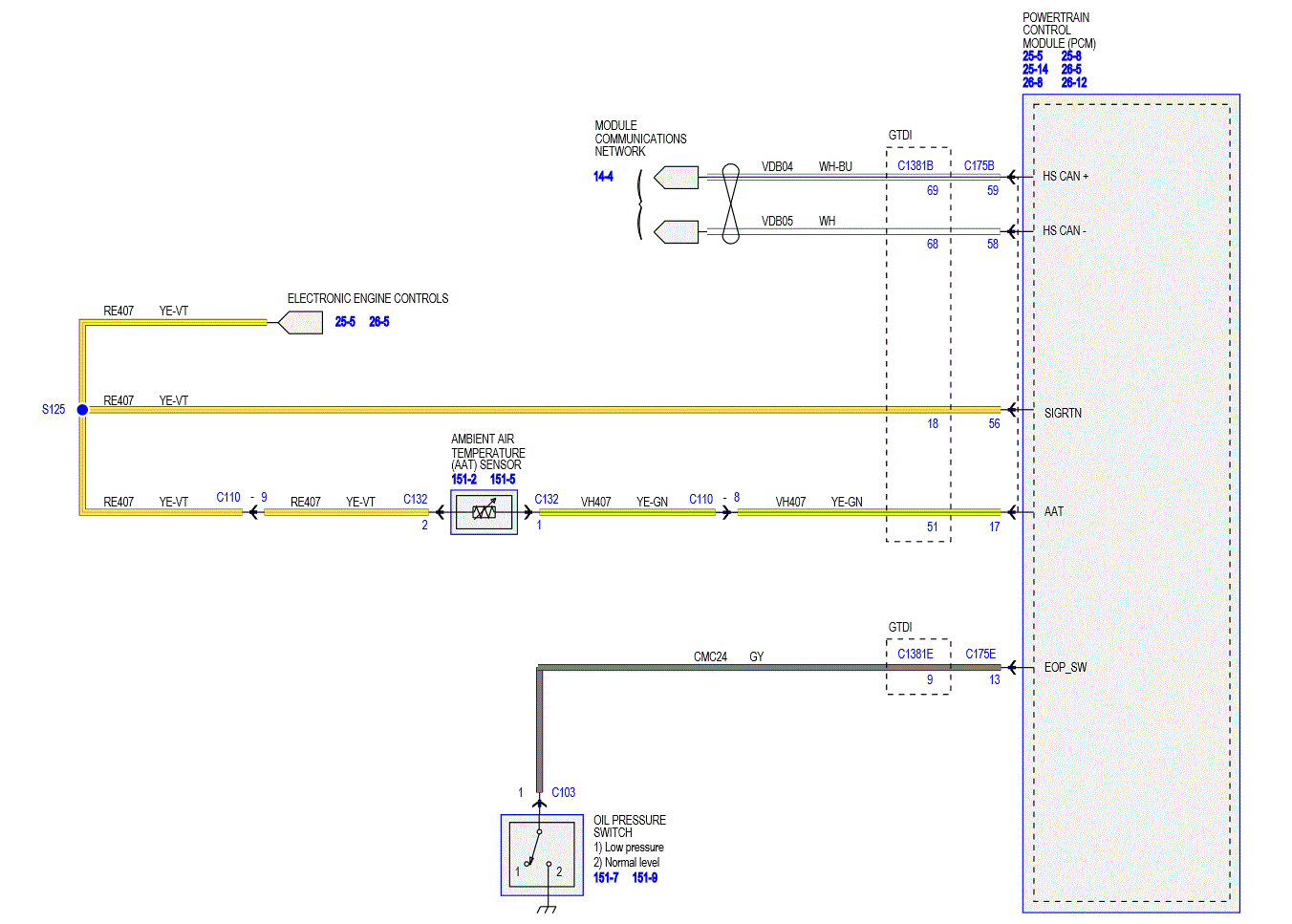

Fig 4: Instrument Cluster Wiring Diagram (4 Of 5)
GFDW34463Courtesy of FORD MOTOR COMPANY

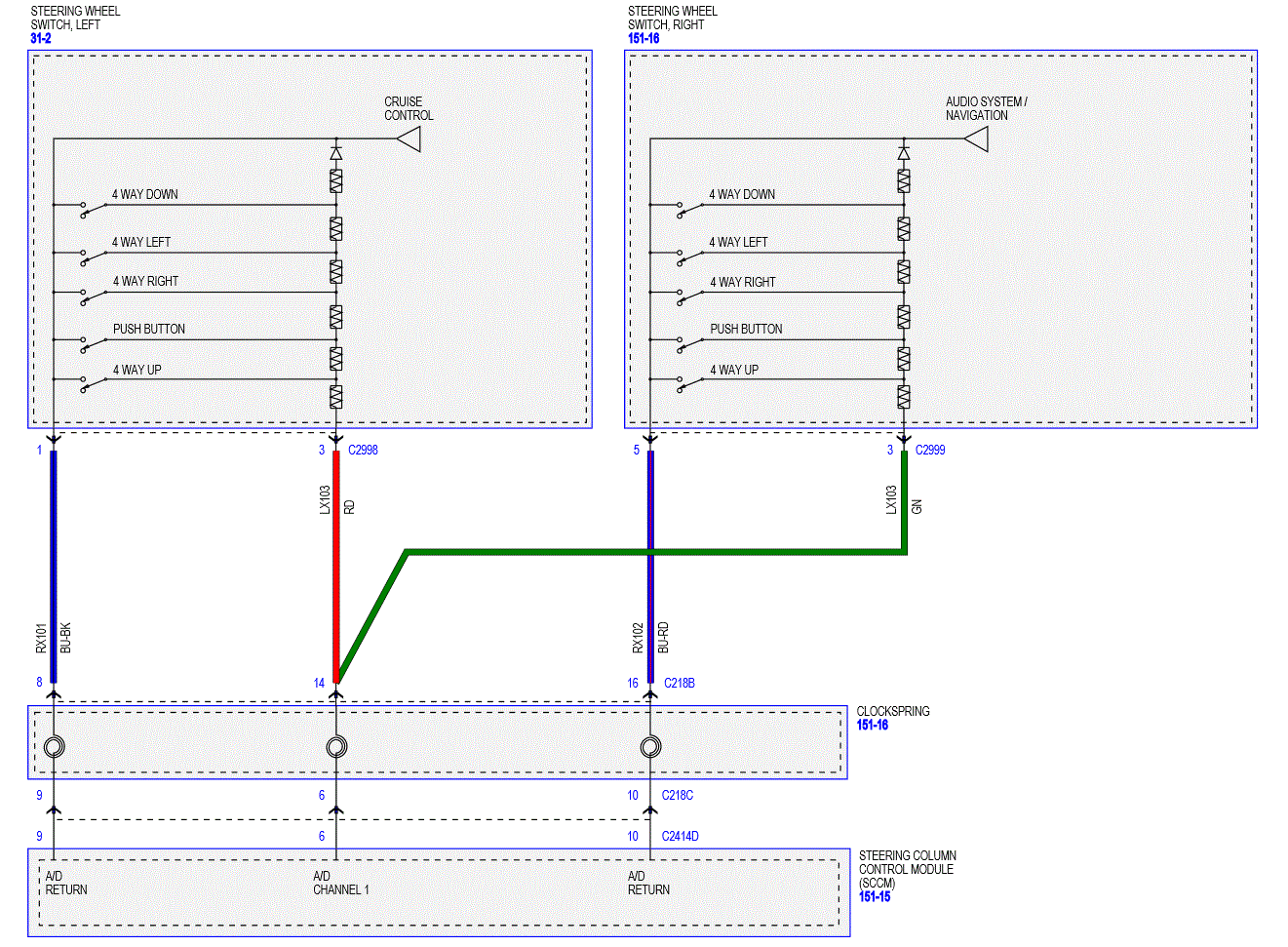

Fig 5: Instrument Cluster Wiring Diagram (5 Of 5)
GFDW34464Courtesy of FORD MOTOR COMPANY
