Power Transfer Unit (PTU): Installation

WARNING: This page is about a different variant/trim than selected.

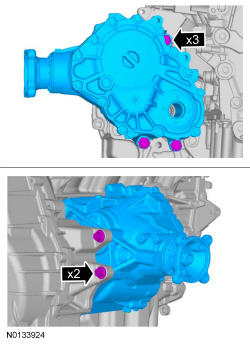

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

3.

NOTE: The PTU vent hose should be replaced whenever a new PTU is installed.

If equipped, connect the PTU vent hose.

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

5.

Install the exhaust flexible pipe and RH catalytic converter. Refer to Exhaust System .

6.

NOTE: A new PTU intermediate shaft seal must be installed whenever the intermediate shaft or PTU is removed from the vehicle. Refer to Intermediate Shaft Seal and Deflector .

Install the intermediate shaft. Refer to Front Drive Halfshafts .

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

9.

Fill the PTU, if necessary. The fluid must be even with the bottom of the fill opening.

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY
