Output Shaft Seal: Notes
WARNING: This page is about a different variant/trim than selected.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
Special Tool(s)
| Holding Fixture, Drive Pinion Flange 205-126 (T78P-4851-A) | |
| Installer, PTO Drive Gear Outer Oil Seal 308-430 | |
| Remover, Output Flange 307-523 |

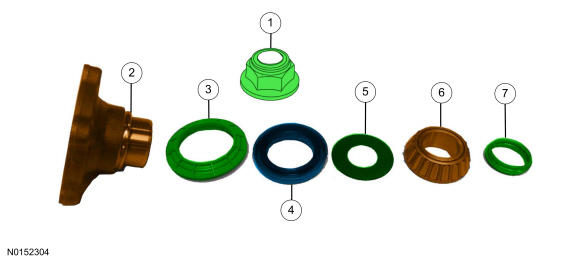

Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | 7275 | Pinion flange nut (part of 7275 kit) |
| 2 | 7B214 | Output pinion flange |
| 3 | 7B214 | Pinion flange dust deflector (part of 7B214) |
| 4 | 7275 | Output shaft seal (part of 7275 kit) |
| 5 | 7H421 | Oil slinger |
| 6 | 7H451 | Outer Pinion bearing |
| 7 | 7275 | Collapsible spacer (part of 7275 kit) |
