Axle Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

Rear Drive Unit (RDU) with stamped steel differential cover shown, RDU with aluminum cover similar.

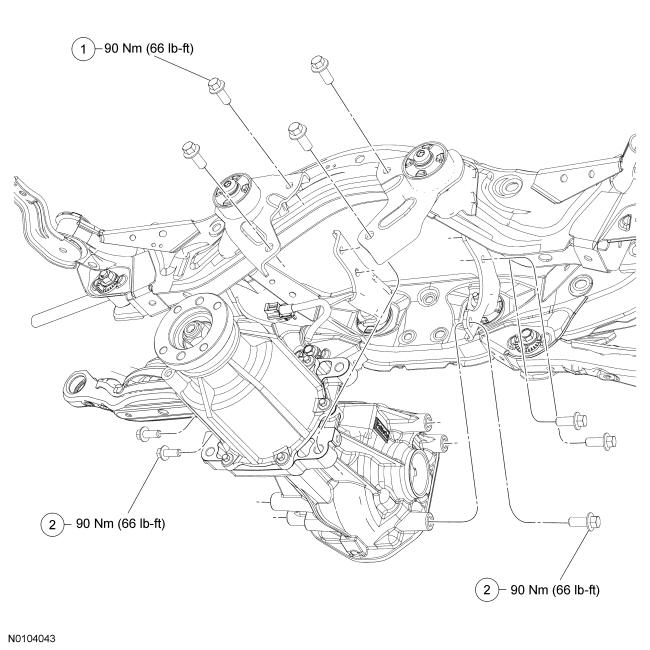

Fig 1: Rear Drive Unit Replacement Components With Torque Specifications

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	W506540	Differential housing-to-front insulator bracket bolt (4 required)
2	W500043	Side insulator bracket-to-rear axle housing bolts (5 or 6 required dependant on RDU style)
