Drive Pinion Seal: Installation
WARNING: This page is about a different variant/trim than selected.
- 1.NOTE: Make sure that the mating surface is clean before installing the new seal.
Using the Pinion Seal Replacer, install the drive pinion seal.
- 2.NOTE: Lubricate the pinion flange splines with grease.
Line up the index marks and position the pinion flange.
- 3.

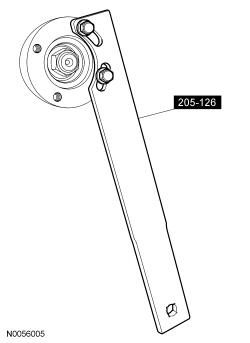

Using the Drive Pinion Flange Holding Fixture, install the new pinion flange nut.- Tighten to 244 Nm (180 lb-ft).
- 4.
Install the driveshaft. For additional information, refer to Driveshaft .
