All Wheel Drive (AWD)

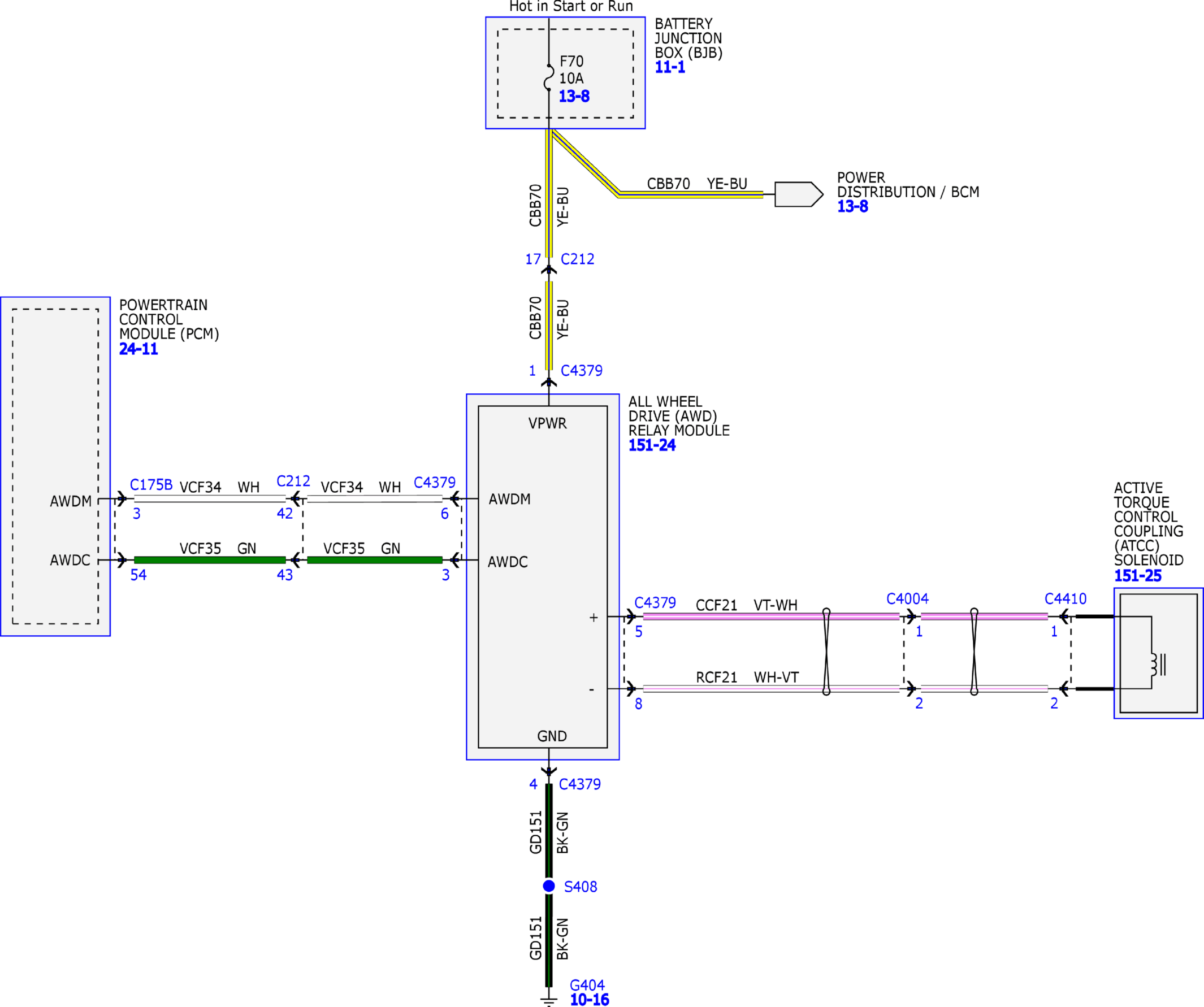

Fig 1: All Wheel Drive (AWD) Wiring Diagram

GFDW36643

Courtesy of FORD MOTOR COMPANY
