Connector End View C4379 - ALL WHEEL DRIVE (AWD) RELAY MODULE
Connector:C4379
Description
ALL WHEEL DRIVE (AWD) RELAY MODULE
Color
Harness
14A005
Base Part #
part# N/A
Service Pigtail
See Below

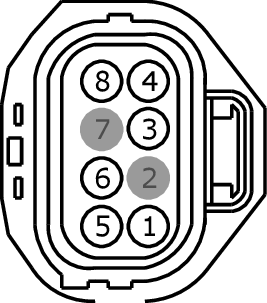

| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBB70 (YE-BU) | 20 | FUSE - 70 OR CIRCUIT BREAKER | |
| 2 | * | * | Not Used | |
| 3 | VCF35 (GN) | 20 | CTRL MOD. - POWERTRAIN # ALL WHEEL DRIVE COMMAND (AWDC) | |
| 4 | GD151 (BK-GN) | 20 | GROUND - PILLAR D RIGHT | |
| 5 | CCF21 (VT-WH) | 20 | CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE INTELLIGENT TORQUE CONTROL COUPLING SOLENOID | |
| 6 | VCF34 (WH) | 20 | CTRL MOD. - ALL WHEEL DRIVE # MONITOR (AWDM) | |
| 7 | * | * | Not Used | |
| 8 | RCF21 (WH-VT) | 20 | CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE INTELLIGENT TORQUE CONTROL COUPLING SOLENOID |
| Available Pigtail Kits | |

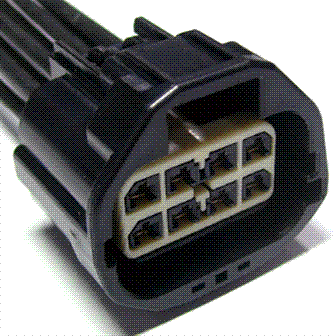

| Pigtail Kit Part Number WPT-1064 |
Service Part Number: AU2Z-14S411-ACA Gauge: 12 Pin material: Tin Cavities: 8 Vehicle Uses Module - All Wheel Drive |
