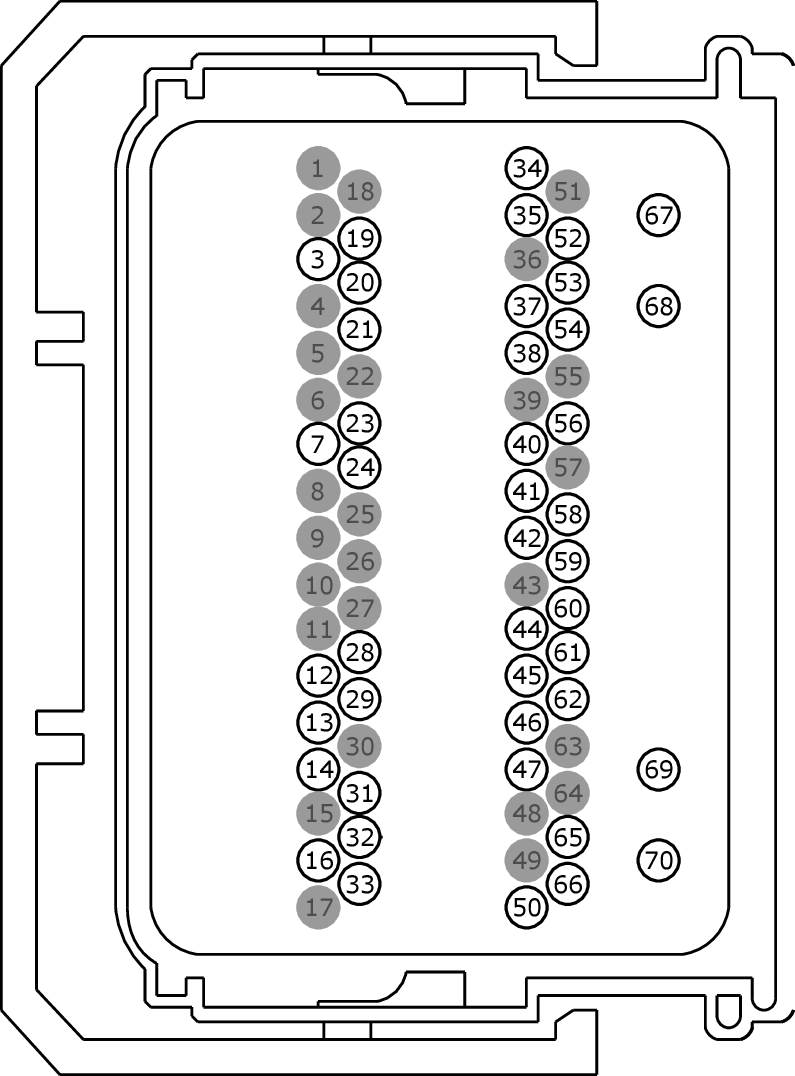

Connector End View C175B - POWERTRAIN CONTROL MODULE (PCM)
Connector:C175B
Description
POWERTRAIN CONTROL MODULE (PCM)
Color
Harness
14290
Base Part #
12A650
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | VCF34 (WH) | 20 | CTRL MOD. - ALL WHEEL DRIVE # MONITOR (AWDM) | |
| 4 | * | * | Not Used | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | CDC12 (YE) | 20 | CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC) | |
| 8 | * | * | Not Used | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | * | * | Not Used | |
| 12 | CH302 (WH-BN) | 20 | CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR) | |
| 13 | CCB08 (VT-WH) | 20 | SWITCH - BRAKE PEDAL POSITION (BPP) NORMAL OPEN | |
| 14 | CDC15 (VT) | 20 | GENERATOR (ALTERNATOR) # LOAD INPUT (GENLI) | |
| 15 | * | * | Not Used | |
| 16 | CDC35 (BU-WH) | 20 | SWITCH - IGNITION # START | |
| 17 | * | * | Not Used | |
| 18 | * | * | Not Used | |
| 19 | VE225 (YE-OG) | 20 | FUEL PUMP COMMAND (FPC) | |
| 20 | CE114 (GN-BU) | 20 | CTRL MOD. - POWERTRAIN # CANISTER VENT (CANV) | |
| 21 | CE608 (VT-GN) | 20 | RELAY - FUEL PUMP (INJPWRM) | |
| 22 | * | * | Not Used | |
| 23 | CET43 (GY) | 20 | SWITCH - TRANSMISSION SELECT SHIFT # UP (SST) | |
| 24 | CET42 (GN-VT) | 20 | SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST) | |
| 25 | * | * | Not Used | |
| 26 | * | * | Not Used | |
| 27 | * | * | Not Used | |
| 28 | VE701 (YE-OG) | 20 | SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1) | |
| 29 | VE702 (BU-WH) | 20 | SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2) | |
| 30 | * | * | Not Used | |
| 31 | VH433 (VT-OG) | 20 | TRANSDUCER - A/C PRESSURE (ACPT) | |
| 32 | VE518 (BN-WH) | 20 | MONITOR - FUEL PUMP (FPM) | |
| 33 | VDC61 (VT-GN) | 20 | SENSOR - BATTERY MONITORING SYSTEM # ALTERNATOR | |
| 34 | VEC03 (WH-BU) | 20 | CTRL MOD. - COOLING FAN CONTROL VARIABLE (FCV) | |
| 35 | CE436 (VT-OG) | 20 | CTRL MOD. -WAKE UP PCM | |
| 36 | * | * | Not Used | |
| 37 | CDC26 (GY-OG) | 20 | RELAY - STARTER INHIBIT | |
| 38 | CE237 (BN-WH) | 20 | CTRL MOD. - POWERTRAIN # HOLD PCM RELAY (PCMRC) | |
| 39 | * | * | Not Used | |
| 40 | VE807 (YE-VT) | 20 | SENSOR - MASS AIR FLOW LH BANK OR 1ST BANK OR UNIQUE (MAF) | |
| 41 | RE320 (BU) | 20 | CTRL MOD. - POWERTRAIN # MASS AIR FLOW SEN. LH BANK OR 1ST BANK (MAFRTN) | |
| 42 | CBB90 (YE-OG) | 20 | FUSE - 90 OR CIRCUIT BREAKER (ISP-R) | |
| 43 | * | * | Not Used | |
| 44 | RE136 (VT-GN) | 20 | CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APPRTN1) | |
| 45 | LE136 (GN-OG) | 20 | CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APPVREF1) | |
| 46 | CES09 (VT-OG) | 20 | SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) | |
| 47 | VE740 (VT-GY) | 20 | SENSOR - INTAKE AIR TEMPERATURE (IAT) | |
| 48 | * | * | Not Used | |
| 49 | * | * | Not Used | |
| 50 | GD124 (BK-VT) | 18 | GROUND - FENDER FRONT RIGHT # 2ND POINT (PWRGND) | |
| 51 | * | * | Not Used | |
| 52 | LE424 (YE-GN) | 20 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (VREF) | |
| 53 | CDC10 (BU-OG) | 20 | CTRL MOD. - POWERTRAIN # GENERATOR REGULATOR CONTROL (GENRC) | |
| 54 | VCF35 (GN) | 20 | CTRL MOD. - POWERTRAIN # ALL WHEEL DRIVE COMMAND (AWDC) | |
| 55 | * | * | Not Used | |
| 56 | RE407 (YE-VT) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN) | |
| 57 | * | * | Not Used | |
| 58 | VDB05 (WH) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | |
| 59 | VDB04 (WH-BU) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | |
| 60 | RE137 (YE-GN) | 20 | CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APPRTN2) | |
| 61 | LE137 (BU-GY) | 20 | CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APPVREF2) | |
| 62 | SBB86 (BN-RD) | 20 | FUSE - 86 OR CIRCUIT BREAKER (KAPWR) | |
| 63 | * | * | Not Used | |
| 64 | * | * | Not Used | |
| 65 | VE922 (VT-GN) | 20 | TRANSDUCER - FUEL TANK PRESSURE (FTP) | |
| 66 | LE230 (BN-BU) | 20 | CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER REF. VOLT. (VREF) | |
| 67 | CBB69 (WH-VT) | 20 | FUSE - 69 OR CIRCUIT BREAKER (VPWR) | |
| 68 | CBB69 (WH-VT) | 20 | FUSE - 69 OR CIRCUIT BREAKER (VPWR) | |
| 69 | GD124 (BK-VT) | 16 | GROUND - FENDER FRONT RIGHT # 2ND POINT (PWRGND) | |
| 70 | GD124 (BK-VT) | 16 | GROUND - FENDER FRONT RIGHT # 2ND POINT (PWRGND) |
