Console - Floor

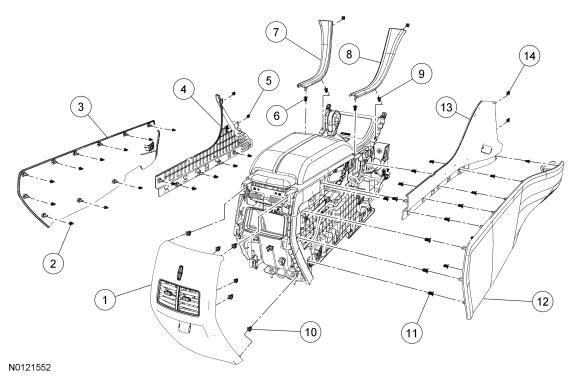

MKX Floor Console Finish Panels

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	78045E24	Floor console rear trim panel
2	W712427	LH lower floor console side trim panel clip (10 required)
3	7804609	LH lower floor console side trim panel
4	7804609	LH upper floor console side trim panel
5	W712427	LH upper floor console side trim panel clip (7 required)
6	W710338	LH upper finish moulding clip (5 required)
7	78061A17	LH upper finish moulding
8	78061A16	RH upper finish moulding
9	W710338	RH upper finish moulding clip (3 required)
10	W712427	Floor console rear trim panel clip (6 required)
11	W712427	Lower floor console side trim panel clip (10 required)
12	7804608	RH lower floor console side trim panel
13	7804608	RH upper floor console side trim panel
14	W712427	RH upper floor console side trim panel clip (7 required)

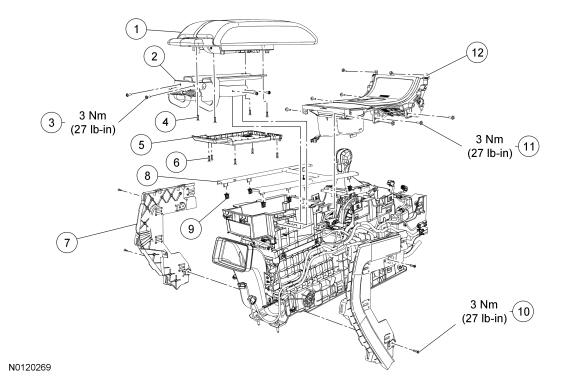

MKX Floor Console Trim Panels

Item	Part Number	Description
1	7806024	Arm rest
2	7804604	Arm rest hinge assembly
3	W790141	Arm rest hinge screw (6 required)
4	W790141	Arm rest flange screw (4 required)
5	7806024	Arm rest hinge flange cover
6	-	Arm rest hinge flange cover screw (6 required)
7	7804567	LH floor console side trim panel
8	7804609	Floor console H-panel
9	W712427	Floor console H-panel clip (7 required)
10	W790141	Floor console side trim panel screw (2 required)
11	W707628	Selector lever trim panel screw (8 required)
12	78045A76	Selector lever trim panel

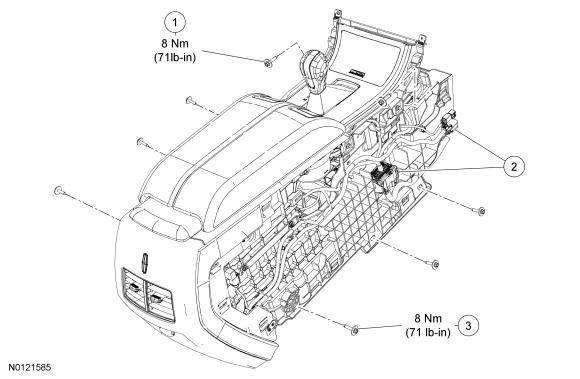

Floor Console Fasteners

Item	Part Number	Description
1	W706862	Floor console front bolt (2 required)
2	-	Floor console electrical connector (part of 14B079)
3	W706862	Floor console side bolt (6 required)

All vehicles

• 1.

  Apply the parking brake.

• 2.

  Position the selector lever to NEUTRAL.

• 3.

  Position the front seats to the full rearward and downward positions and fully recline the seat backs.

• 4.


  NOTE: MKX shown, Edge similar.

  Remove the LH and RH floor console finish mouldings.

Courtesy of FORD MOTOR COMPANY

MKX

• 5.

  Remove the floor console H-panel.

Courtesy of FORD MOTOR COMPANY

• 6.

  Pull the LH and RH lower floor console side trim panels outward to release the retaining clips separating the lower side trim panel from the console and the upper side trim panel.

• 7.


  NOTE: Right side shown, left side similar.

  Remove the LH upper floor console side trim panel.

Courtesy of FORD MOTOR COMPANY

• 8.

  Remove the upper RH floor console side trim panel. Disconnect the power point electrical connector.

• 9.


  NOTE: Damage to the floor console rear trim panels may occur if cardboard is not used to remove the lower floor console side trim panels.
  NOTE: The RH lower floor console side panel shown, LH lower floor console side trim panel similar.

  Position a piece of cardboard between the LH and RH lower floor console side trim panels and the floor console.

Courtesy of FORD MOTOR COMPANY

• 10.

  Remove the RH and LH lower floor console side trim panel and cardboard simultaneously.

• 11.

  Remove the 8 selector lever trim panel screws.

Courtesy of FORD MOTOR COMPANY

• 12.

  Disconnect the 4 electrical connectors.

• 13.

  Disengage the selector lever boot tabs from the trim panel.

• 14.

  Remove the selector lever trim panel.

Courtesy of FORD MOTOR COMPANY

All vehicles

• 15.

  Disconnect the selector lever cable from the selector lever.

Courtesy of FORD MOTOR COMPANY

• 16.

  Remove the selector cable from the selector lever cable bracket.
  • Release the 2 selector cable retaining tabs and pull the selector lever upward.

Courtesy of FORD MOTOR COMPANY

• 17.

  Disconnect the 3 electrical connectors and the 1 pin type retainers from the console.

Courtesy of FORD MOTOR COMPANY

• 18.

  Remove the 8 floor console bolts.
  • Pull the console rearward from the instrument panel then upward to remove.
  • To install, tighten to 8 Nm (71 lb-in).

Courtesy of FORD MOTOR COMPANY

• 19.

  To install, reverse the removal procedure.
