Brake Master Cylinder: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
Material
| Item | Specification |
| Motorcraft ® High Performance DOT 3 Motor Vehicle Brake Fluid (US) / Motorcraft ® Brake Fluid - Heavy Duty DOT 3 (Canada)PM-1-C (US); CPM-1-C (Canada) | WSS-M6C65-A1 |

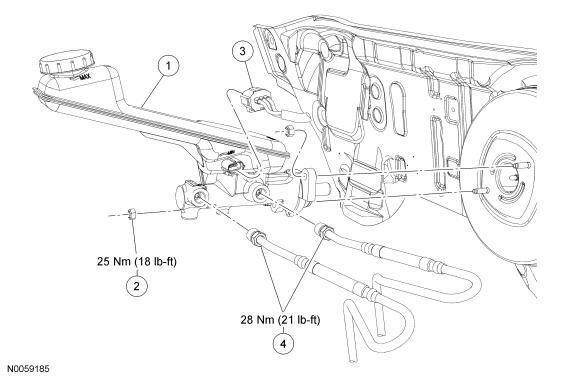

| Item | Part Number | Description |
|---|---|---|
| 1 | 2B195 | Brake master cylinder and reservoir assembly |
| 2 | W520011 | Brake master cylinder nut (2 required) |
| 3 | - | Brake fluid level switch electrical connector (part of 14A290) |
| 4 | 2A335 RH/ 2286 LH RH/ 2286 LH | Master cylinder brake tube fittings |
