Console - Overhead

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

Courtesy of FORD MOTOR COMPANY

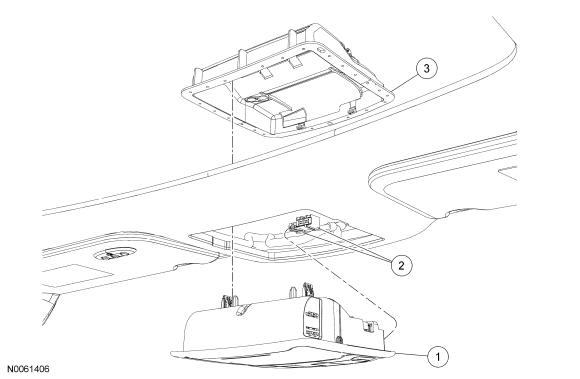

Item	Part Number	Description
1	519A70	Overhead console
2	-	Overhead console electrical connectors
3	519K22	Overhead console bracket

1.

Remove the overhead console.
- Pull downward on the overhead console.
- Disconnect the electrical connectors.
