Shift Interlock

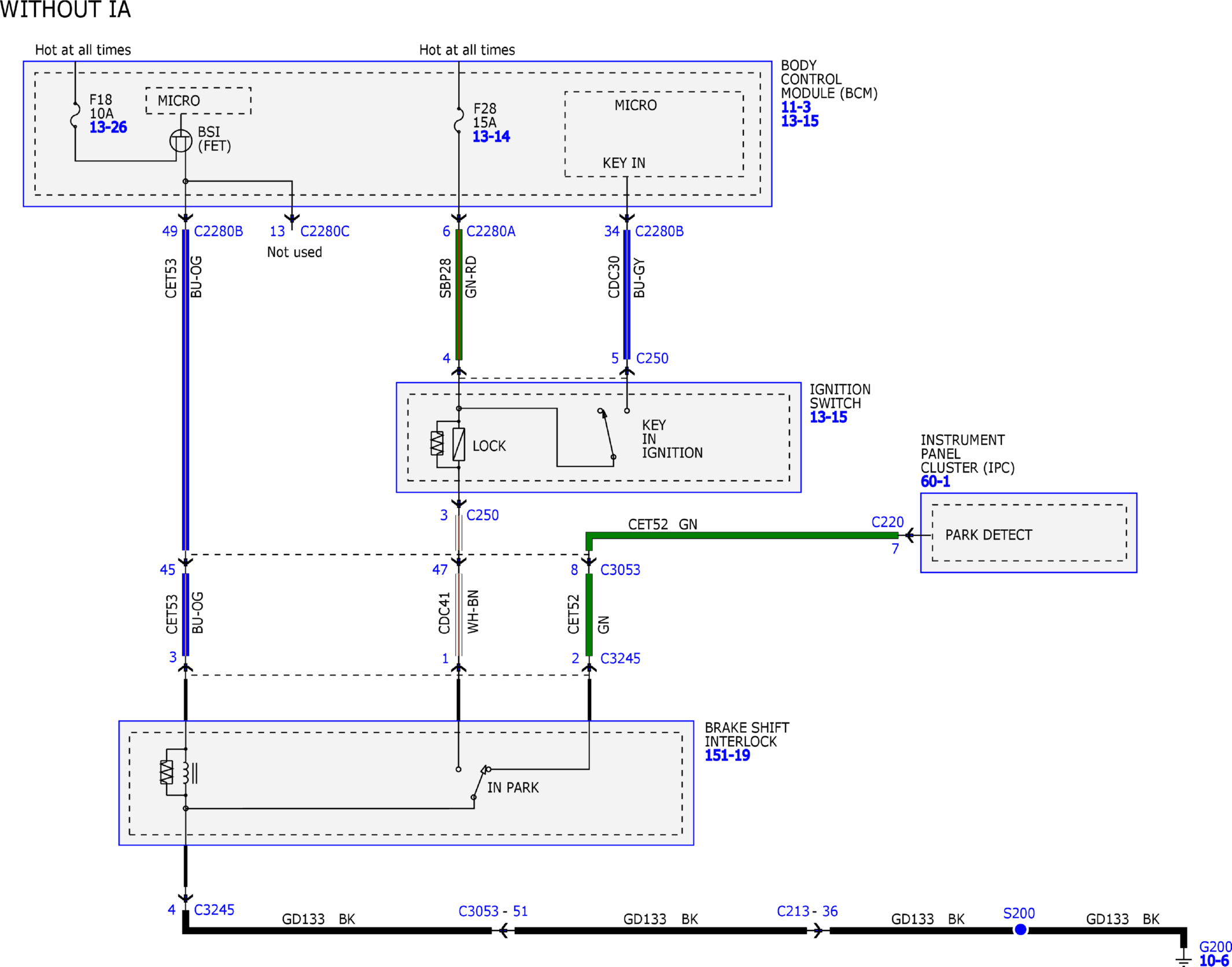

Fig 1: Shift Interlock Wiring Diagram (1 of 4)
GFDW36838Courtesy of FORD MOTOR COMPANY

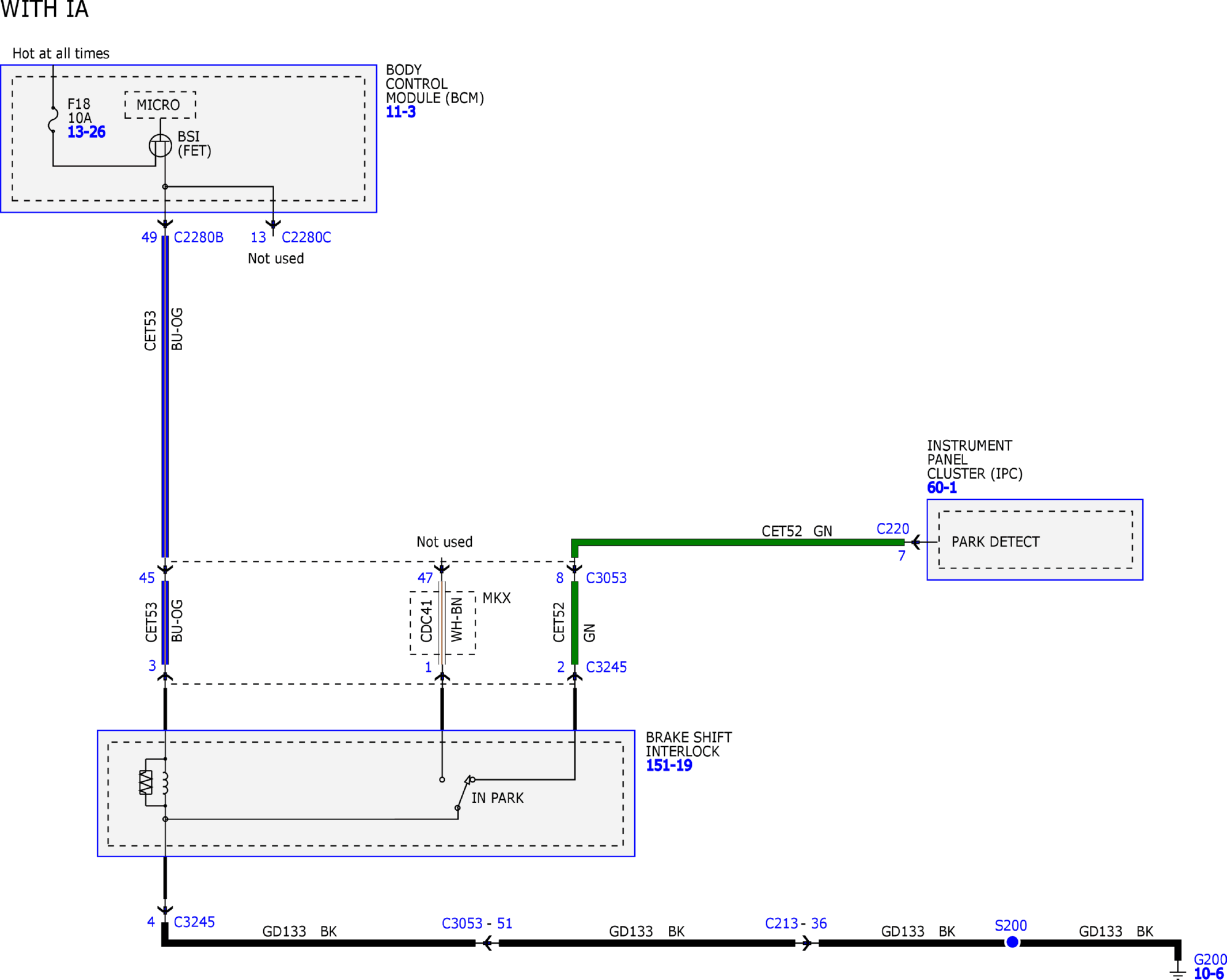

Fig 2: Shift Interlock Wiring Diagram (2 of 4)
GFDW36839Courtesy of FORD MOTOR COMPANY

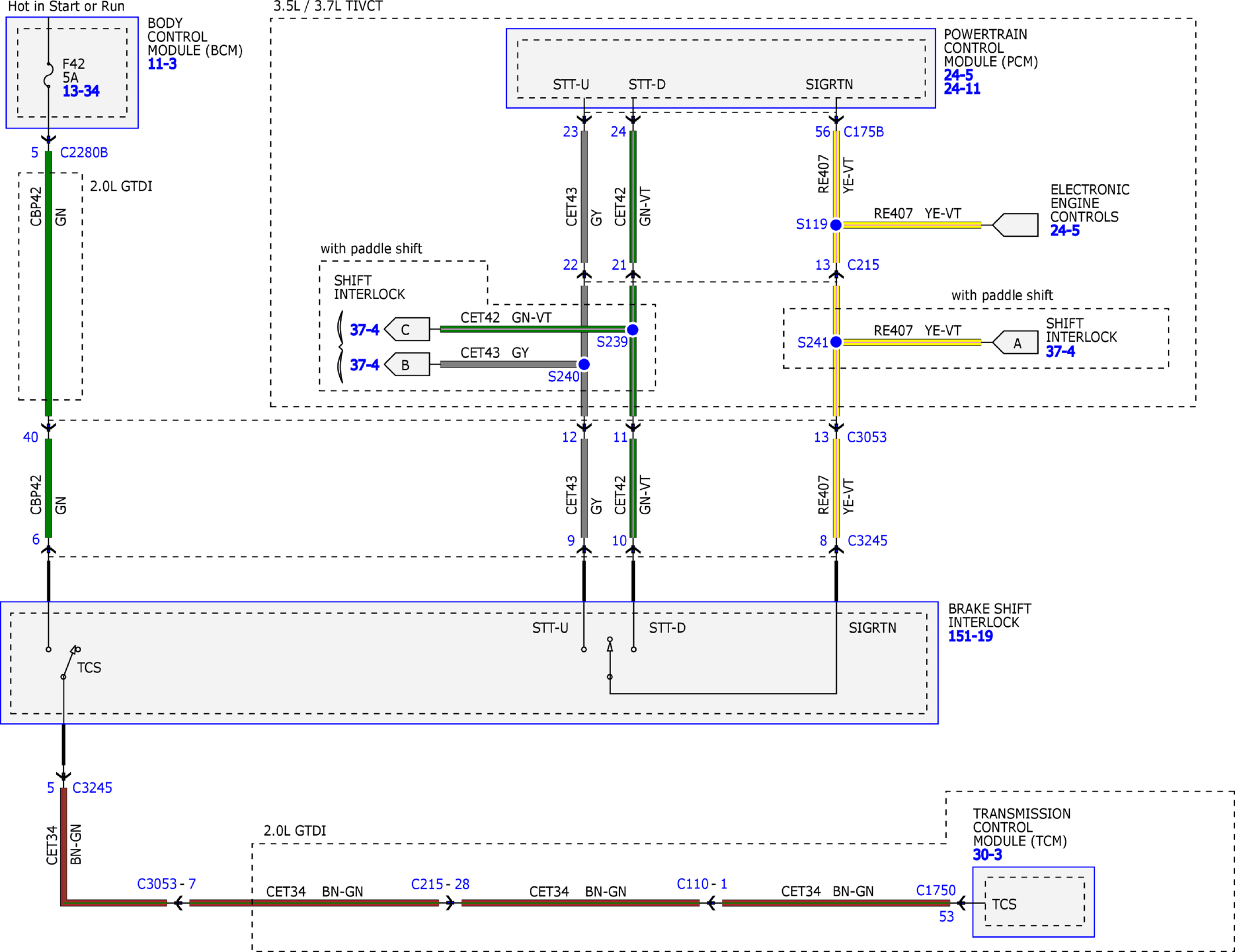

Fig 3: Shift Interlock Wiring Diagram (3 of 4)
GFDW36840Courtesy of FORD MOTOR COMPANY

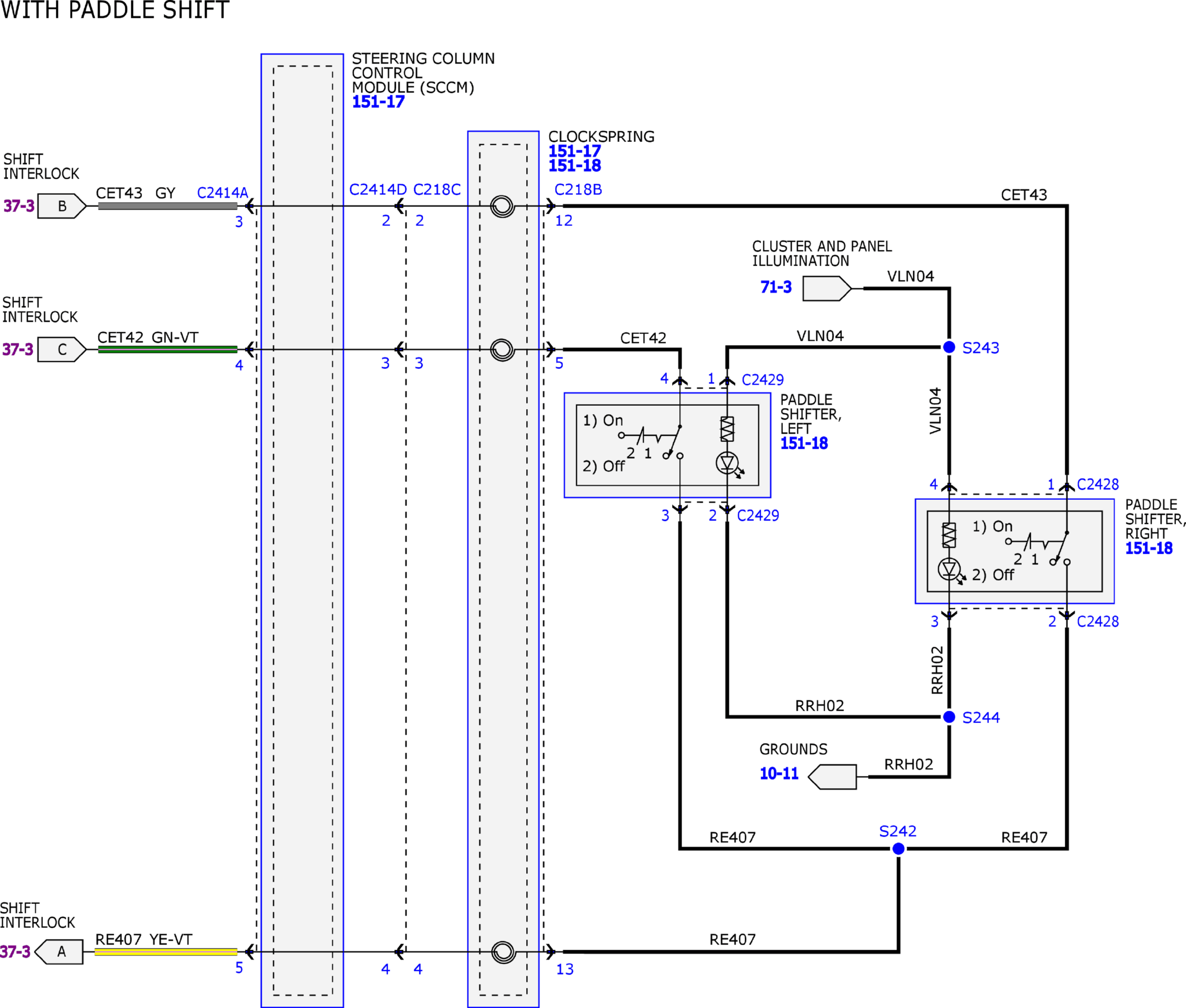

Fig 4: Shift Interlock Wiring Diagram (4 of 4)
GFDW36841Courtesy of FORD MOTOR COMPANY
