Instrument Cluster

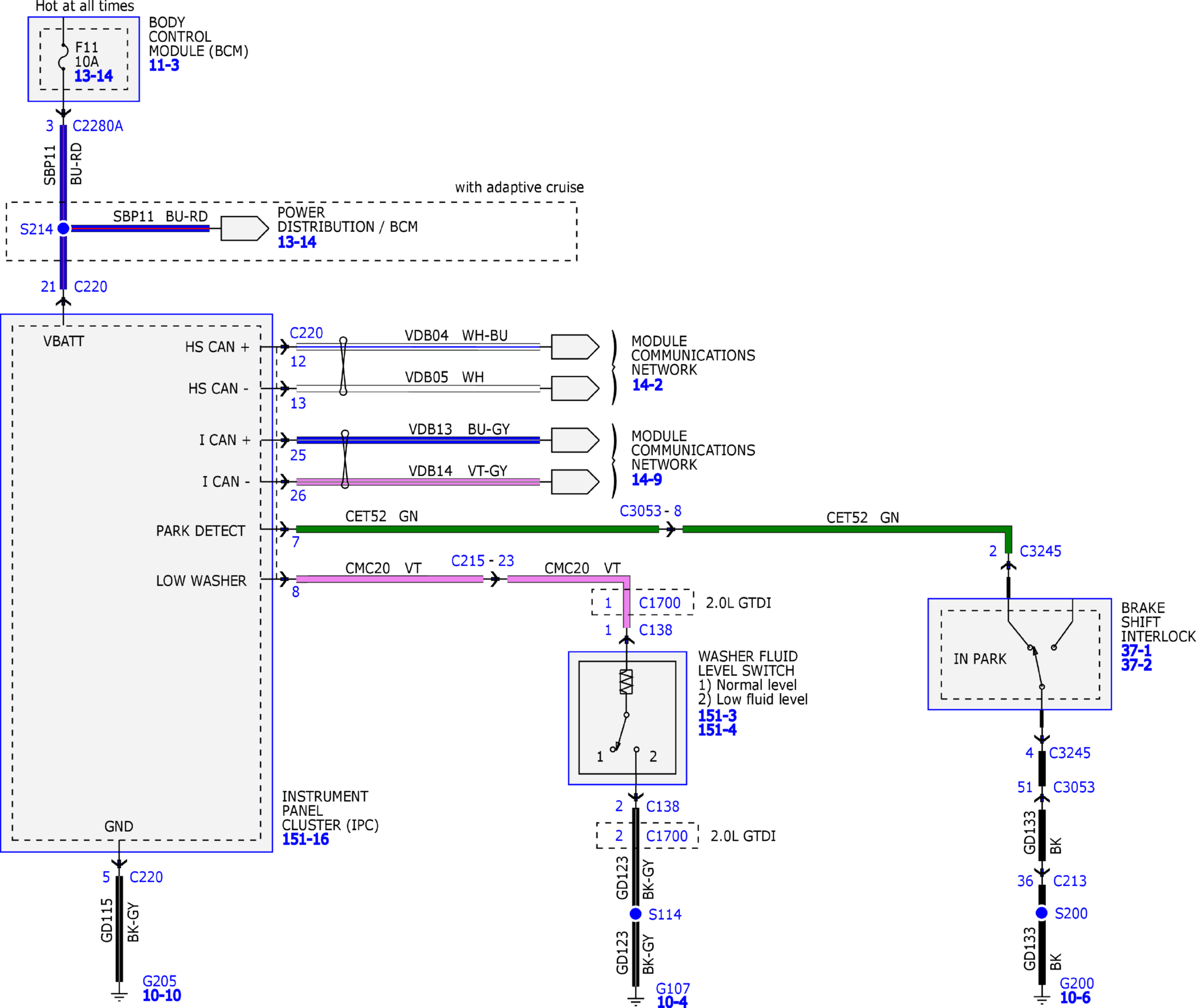

Fig 1: Instrument Cluster Wiring Diagram (1 of 5)
GFDW36721Courtesy of FORD MOTOR COMPANY

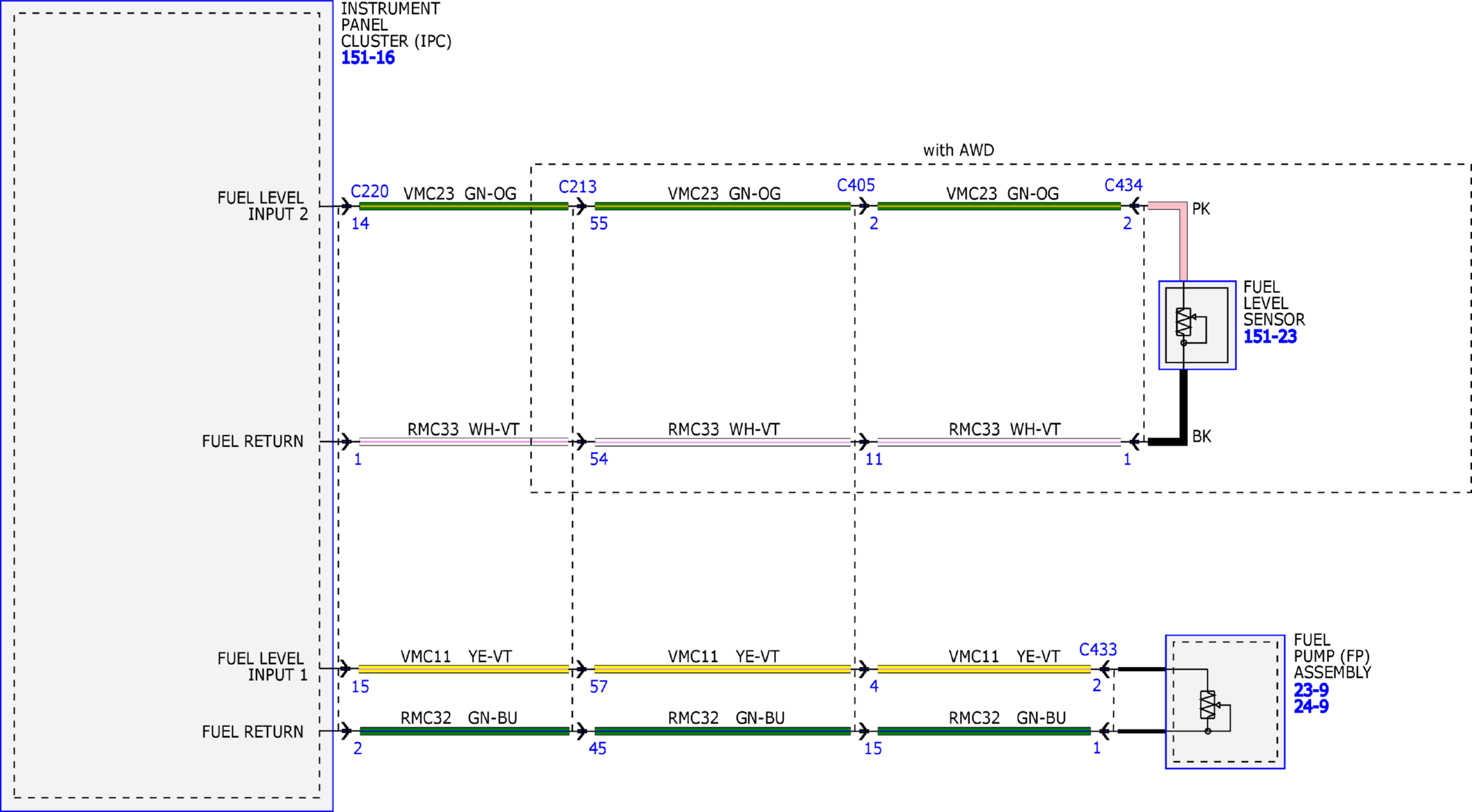

Fig 2: Instrument Cluster Wiring Diagram (2 of 5)
GFDW36722Courtesy of FORD MOTOR COMPANY

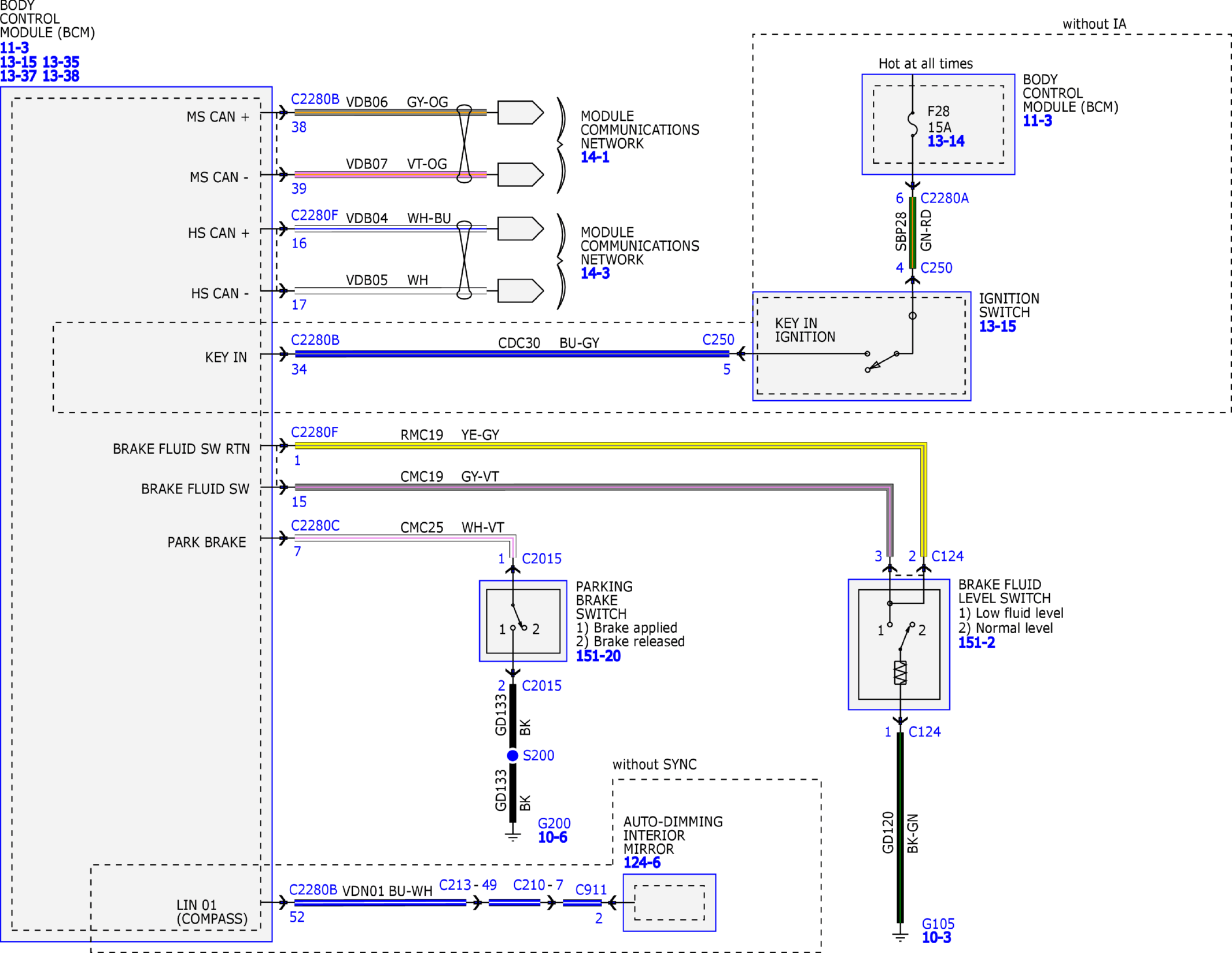

Fig 3: Instrument Cluster Wiring Diagram (3 of 5)
GFDW36723Courtesy of FORD MOTOR COMPANY

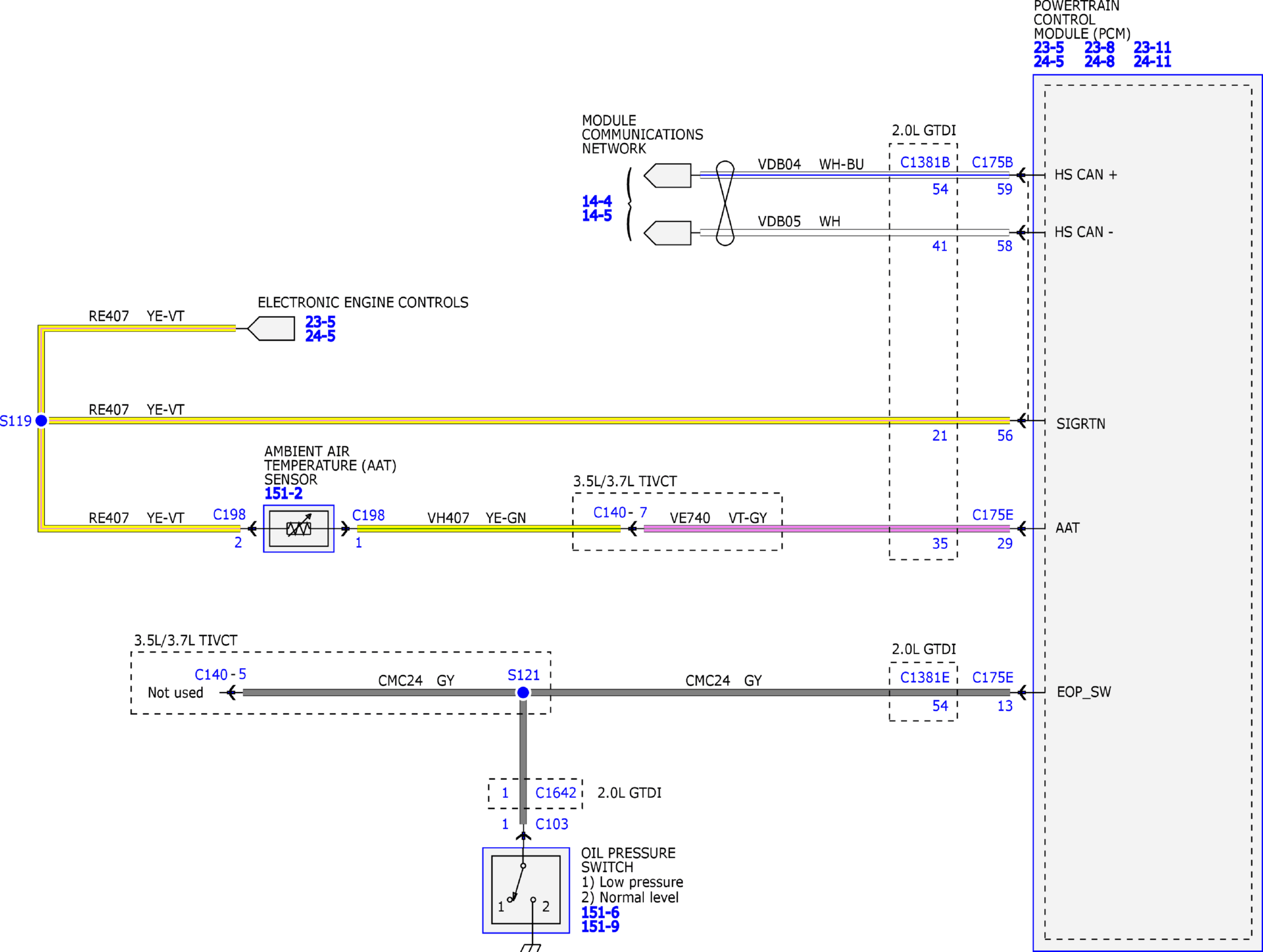

Fig 4: Instrument Cluster Wiring Diagram (4 of 5)
GFDW36724Courtesy of FORD MOTOR COMPANY

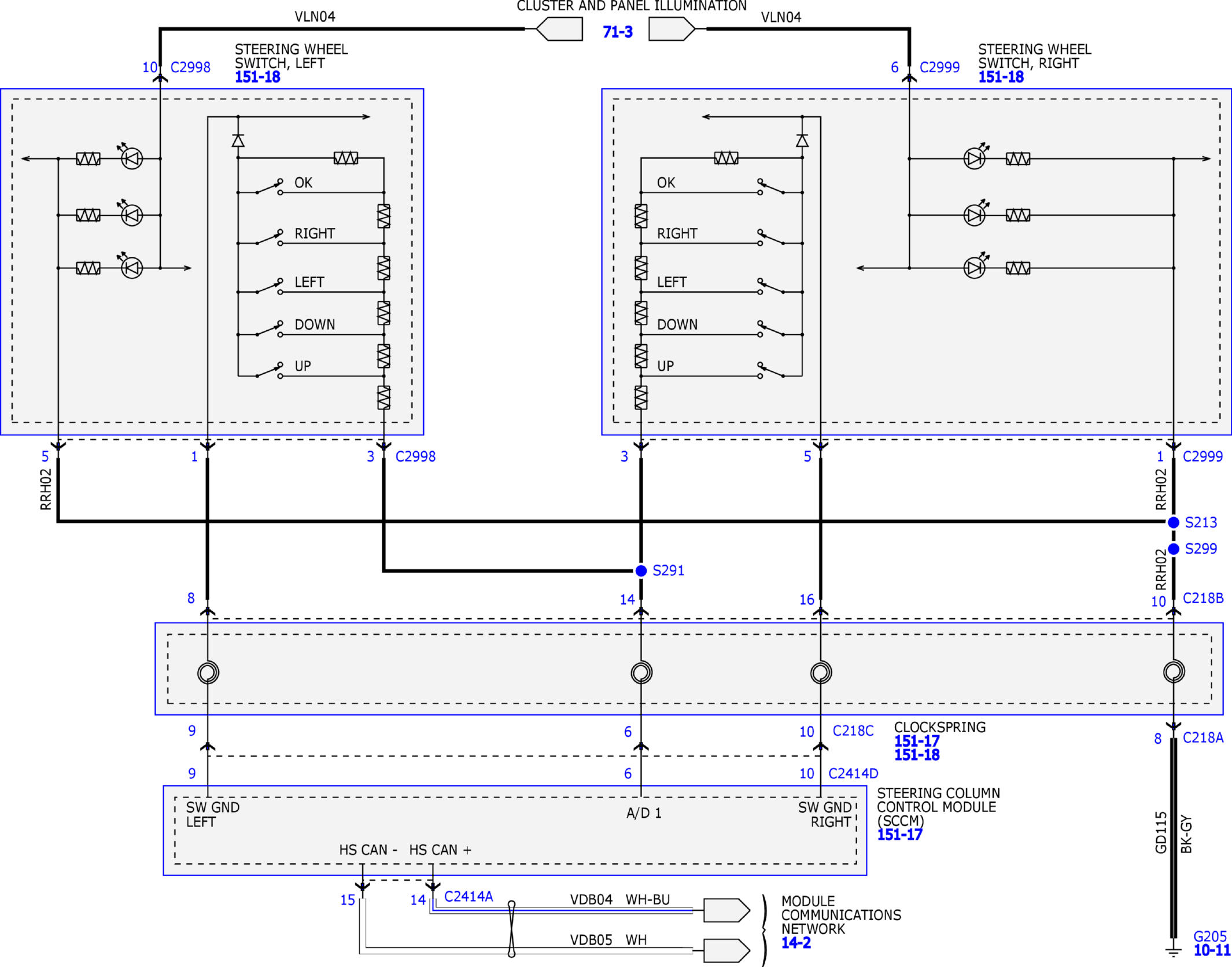

Fig 5: Instrument Cluster Wiring Diagram (5 of 5)
GFDW36725Courtesy of FORD MOTOR COMPANY
