Cluster And Panel Illumination

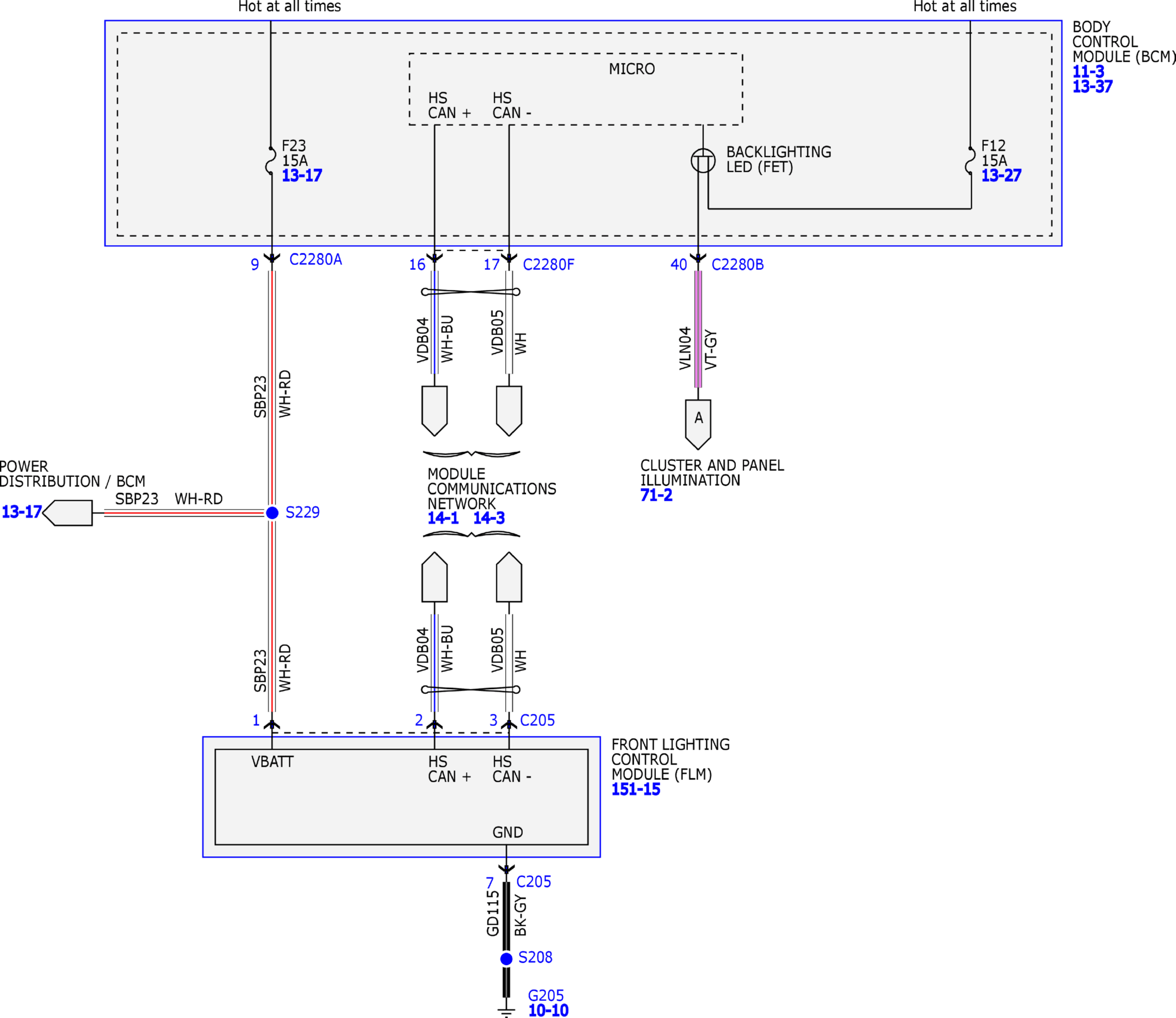

Fig 1: Cluster and Panel Illumination Wiring Diagram (1 of 6)
GFDW36675Courtesy of FORD MOTOR COMPANY

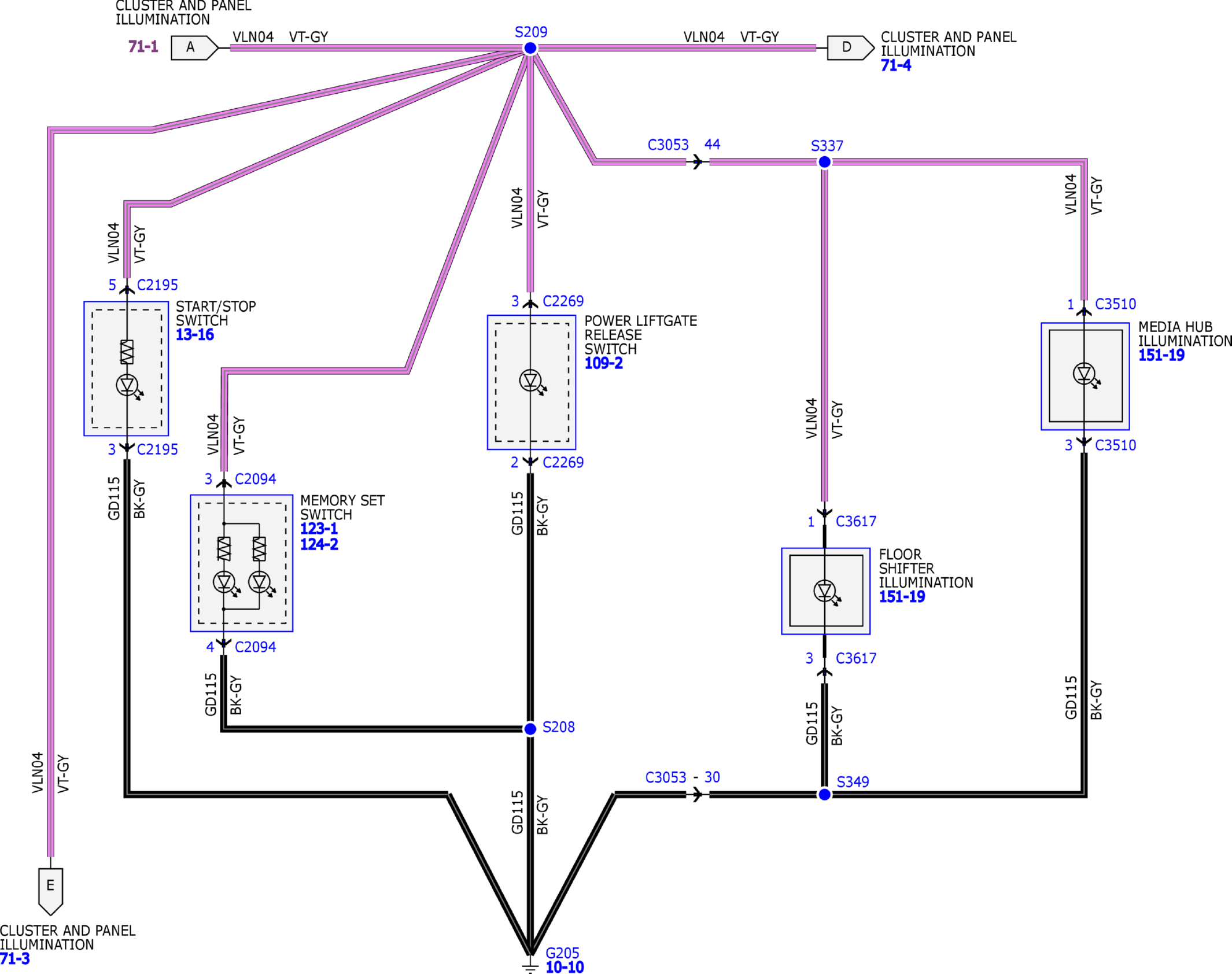

Fig 2: Cluster and Panel Illumination Wiring Diagram (2 of 6)
GFDW36676Courtesy of FORD MOTOR COMPANY

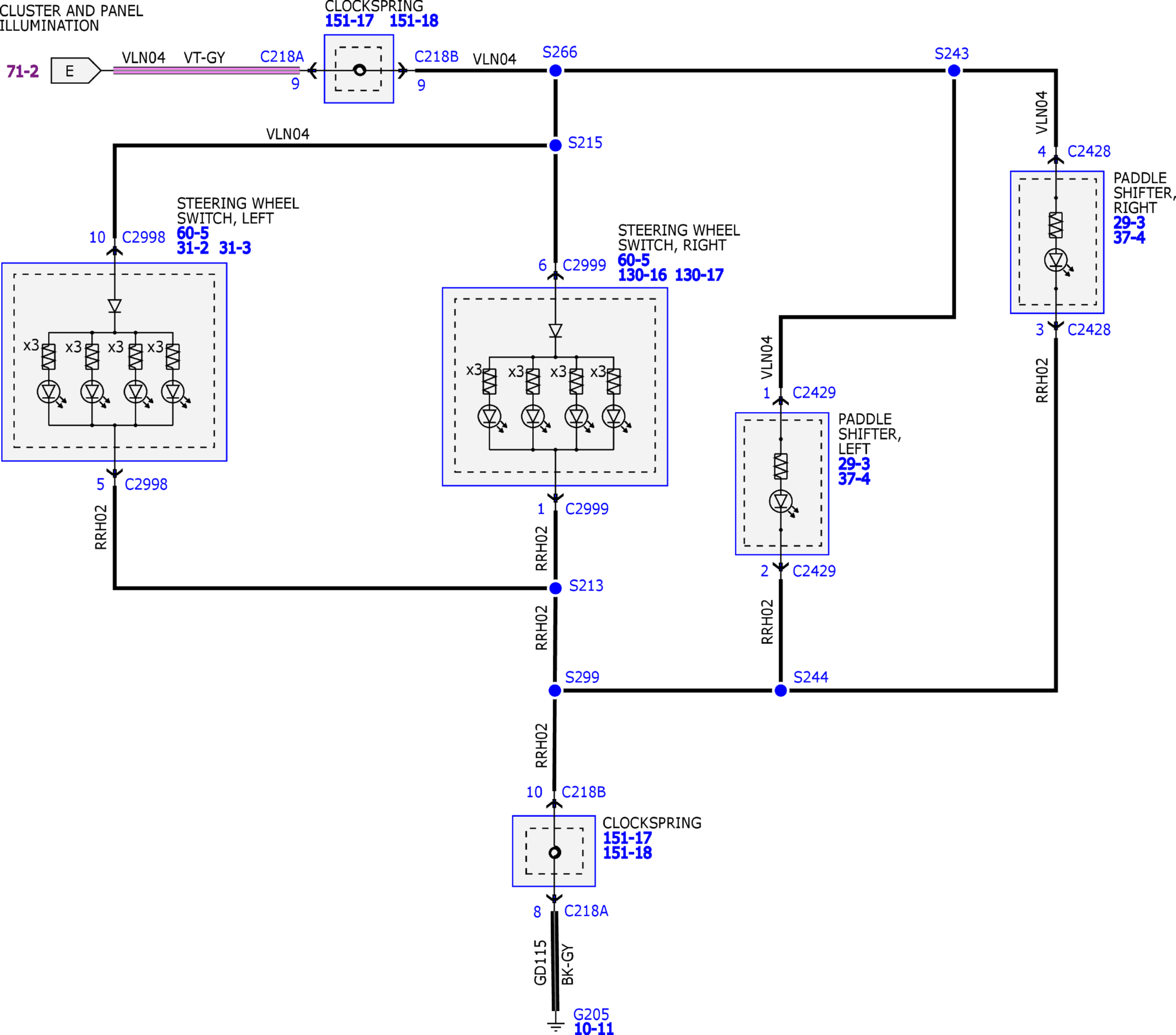

Fig 3: Cluster and Panel Illumination Wiring Diagram (3 of 6)
GFDW36677Courtesy of FORD MOTOR COMPANY

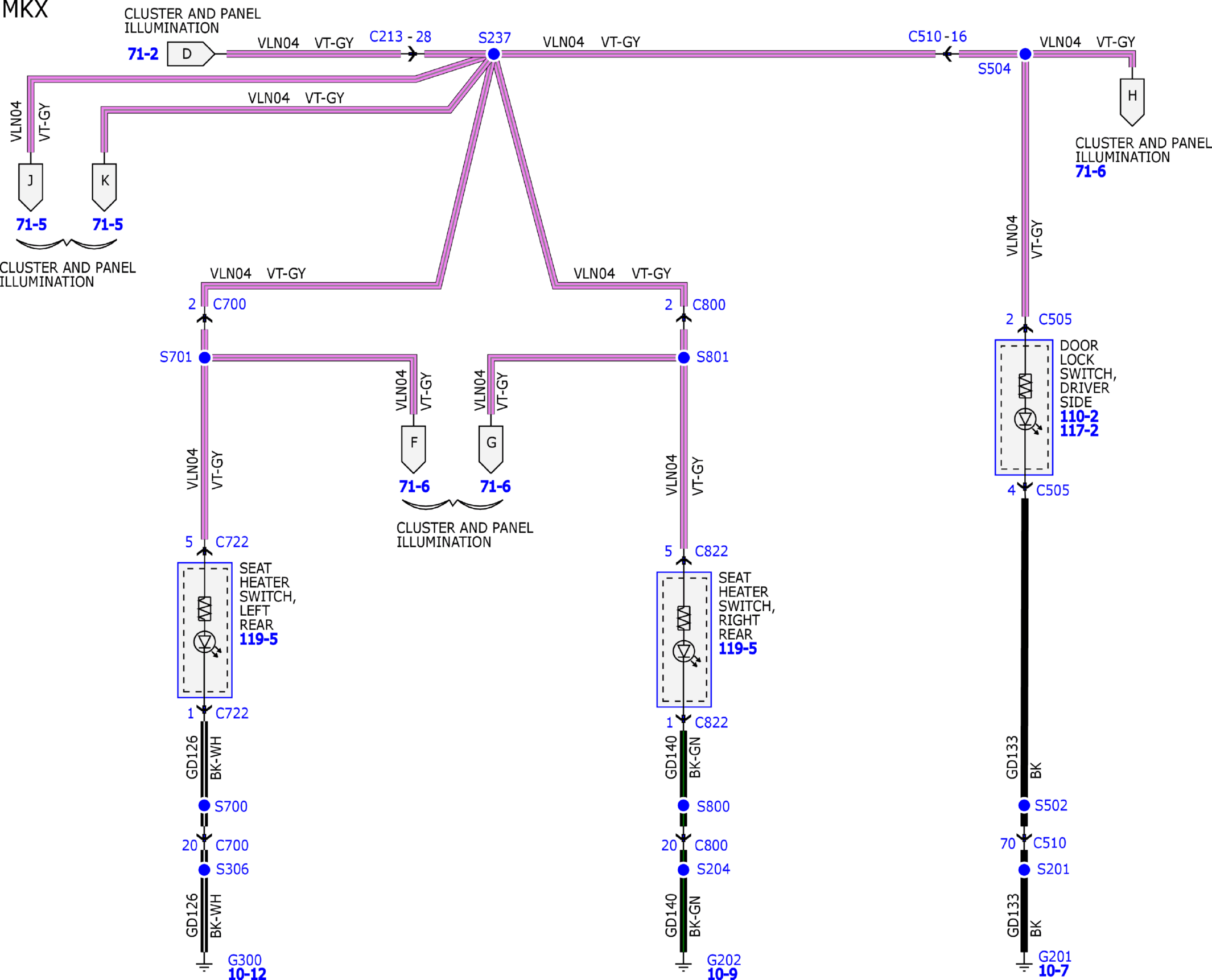

Fig 4: Cluster and Panel Illumination Wiring Diagram (4 of 6)
GFDW36678Courtesy of FORD MOTOR COMPANY

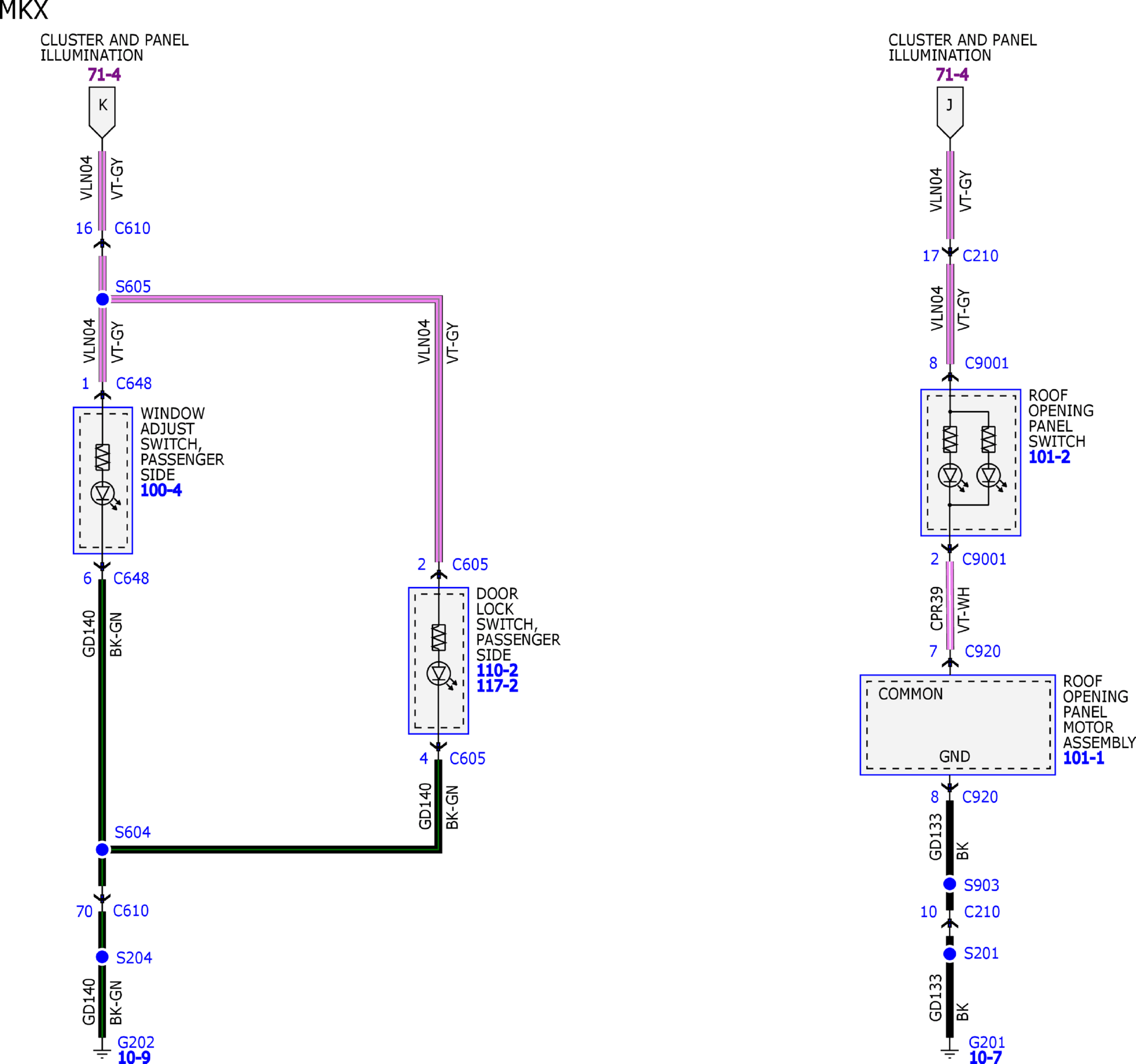

Fig 5: Cluster and Panel Illumination Wiring Diagram (5 of 6)
GFDW36679Courtesy of FORD MOTOR COMPANY

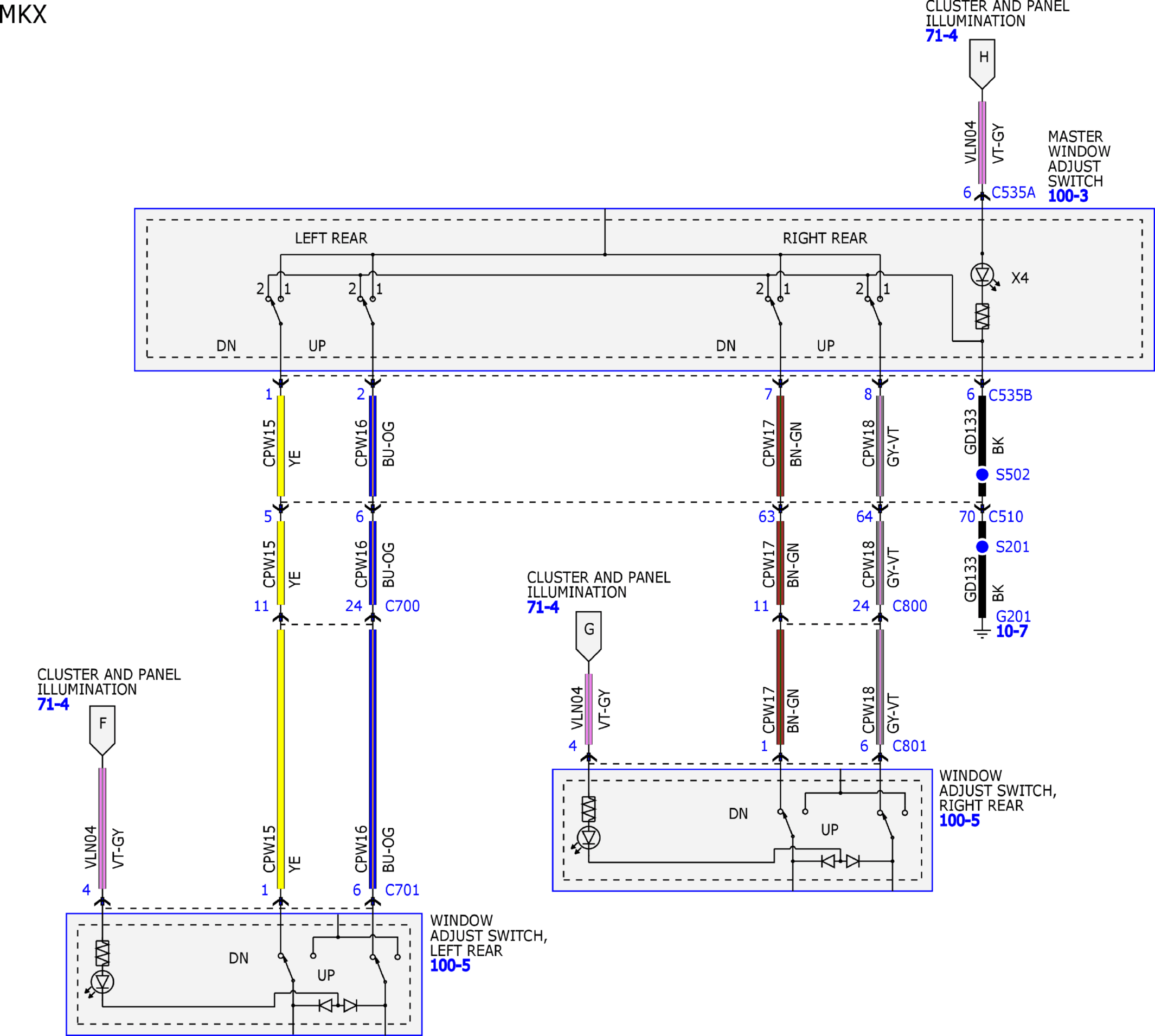

Fig 6: Cluster and Panel Illumination Wiring Diagram (6 of 6)
GFDW36680Courtesy of FORD MOTOR COMPANY
