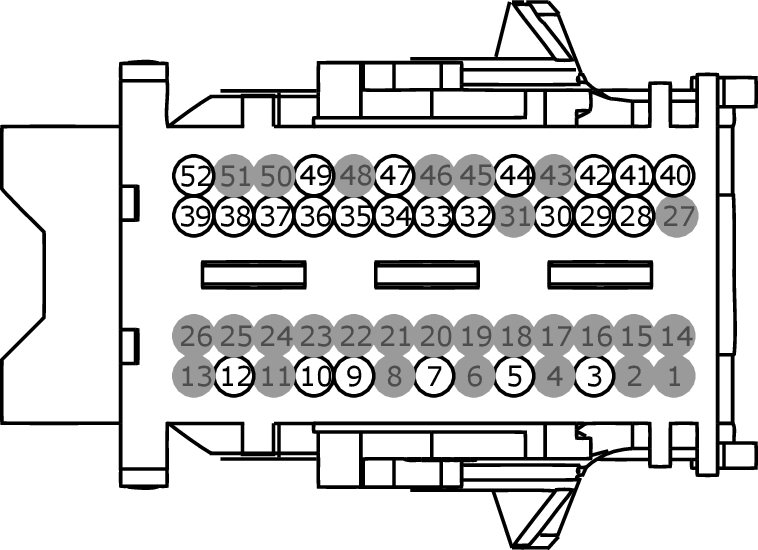

Connector End View C2280B - BODY CONTROL MODULE (BCM)
Connector:C2280B
Description
BODY CONTROL MODULE (BCM)
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | CBP41 (BU) | 20 | FUSE - 41 OR CIRCUIT BREAKER | |
| 4 | * | * | Not Used | |
| 5 | CBP42 (GN) | 22 | FUSE - 42 OR CIRCUIT BREAKER | 2.0L GTDI |
| 6 | * | * | Not Used | |
| 7 | CBP35 (YE-GY) | 22 | FUSE - 35 OR CIRCUIT BREAKER | |
| 8 | * | * | Not Used | |
| 9 | CBP36 (BU-BN) | 18 | FUSE - 36 OR CIRCUIT BREAKER | |
| 10 | CBP37 (WH) | 22 | FUSE - 37 OR CIRCUIT BREAKER | 3.5L/3.7L TiVCT |
| 11 | * | * | Not Used | |
| 12 | SBP26 (YE-RD) | 22 | FUSE - 26 OR CIRCUIT BREAKER | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | * | * | Not Used | |
| 16 | * | * | Not Used | |
| 17 | * | * | Not Used | |
| 18 | * | * | Not Used | |
| 19 | * | * | Not Used | |
| 20 | * | * | Not Used | |
| 21 | * | * | Not Used | |
| 22 | * | * | Not Used | |
| 23 | * | * | Not Used | |
| 24 | * | * | Not Used | |
| 25 | * | * | Not Used | |
| 26 | * | * | Not Used | |
| 27 | * | * | Not Used | |
| 28 | CCB08 (VT-WH) | 22 | SWITCH - BRAKE PEDAL POSITION (BPP) NORMAL OPEN | |
| 29 | CDC34 (WH-OG) | 20 | SWITCH - IGNITION # RUN; START | w/o IA |
| 30 | VLF14 (BU-BN) | 22 | SENSOR - AUTOLAMP DAY/NIGHT | |
| 31 | * | * | Not Used | |
| 32 | CLS32 (BN-YE) | 22 | SWITCH - HAZARD | |
| 33 | CRH04 (VT-GN) | 20 | CTRL MOD. - RELAY HORN | |
| 34 | CDC30 (BU-GY) | 20 | SWITCH - IGNITION # KEY IN | w/o IA |
| 35 | CDC33 (VT-GN) | 20 | SWITCH - IGNITION # RUN; ACCESSORY | w/o IA |
| 36 | VRT23 (VT-GY) | 22 | TRANSCEIVER - PASSIVE ANTI THEFT (IMMOBILIZER) # RX DATA (RX_IN) | w/o IA |
| 37 | VRT24 (YE-OG) | 22 | TRANSCEIVER - PASSIVE ANTI THEFT (IMMOBILIZER) # TX CNTRL | w/o IA |
| 38 | VDB06 (GY-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | |
| 39 | VDB07 (VT-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | |
| 40 | VLN04 (VT-GY) | 20 | CTRL MOD. - IP/SWITCH ILLUMINATION | |
| 41 | CPK34 (BN-VT) | 20 | CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 1 | with IA |
| 42 | CPK36 (VT-BN) | 22 | CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP RUN LED | with IA |
| 43 | * | * | Not Used | |
| 44 | CPK35 (YE-OG) | 22 | CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 2 | with IA |
| 45 | * | * | Not Used | |
| 46 | * | * | Not Used | |
| 47 | CDC35 (BU-WH) | 20 | SWITCH - IGNITION # START | w/o IA |
| 48 | * | * | Not Used | |
| 49 | CET53 (BU-OG) | 22 | CTRL MOD. - POWERTRAIN # BRAKE SHIFT INTERLOCK | |
| 50 | * | * | Not Used | |
| 51 | * | * | Not Used | |
| 52 | VDN01 (BU-WH) | 22 | CTRL MOD. - LIN BUS # SPDJB 1 | w/o Sync |
