Brake Booster - 3.7L: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

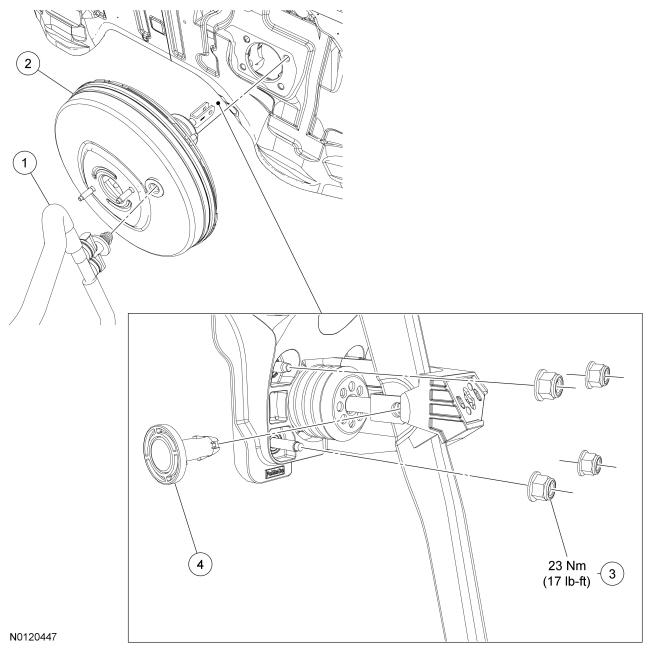

| Item | Part Number | Description |
|---|---|---|
| 1 | 9C490 | Vacuum hose |
| 2 | 2005 | Brake booster |
| 3 | W520212 | Brake booster nut (4 required) |
| 4 | 2L523 | Brake booster push rod clevis locking pin |
