Instrument Panel Cluster (IPC): Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

Instrument Panel Cluster (IPC)

Edge

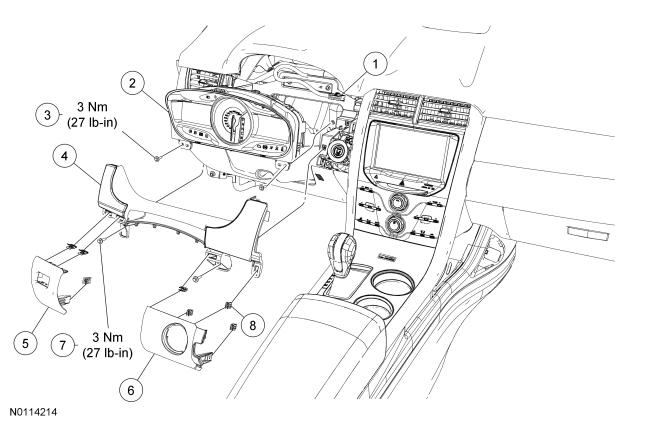

Fig 1: Instrument Panel Cluster (IPC) With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	IPC electrical connector (part of 14401)
2	10849	IPC
3	W707628	IPC screws (2 required)
4	78044D70	Lower IPC finish panel
5	7804338	Left finish panel
6	7804338	Right finish panel
7	W707628	Lower IPC finish panel screws (2 required)
8	W790178	Clip (7 required)

MKX

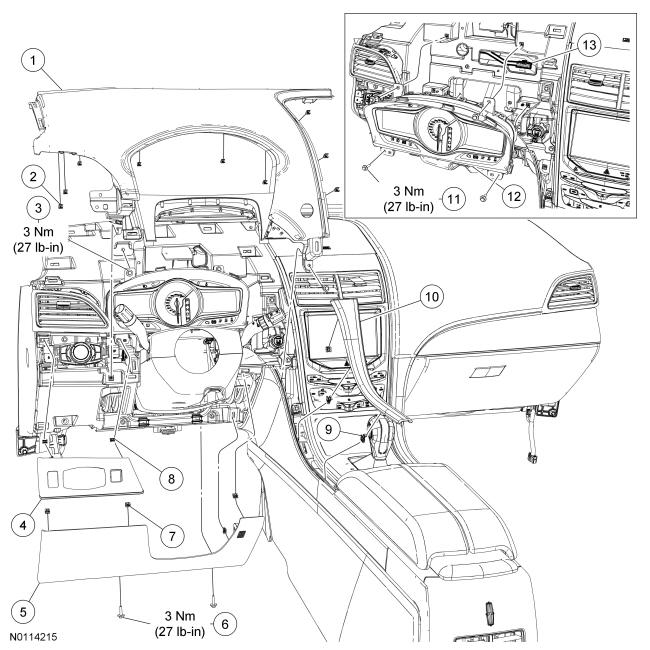

Fig 2: Instrument Panel Cluster Replacement Components With Torque Specifications - MKX

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	78044F58	LH IPC top cover
2	W790178	Clip (9 required)
3	W707628	LH IPC top cover screws (2 required)
4	78044A91	Left finish panel
5	7804459	Steering column opening trim panel
6	W505153	Steering column opening trim panel screws (2 required)
7	W790178	Clip (6 required)
8	W790178	Clip (4 required)
9	W712427	Clip (3 required)
10	78045A17	Left side console bezel
11	W707628	IPC screws (2 required)
12	10849	IPC
13	-	IPC electrical connector (part of 14401)
