Instrument Panel Cluster (IPC): Notes
Instrument Panel Cluster (IPC)

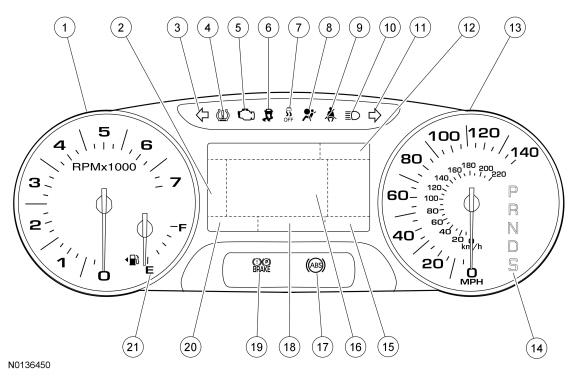

Edge Base Instrument Panel Cluster (IPC)
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Tachometer |
| 2 | - | Main menu navigation |
| 3 | - | LH turn indicator |
| 4 | - | Tire Pressure Monitoring System (TPMS) warning indicator |
| 5 | - | Malfunction Indicator Lamp (MIL) |
| 6 | - | Stability/traction control indicator |
| 7 | - | Stability/traction control disabled indicator |
| 8 | - | Air bag warning indicator |
| 9 | - | Safety belt warning indicator |
| 10 | - | High beam indicator |
| 11 | - | RH turn indicator |
| 12 | - | Cruise control display area |
| 13 | - | Speedometer |
| 14 | - | PRNDL (PRNDS) display |
| 15 | - | Odometer display |
| 16 | - | Message center display area |
| 17 | - | ABS warning indicator |
| 18 | - | Message center warning indicator or outside air temperature display area |
| 19 | - | Brake warning indicator |
| 20 | - | Select shift display |
| 21 | - | Fuel gauge |

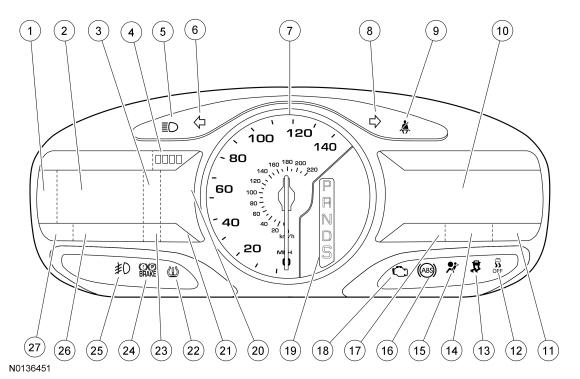

Edge Optional IPC and MKX
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Main menu navigation |
| 2 | - | LH message center display (also displays the All-Wheel Drive (AWD) gauge [if equipped] and select shift when the tachometer is displayed) |
| 3 | - | Adaptive cruise control display (if equipped) |
| 4 | - | Submenu display area |
| 5 | - | High beam indicator |
| 6 | - | LH turn indicator |
| 7 | - | Speedometer |
| 8 | - | RH turn indicator |
| 9 | - | Safety belt warning indicator |
| 10 | - | RH multimedia display area |
| 11 | - | Clock display |
| 12 | - | Stability/traction control disabled indicator |
| 13 | - | Stability/traction control indicator |
| 14 | - | Compass display |
| 15 | - | Air bag warning indicator |
| 16 | - | ABS warning indicator |
| 17 | - | Outside air temperature display |
| 18 | - | Malfunction Indicator Lamp (MIL) |
| 19 | - | PRNDL (PRNDS) display |
| 20 | - | Gauge display area (fuel, tachometer and temperature based on display settings) |
| 21 | - | Select shift display area |
| 22 | - | Tire Pressure Monitoring System (TPMS) warning indicator |
| 23 | - | Cruise control message center indicator (fixed) |
| 24 | - | Brake warning indicator |
| 25 | - | Fog lamp indicator |
| 26 | - | Message center indicator display area (rotating) |
| 27 | - | Odometer display |
The Edge Instrument Panel Cluster (IPC) is available with a single Liquid Crystal Display (LCD) screen or with dual RH and LH LCD screens. The MKX is available only with the dual LCD screens. The single display screen and the LH display screen contain the conventional message center information. The RH display screen interfaces and displays multimedia information (audio, phone and navigation) as well as items such as vehicle direction, outside air temperature and time. Refer to Information and Entertainment Systems for additional information on the RH display screen. Both IPC configurations contain gauges, informational, warning, and message center indicators that provide the driver with a system status and to alert the driver that certain conditions exist in the vehicle.
