Power Windows

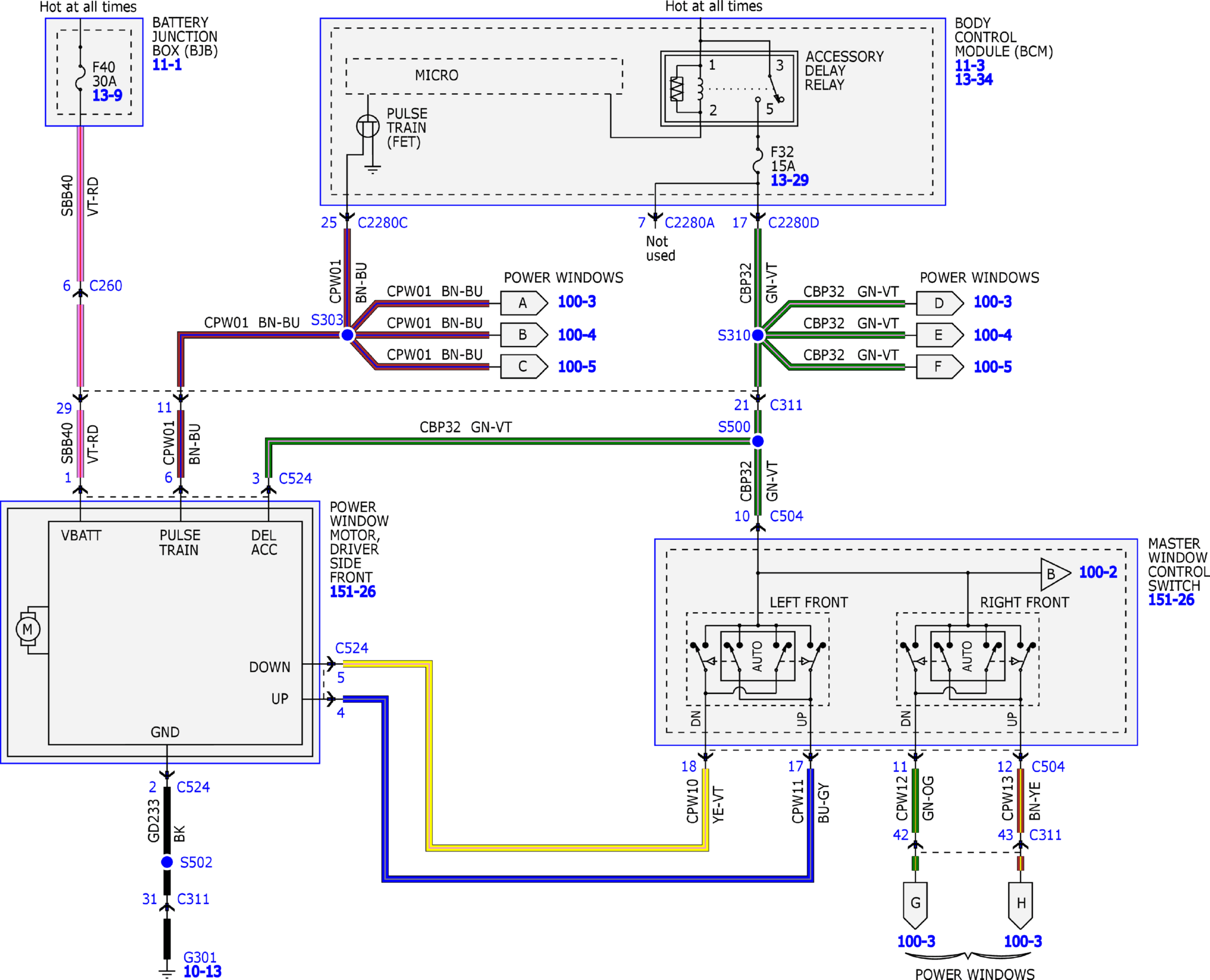

Fig 1: Power Windows Wiring Diagram (1 of 5)
GFDW36084Courtesy of FORD MOTOR COMPANY

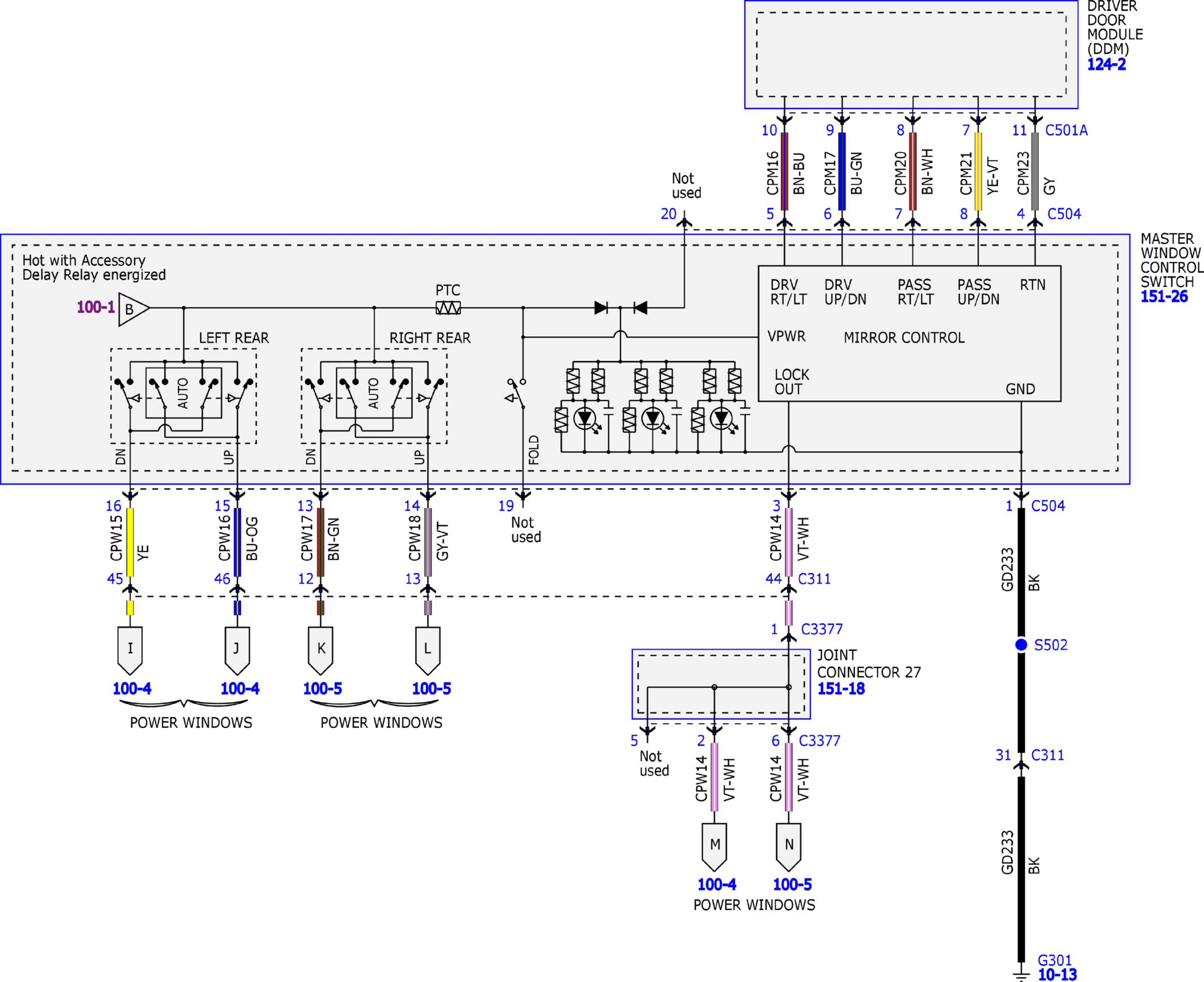

Fig 2: Power Windows Wiring Diagram (2 of 5)
GFDW36085Courtesy of FORD MOTOR COMPANY

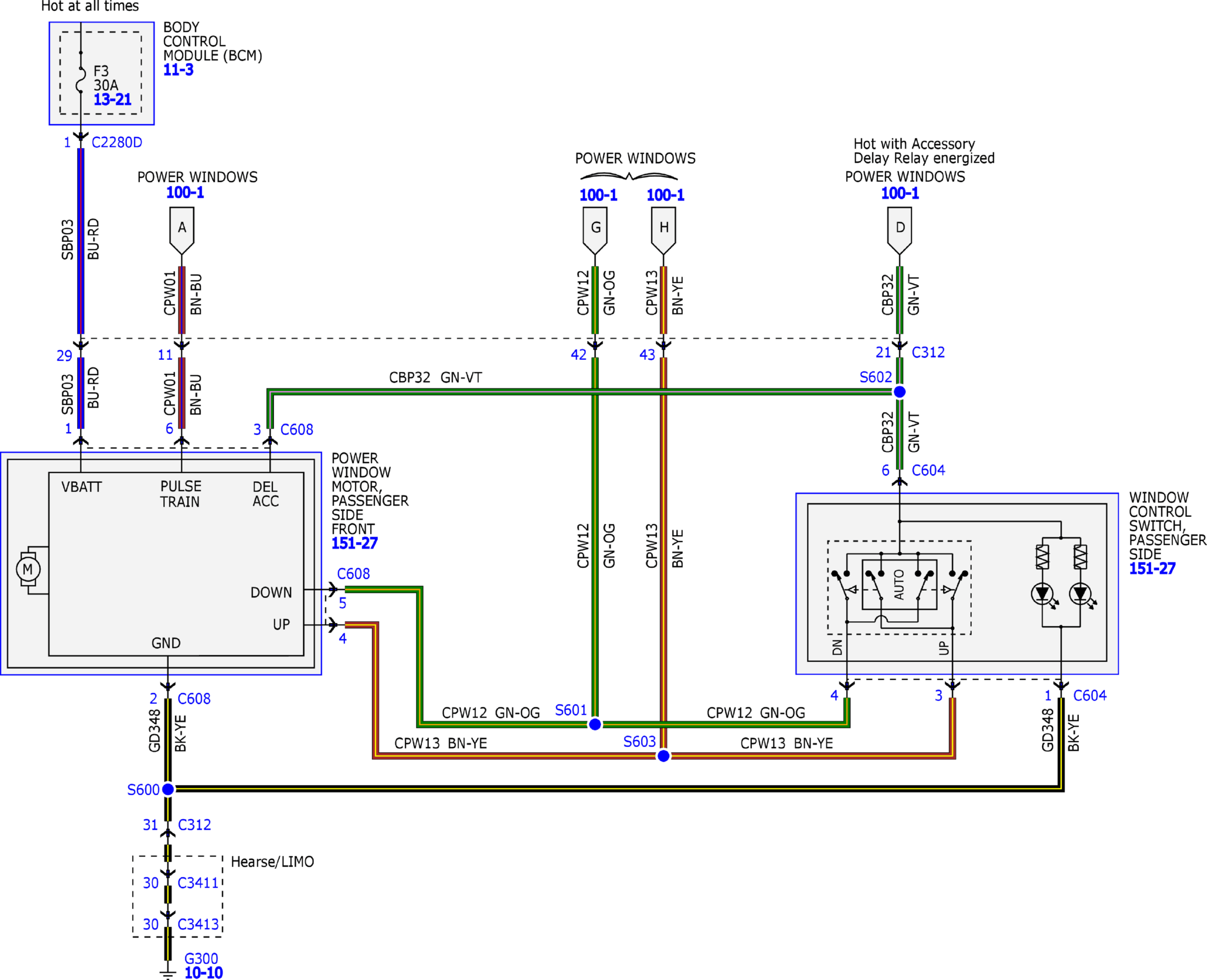

Fig 3: Power Windows Wiring Diagram (3 of 5)
GFDW36086Courtesy of FORD MOTOR COMPANY

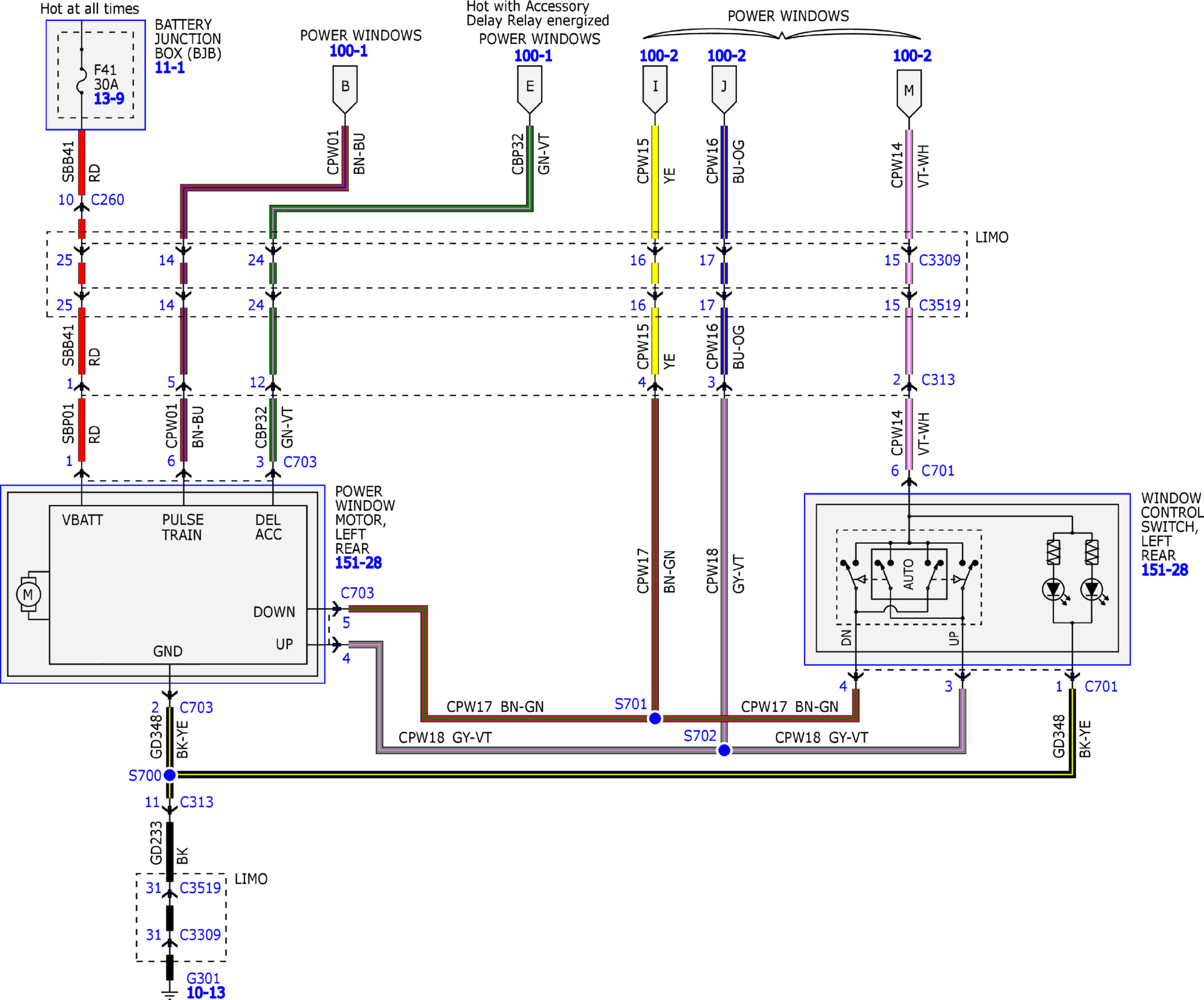

Fig 4: Power Windows Wiring Diagram (4 of 5)
GFDW36087Courtesy of FORD MOTOR COMPANY

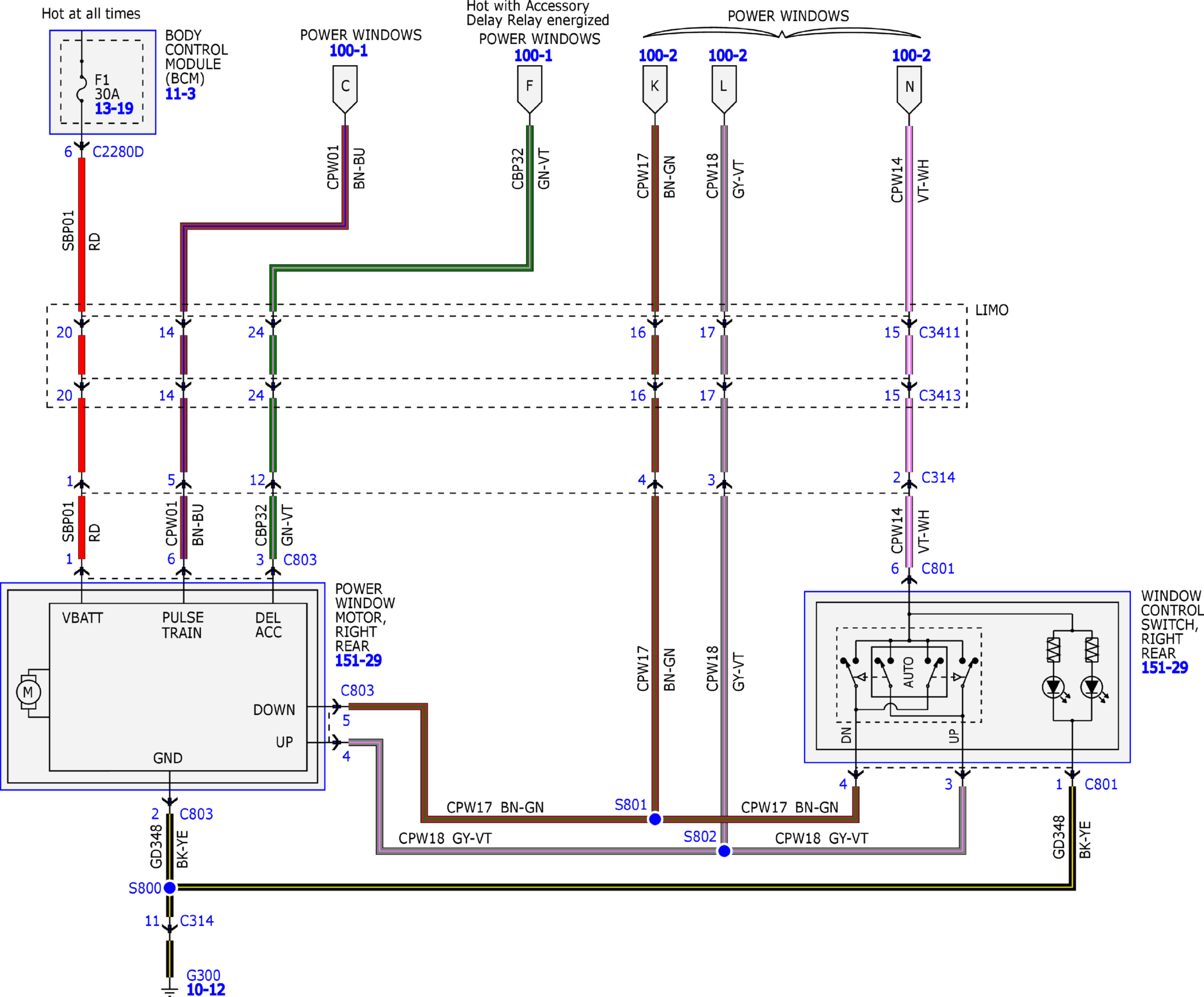

Fig 5: Power Windows Wiring Diagram (5 of 5)
GFDW36088Courtesy of FORD MOTOR COMPANY
