Instrument Cluster

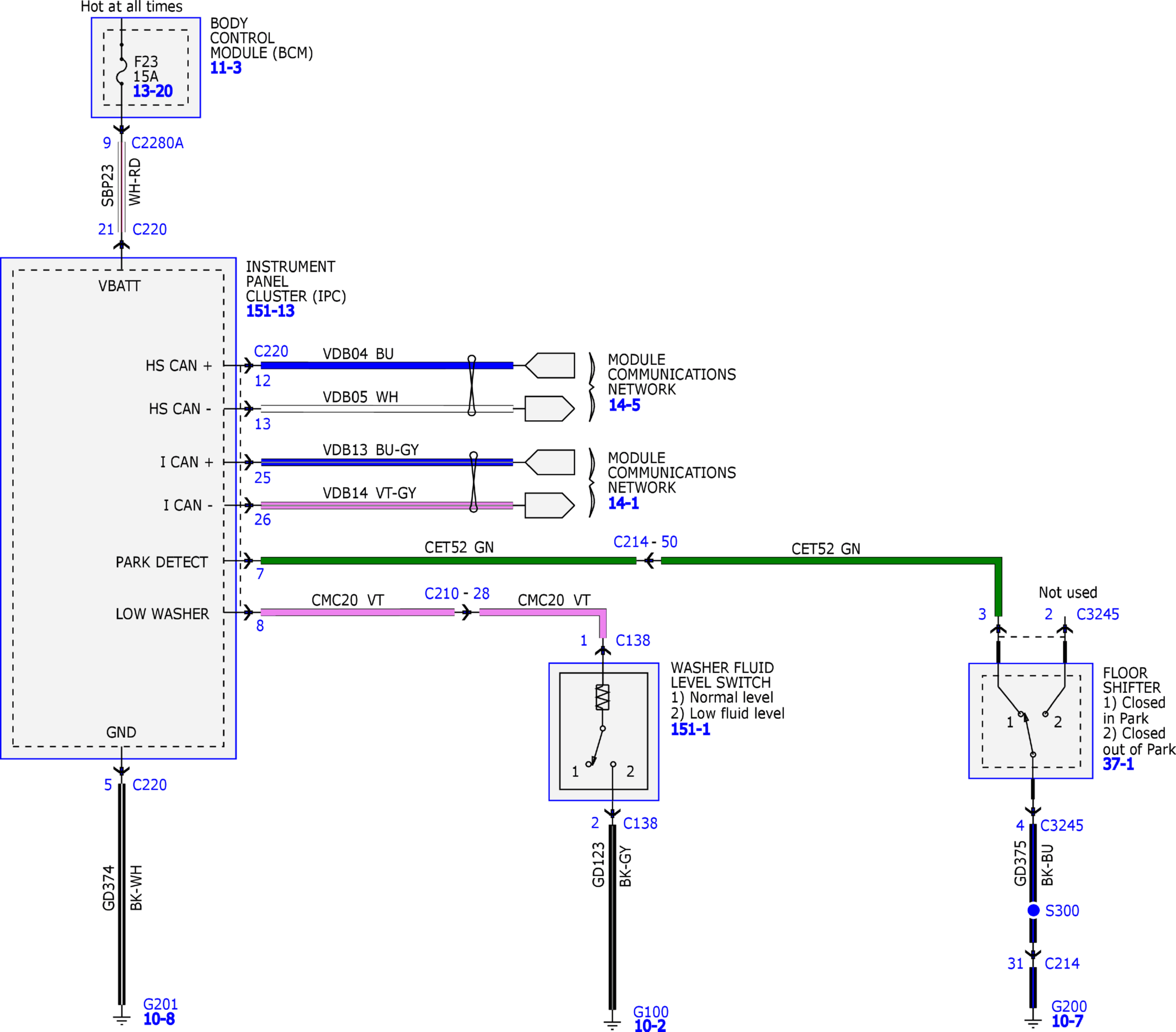

Fig 1: Instrument Cluster Wiring Diagram (1 of 6)
GFDW35976Courtesy of FORD MOTOR COMPANY

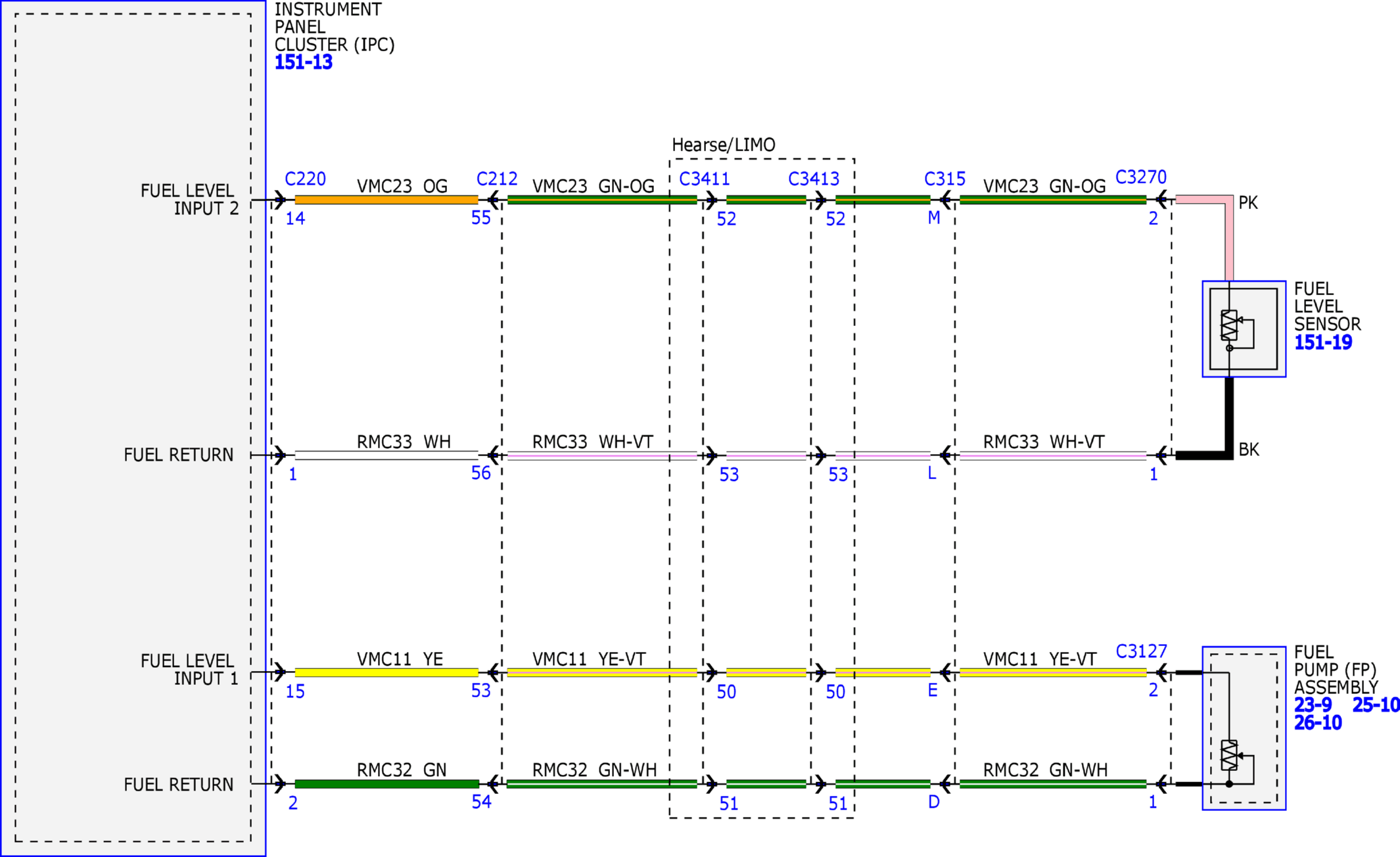

Fig 2: Instrument Cluster Wiring Diagram (2 of 6)
GFDW35977Courtesy of FORD MOTOR COMPANY

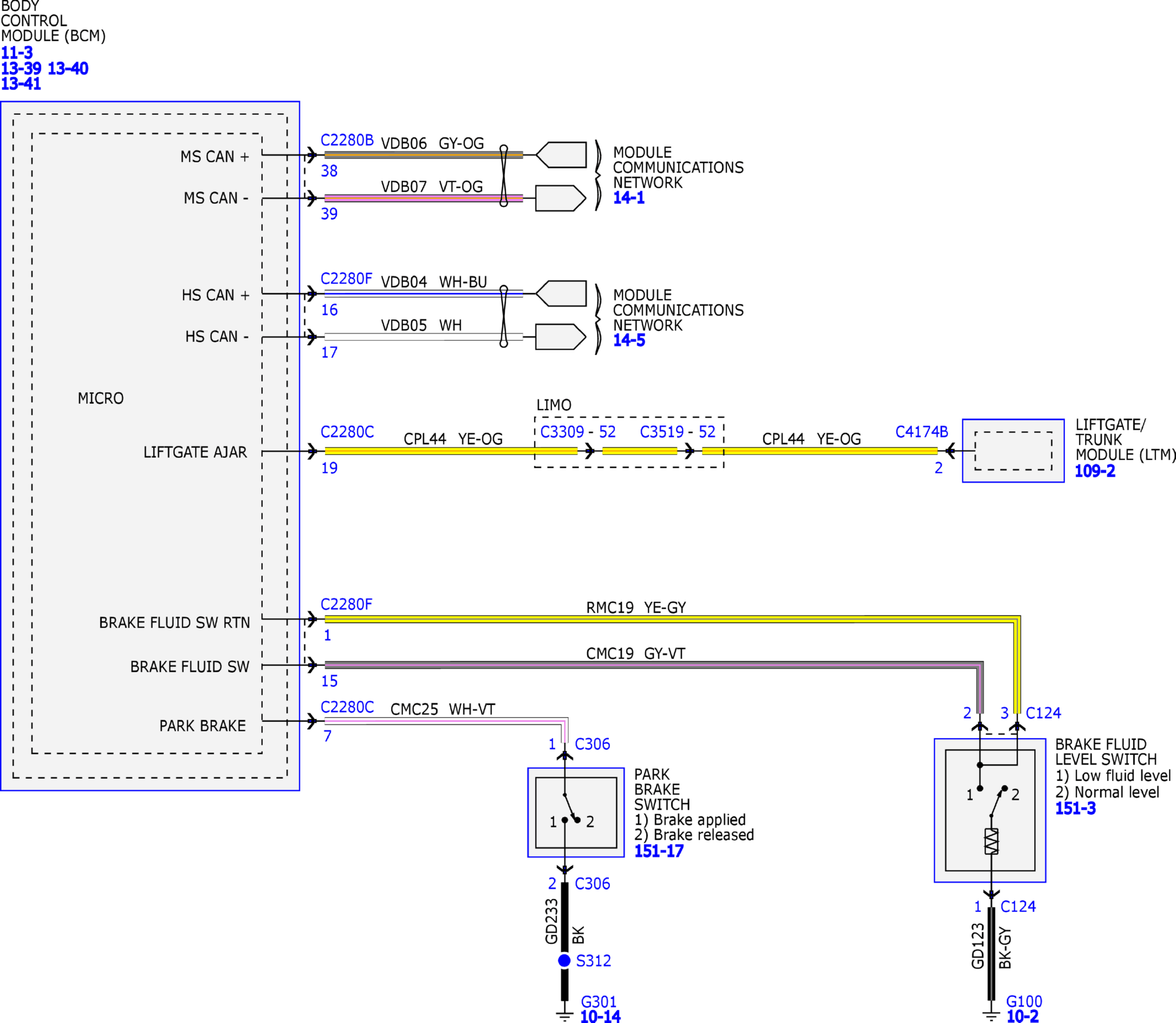

Fig 3: Instrument Cluster Wiring Diagram (3 of 6)
GFDW35978Courtesy of FORD MOTOR COMPANY

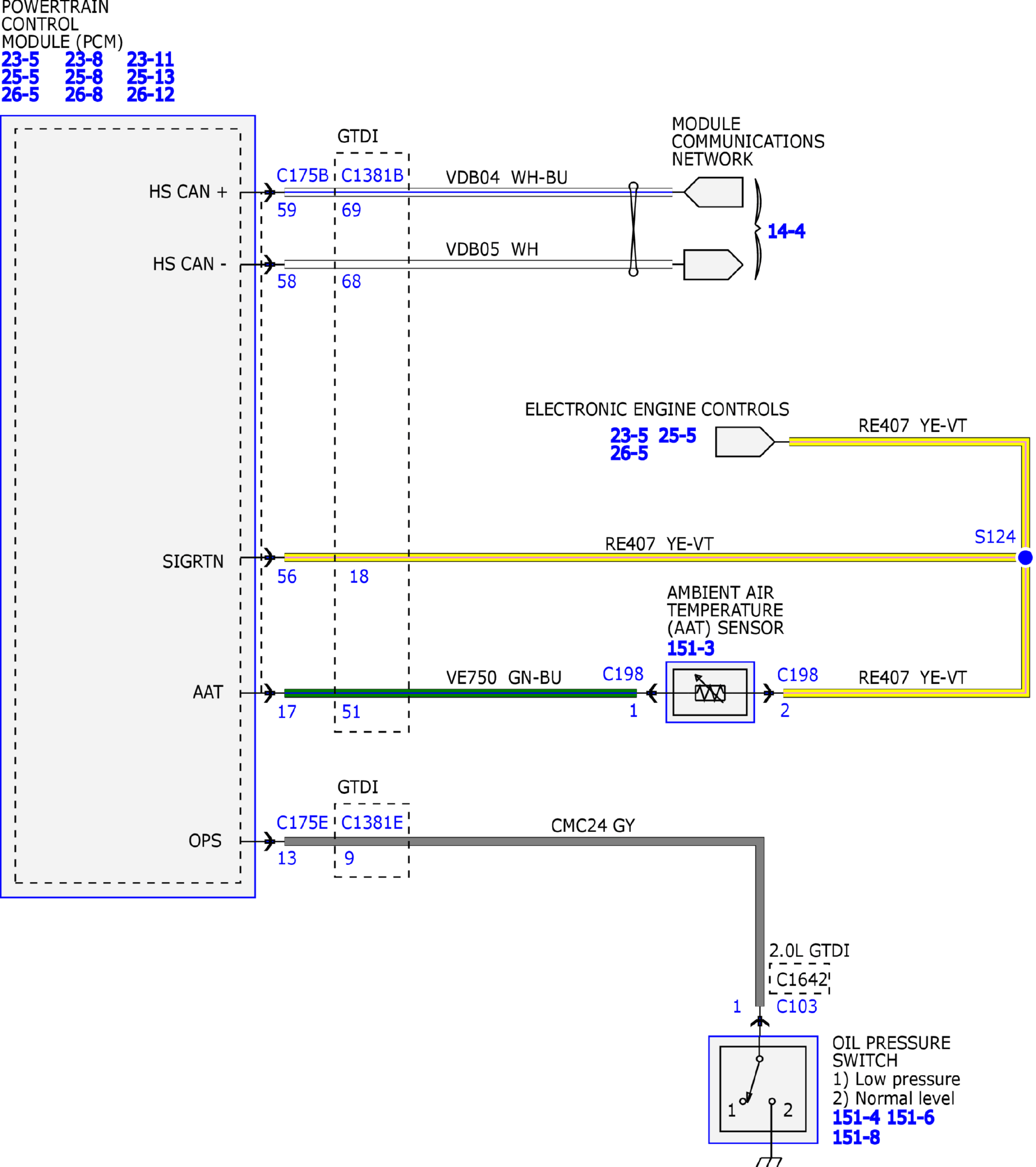

Fig 4: Instrument Cluster Wiring Diagram (4 of 6)
GFDW35979Courtesy of FORD MOTOR COMPANY

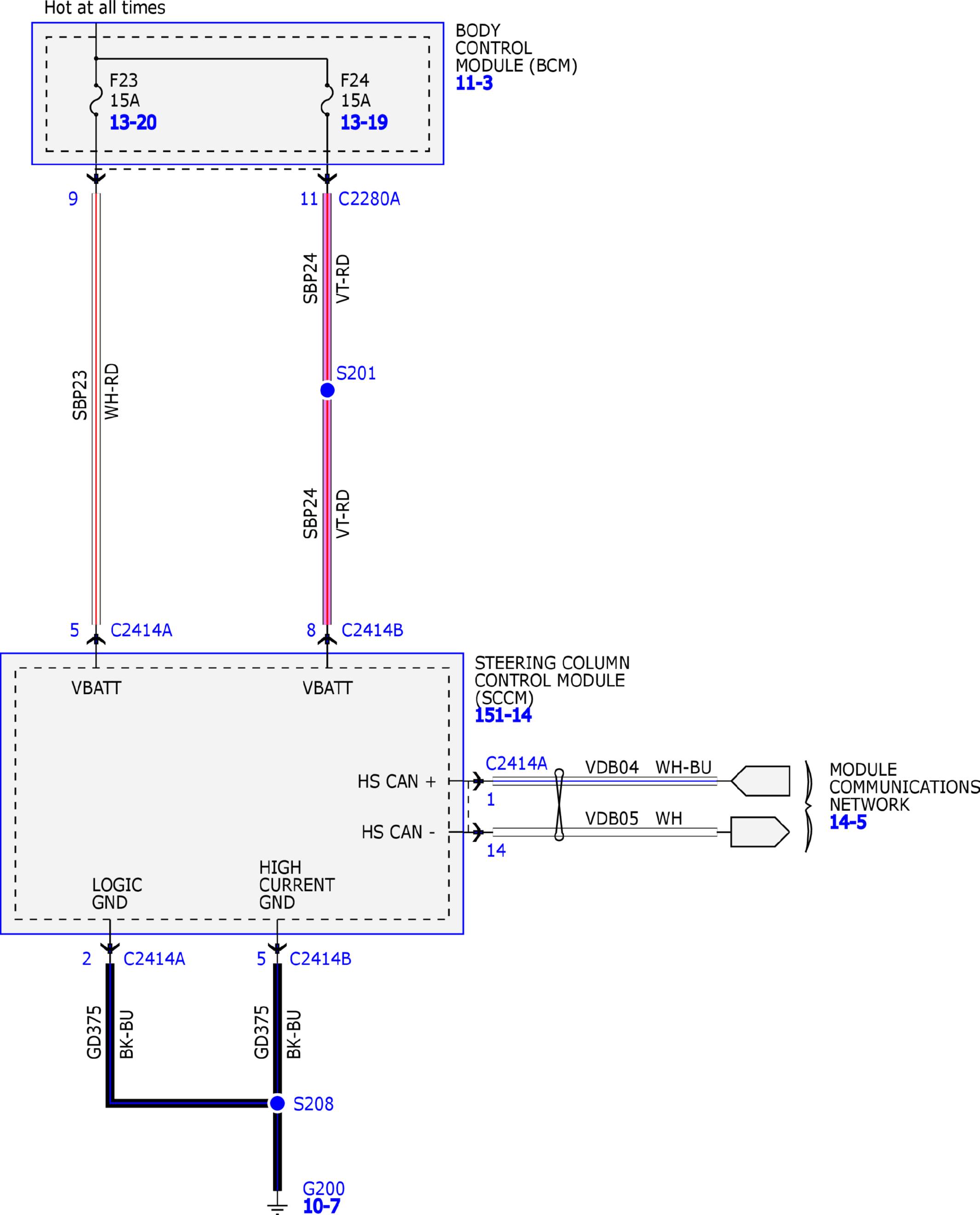

Fig 5: Instrument Cluster Wiring Diagram (5 of 6)
GFDW35980Courtesy of FORD MOTOR COMPANY

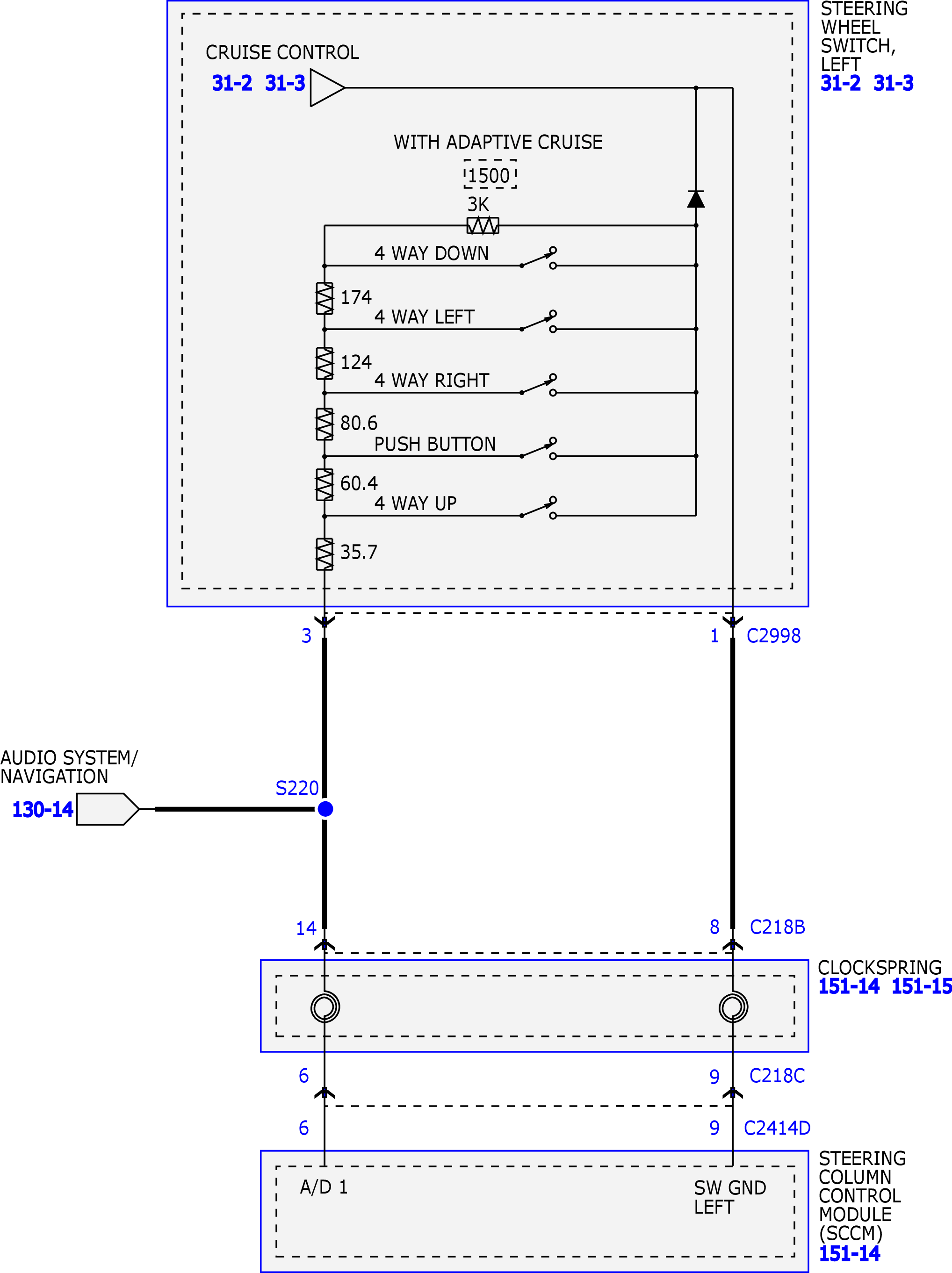

Fig 6: Instrument Cluster Wiring Diagram (6 of 6)
GFDW35981Courtesy of FORD MOTOR COMPANY
