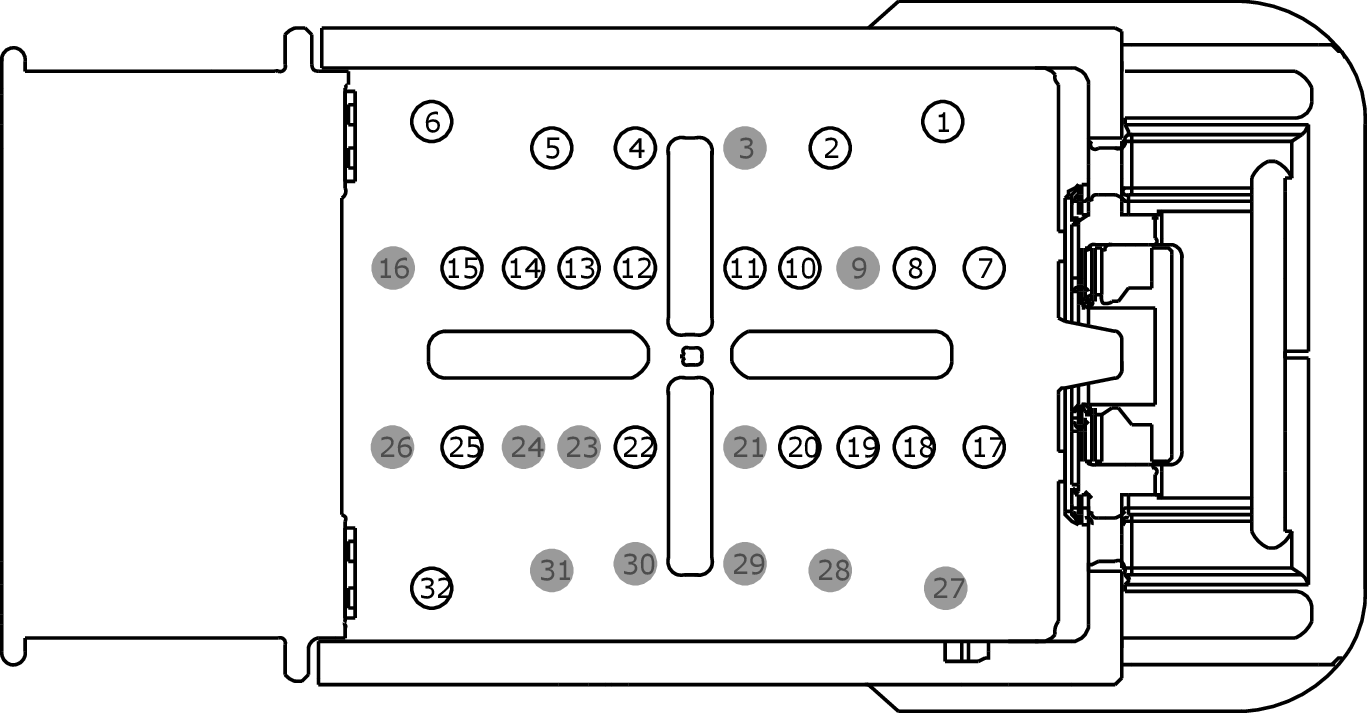

Connector End View C2280D - BODY CONTROL MODULE (BCM)
Connector:C2280D
Description
BODY CONTROL MODULE (BCM)
Color
NA
Harness
14A005
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | SBP03 (BU-RD) | 14 | FUSE - 3 OR CIRCUIT BREAKER | |
| 2 | SBP05 (GY-RD) | 12 | FUSE - 5 OR CIRCUIT BREAKER | |
| 3 | * | * | Not Used | |
| 4 | SBP06 (BN-RD) | 22 | FUSE - 6 OR CIRCUIT BREAKER | |
| 5 | SBP02 (YE-RD) | 16 | FUSE - 2 OR CIRCUIT BREAKER | |
| 6 | SBP01 (RD) | 14 | FUSE - 1 OR CIRCUIT BREAKER | |
| 6 | SBP01 (RD) | 10 | FUSE - 1 OR CIRCUIT BREAKER | |
| 7 | CBP33 (WH-BN) | 14 | FUSE - 33 OR CIRCUIT BREAKER | |
| 8 | CBP34 (VT-BN) | 18 | FUSE - 34 OR CIRCUIT BREAKER | |
| 9 | * | * | Not Used | |
| 10 | SBP08 (VT-RD) | 22 | FUSE - 8 OR CIRCUIT BREAKER | |
| 10 | SBP08 (VT-RD) | 20 | FUSE - 8 OR CIRCUIT BREAKER | |
| 11 | SBP07 (WH-RD) | 20 | FUSE - 7 OR CIRCUIT BREAKER | |
| 11 | SBP07 (WH-RD) | 22 | FUSE - 7 OR CIRCUIT BREAKER | |
| 12 | CLS18 (GY-BN) | 20 | CTRL MOD. - STOP/TURN LEFT (INBOARD) | |
| 12 | CLS18 (GY-BN) | 18 | CTRL MOD. - STOP/TURN LEFT (INBOARD) | |
| 13 | CLS28 (BU-WH) | 20 | CTRL MOD. - RELAY REVERSE LAMP CONTROL (RLC) | |
| 14 | CLS17 (YE-GY) | 20 | CTRL MOD. - STOP HIGH MOUNT | |
| 15 | CLS19 (VT-OG) | 20 | CTRL MOD. - STOP/TURN RIGHT (INBOARD) | |
| 15 | CLS19 (VT-OG) | 18 | CTRL MOD. - STOP/TURN RIGHT (INBOARD) | |
| 16 | * | * | Not Used | |
| 17 | CBP32 (GN-VT) | 20 | FUSE - 32 OR CIRCUIT BREAKER | |
| 18 | CLS30 (VT-WH) | 20 | RELAY - PARK LAMP | |
| 19 | CBP41 (BU) | 20 | FUSE - 41 OR CIRCUIT BREAKER | |
| 20 | SBP09 (RD) | 22 | FUSE - 9 OR CIRCUIT BREAKER | |
| 21 | * | * | Not Used | |
| 22 | CLN09 (YE-GN) | 20 | RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING) | |
| 23 | * | * | Not Used | |
| 24 | * | * | Not Used | |
| 25 | GD233 (BK) | 16 | GROUND - COWL SIDE/PILLAR A LEFT (BC3T) | |
| 26 | * | * | Not Used | |
| 27 | * | * | Not Used | |
| 28 | * | * | Not Used | |
| 29 | * | * | Not Used | |
| 30 | * | * | Not Used | |
| 31 | * | * | Not Used | |
| 32 | SBP19 (BU-RD) | 12 | FUSE - 19 OR CIRCUIT BREAKER | with THX |
| 32 | SBP19 (BU-RD) | 14 | FUSE - 19 OR CIRCUIT BREAKER | without THX |
| 32 | SBP19 (BU-RD) | 10 | FUSE - 19 OR CIRCUIT BREAKER | LIMO |
