Brake Vacuum Pump - Limo: Removal
NOTE:
Steps in the removal procedure may contain installation details.
- 1.
Remove the front bumper cover. For additional information, refer to Bumpers .
- 4.

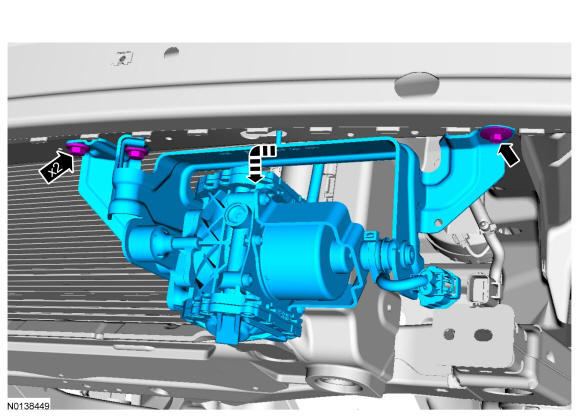

- To install, tighten the LH brake vacuum pump bracket bolt to 8 Nm (71 lb-in).
- To install, tighten the 2 RH brake vacuum pump bracket bolts to 20 Nm (177 lb-in).
