Turbocharger Coolant Supply Tube - LH: Installation

• 1.



  • 1.

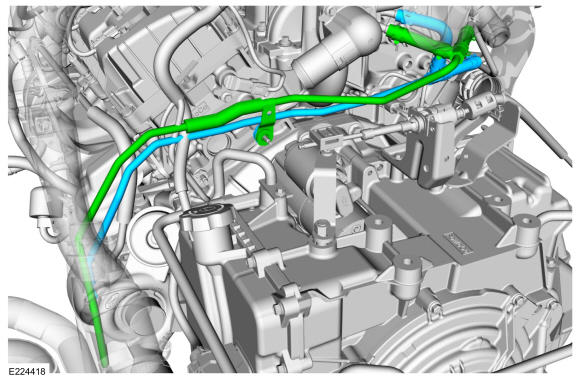

    Install the turbocharger coolant supply tube.

  • 2.

    Install the turbocharger coolant return tube.

Courtesy of FORD MOTOR COMPANY

• 2.

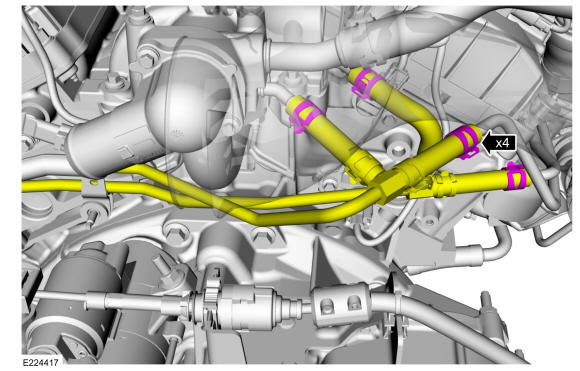

  Connect the turbocharger coolant hoses and clamps.

Courtesy of FORD MOTOR COMPANY

• 3.

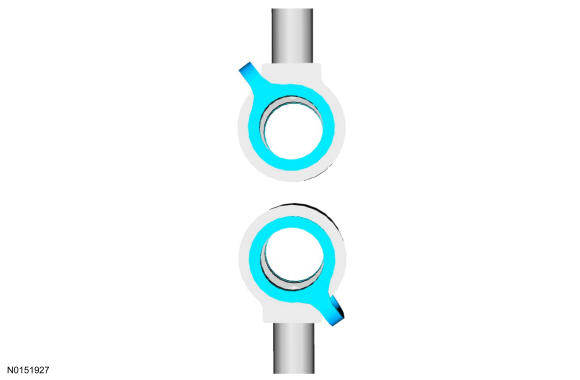

  Install the 2 new turbocharger coolant tube linked sealing washers.

Courtesy of FORD MOTOR COMPANY

• 4.

  Install the turbocharger coolant tubes, then install and tighten the new turbocharger coolant tube bolts in the following 2 stages.
  • Stage 1: Tighten to 12 Nm (106 lb-in).
  • Stage 2: Tighten 60 degrees.

Courtesy of FORD MOTOR COMPANY

• 5.

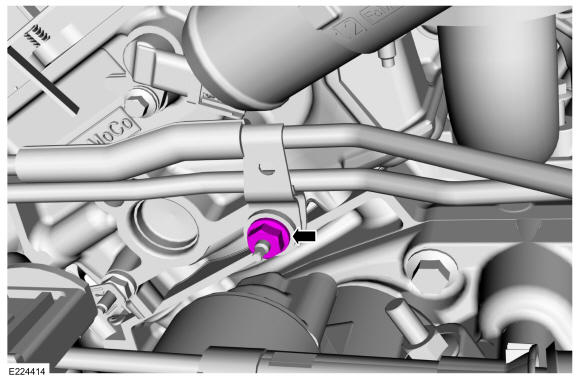

  Install and tighten the coolant tube bracket retaining nut. Tighten to 12 Nm (106 lb-in).

Courtesy of FORD MOTOR COMPANY

• 6.

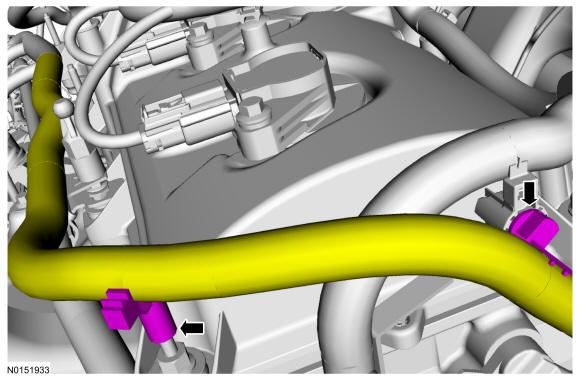

  Attach the turbocharger wastegate control hose retainers.

Courtesy of FORD MOTOR COMPANY

• 7.

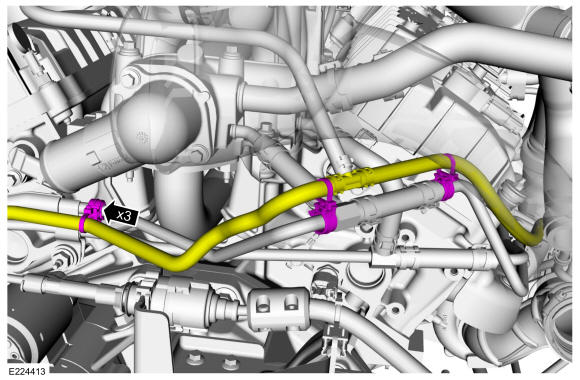

  Attach the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

• 8.

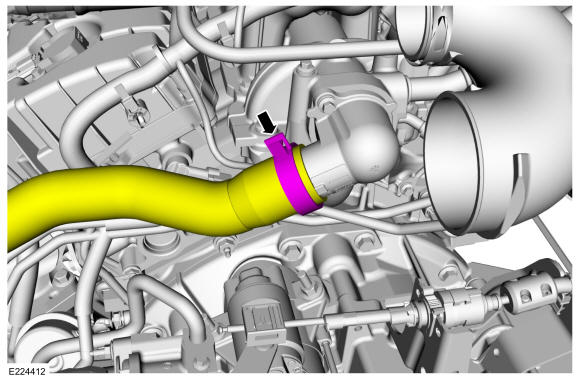

  Connect the coolant hose and clamp.

Courtesy of FORD MOTOR COMPANY

• 9.

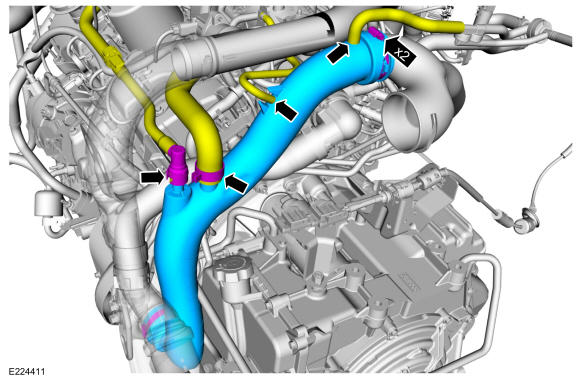

  Install the turbocharger inlet tube and then tighten the turbocharger inlet tube clamps. Tighten to 5 Nm (44 lb-in).

  • 1.

    Connect the crankcase ventilation hose. Refer to Fuel System General Information .
  • Connect the vacuum hoses.
  • Connect the turbocharger bypass hose and clamp.

Courtesy of FORD MOTOR COMPANY

• 10.

  Install the air cleaner assembly and the air cleaner outlet tube. Refer to Intake Air Distribution and Filtering .

• 11.

  Fill the cooling system. Refer to Engine Cooling .

• 12.

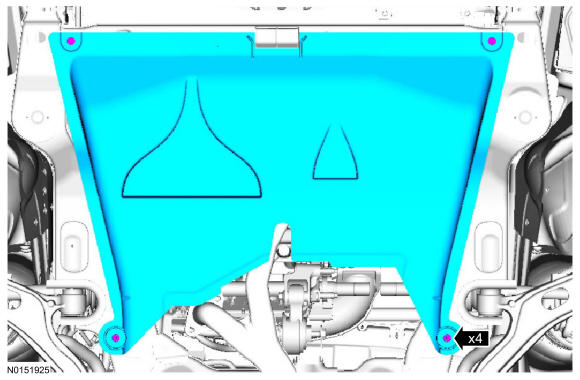

  If equipped. Install the underbody shield and then install the underbody shield retainers.

Courtesy of FORD MOTOR COMPANY

• 13.

  Remove the oil filler cap and install the engine appearance cover. Install the oil filler cap.

Courtesy of FORD MOTOR COMPANY
