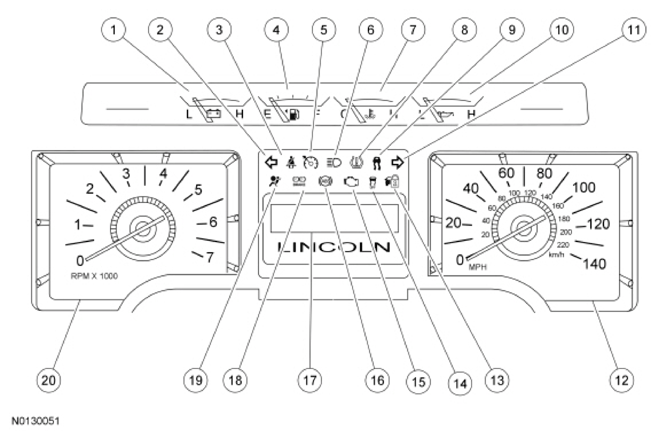

Instrument Cluster (IC): Navigator
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Voltmeter |
| 2 | - | LH turn indicator |
| 3 | - | Safety belt warning indicator |
| 4 | - | Fuel gauge |
| 5 | - | Cruise control indicator |
| 6 | - | High beam indicator |
| 7 | - | Temperature gauge |
| 8 | - | Tire Pressure Monitoring System (TPMS) warning indicator |
| 9 | - | Stability/traction control indicator |
| 10 | - | Oil pressure gauge |
| 11 | - | RH turn indicator |
| 12 | - | Speedometer |
| 13 | - | Anti-theft indicator |
| 14 | - | Stability/traction control disabled indicator |
| 15 | - | Malfunction Indicator Lamp (MIL) |
| 16 | - | ABS warning indicator |
| 17 | - | Message center |
| 18 | - | Brake warning indicator |
| 19 | - | Air bag warning indicator |
| 20 | - | Tachometer |
The Instrument Cluster (IC) contains gauges, informational indicators, warning indicators and message center indicators that are designed to provide the driver with system status and to alert the driver that certain conditions exist in the vehicle.
The IC uses a 2-line display for display of basic informational items such as the odometer and trip odometer and for the message center display information.
All indicator lamps and warning indicator lamps are LEDs, which are not replaceable.
