Instrument Cluster

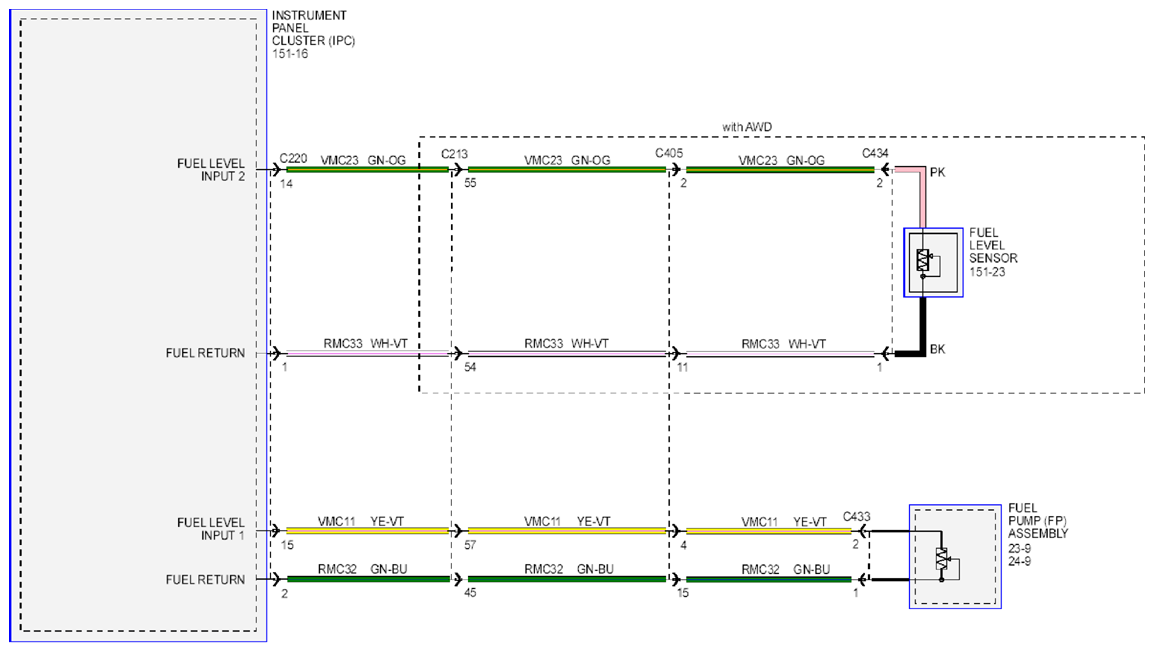

Fig 1: Instrument Cluster - Wiring Diagram (1 Of 5)
Courtesy of FORD MOTOR CO.

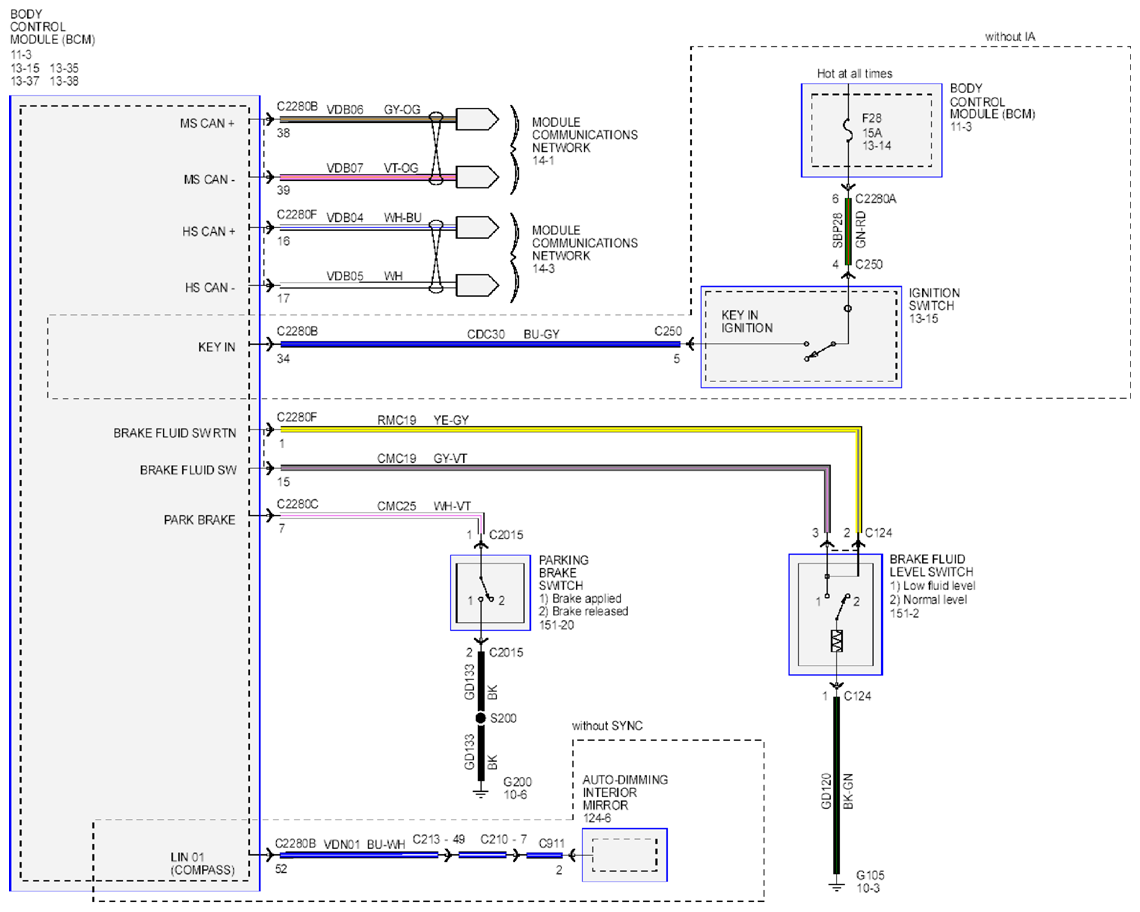

Fig 2: Instrument Cluster - Wiring Diagram (2 Of 5)
Courtesy of FORD MOTOR CO.

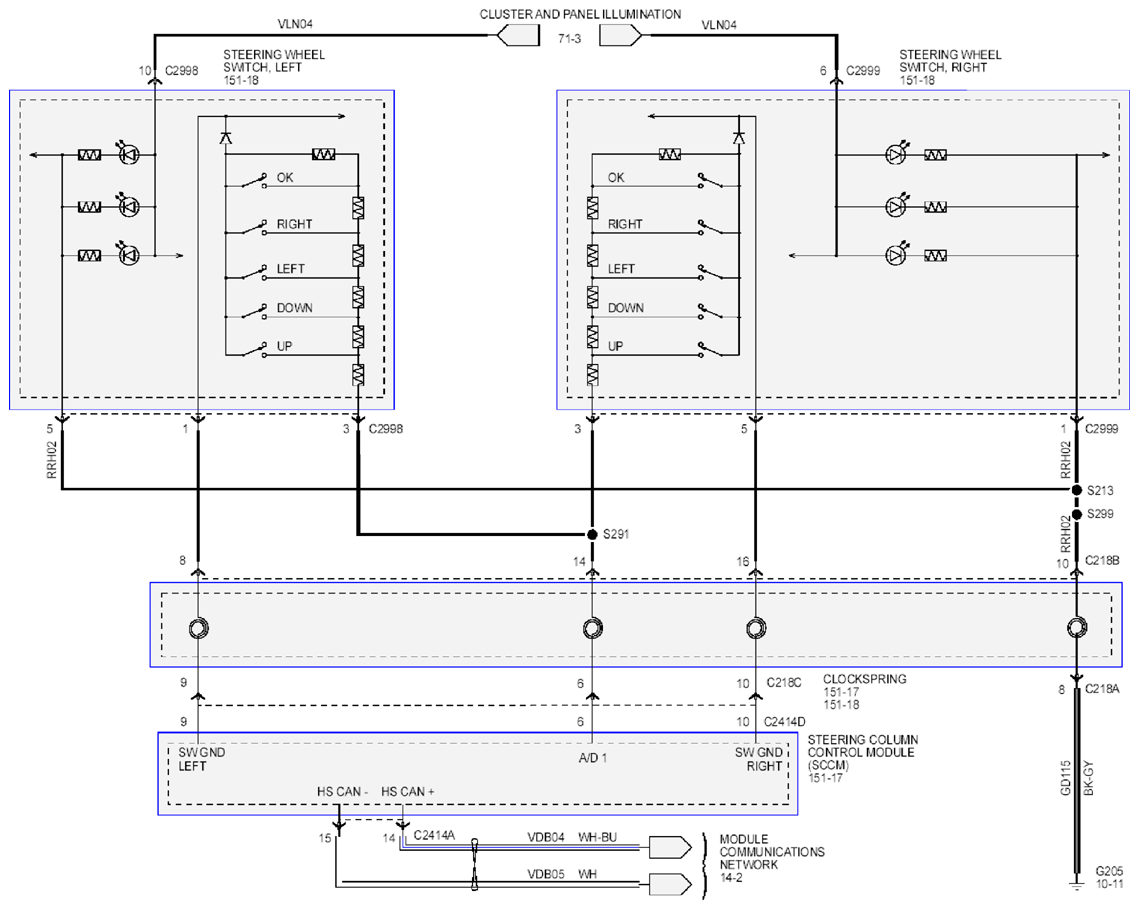

Fig 3: Instrument Cluster - Wiring Diagram (3 Of 5)
Courtesy of FORD MOTOR CO.

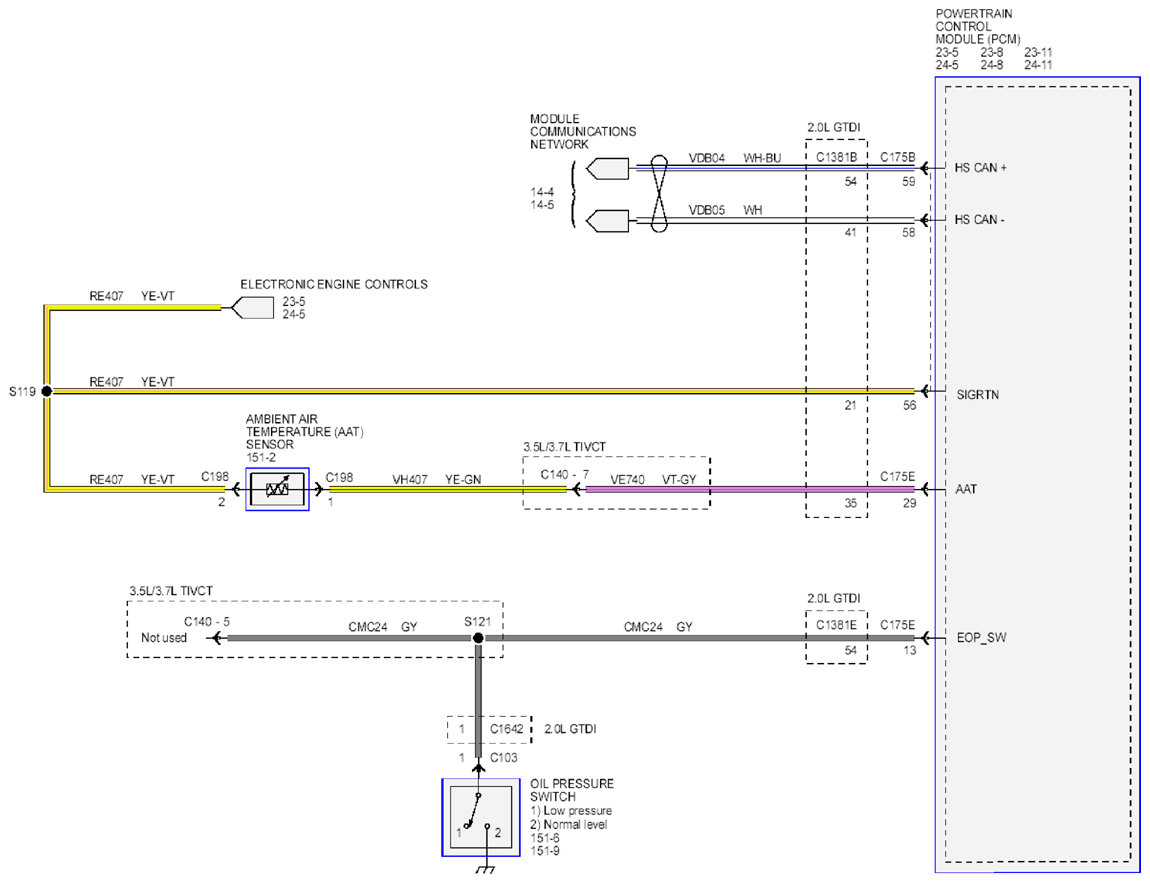

Fig 4: Instrument Cluster - Wiring Diagram (4 Of 5)
Courtesy of FORD MOTOR CO.

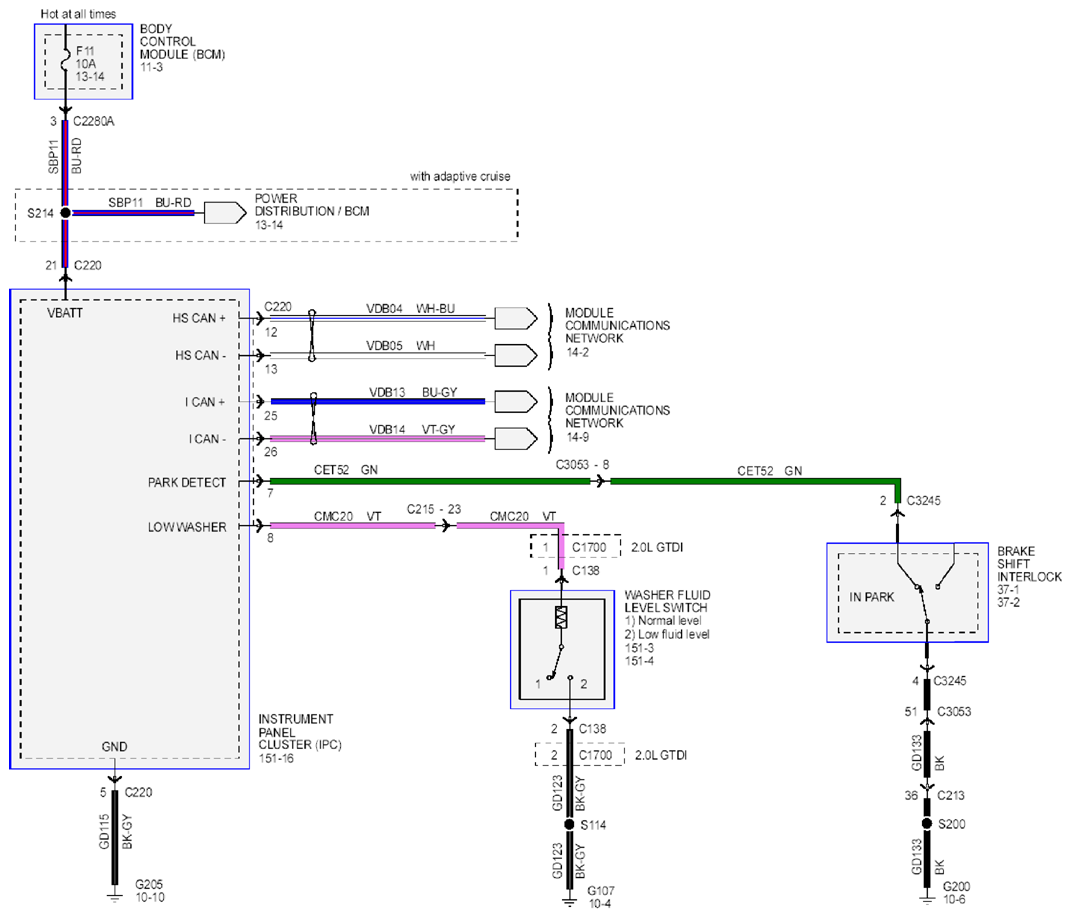

Fig 5: Instrument Cluster - Wiring Diagram (5 Of 5)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
