Brake Pedal and Bracket: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

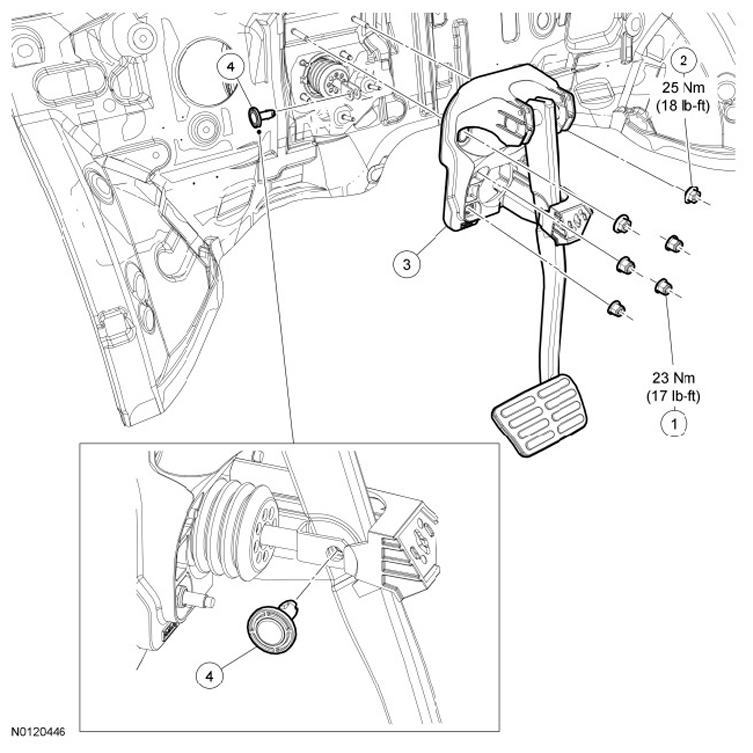

Fig 1: Exploded View Of Brake Pedal And Bracket With Torque Specifications
G07397566Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W520212 Brake booster nut (4 required)
2 W707144 Brake pedal bracket nut (2 required)
3 2455 Brake pedal and bracket assembly
4 2L523 Brake booster push rod clevis locking pin
