Lincoln
>>
2014
>>
MKT Base, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Instrument Cluster
Instrument Cluster

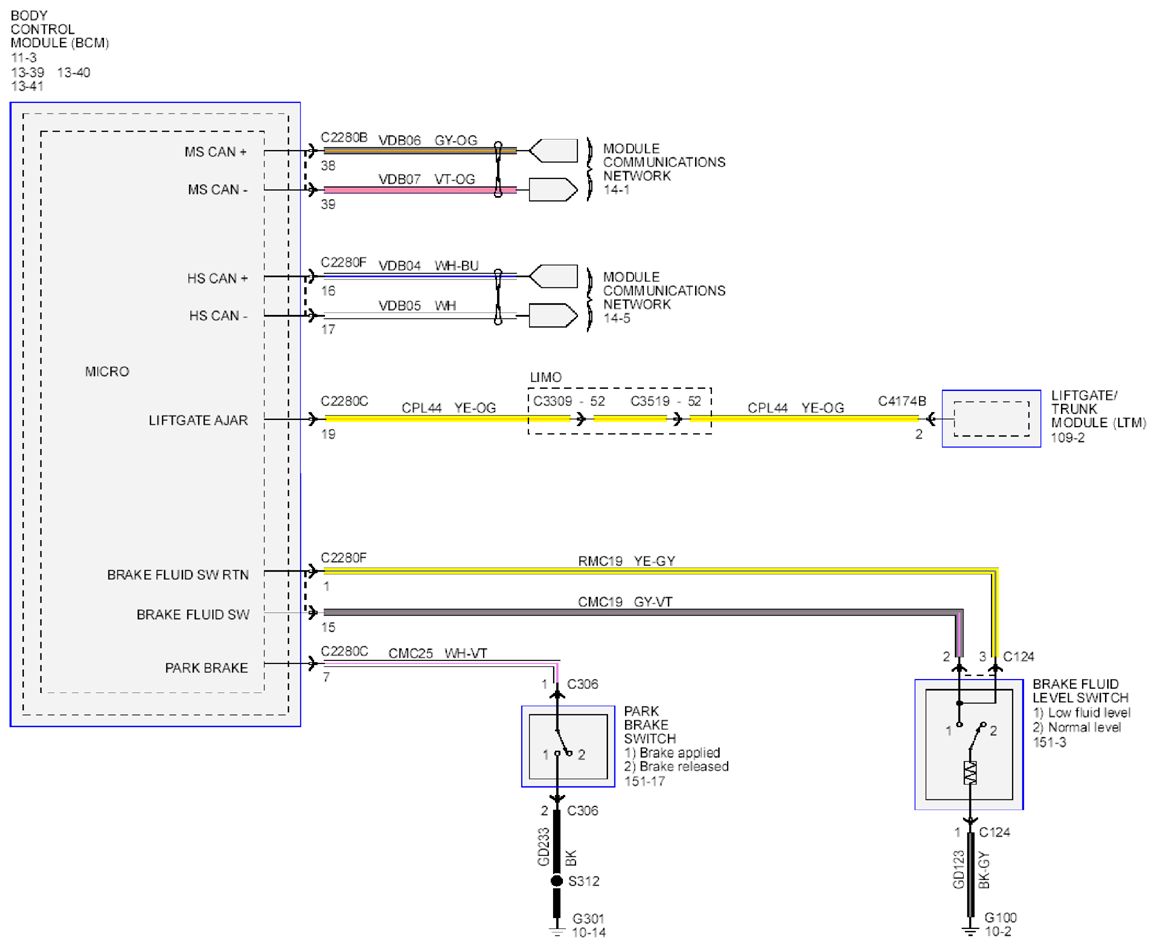

Fig 1: Instrument Cluster - Wiring Diagram (1 Of 6)
Courtesy of FORD MOTOR CO.

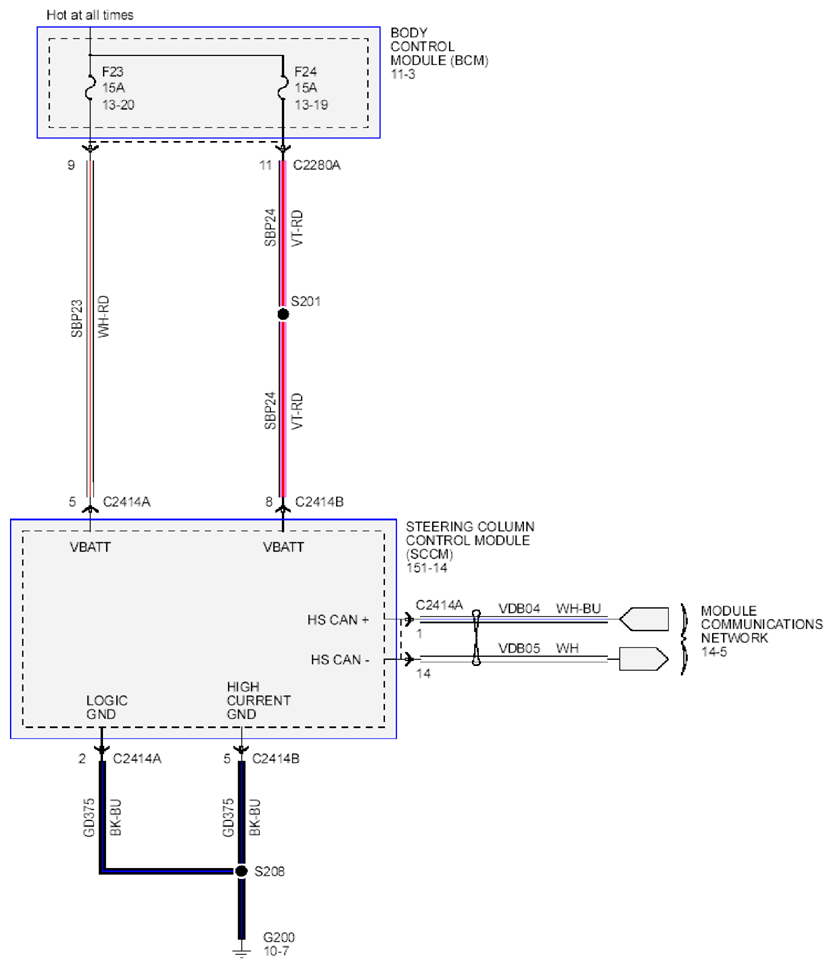

Fig 2: Instrument Cluster - Wiring Diagram (2 Of 6)
Courtesy of FORD MOTOR CO.

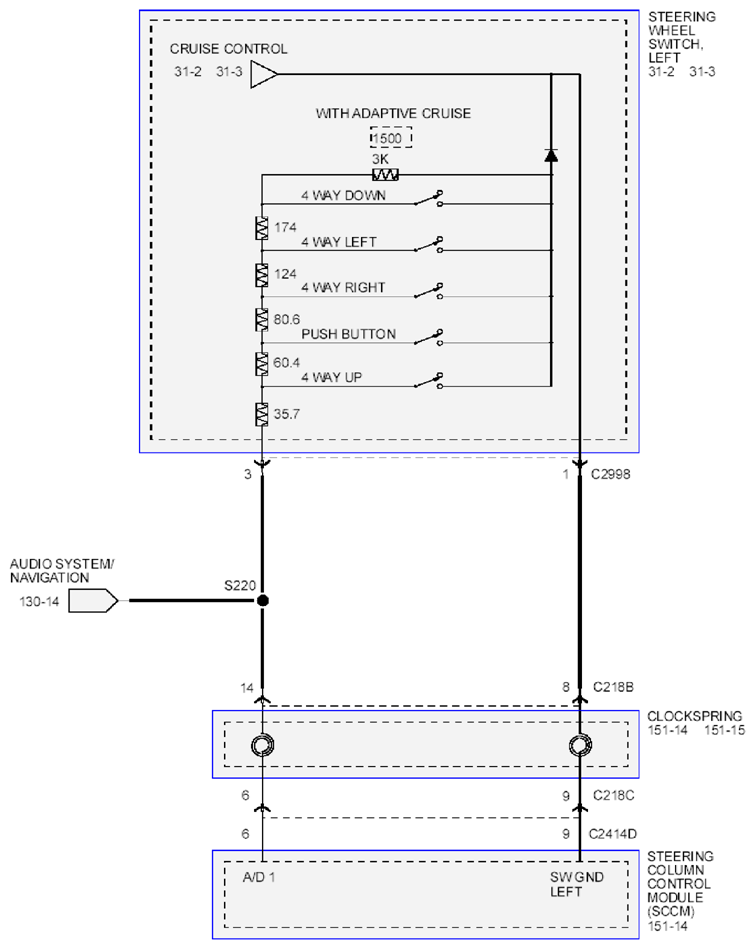

Fig 3: Instrument Cluster - Wiring Diagram (3 Of 6)
Courtesy of FORD MOTOR CO.

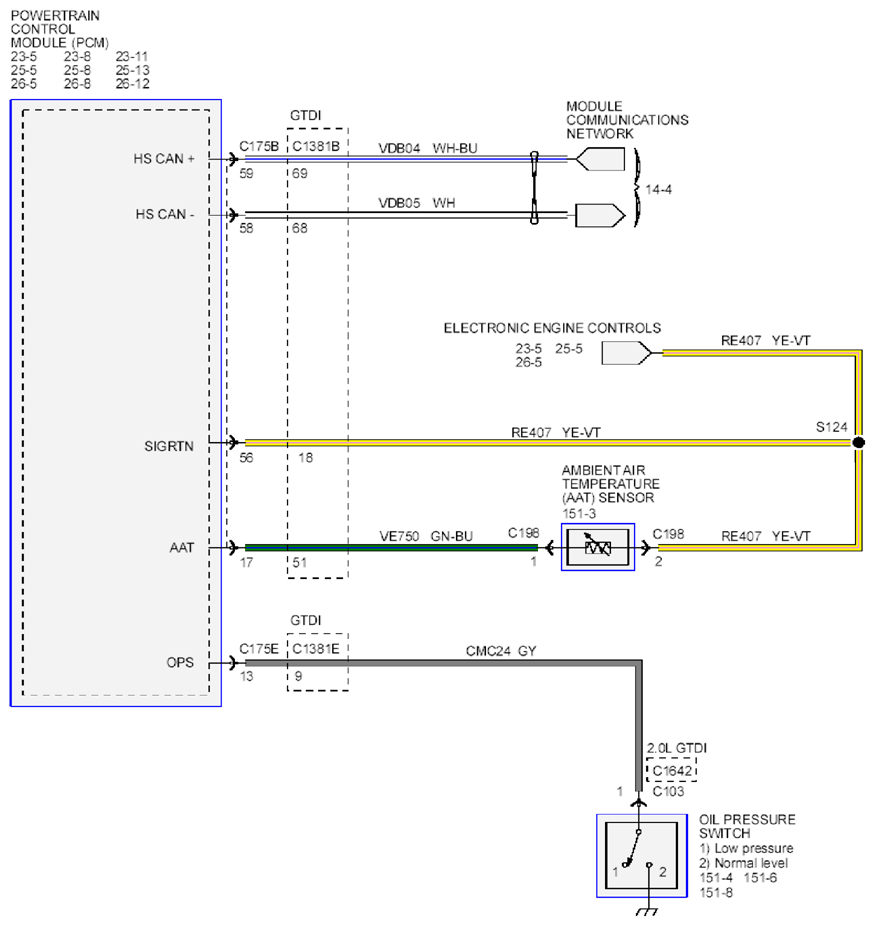

Fig 4: Instrument Cluster - Wiring Diagram (4 Of 6)
Courtesy of FORD MOTOR CO.

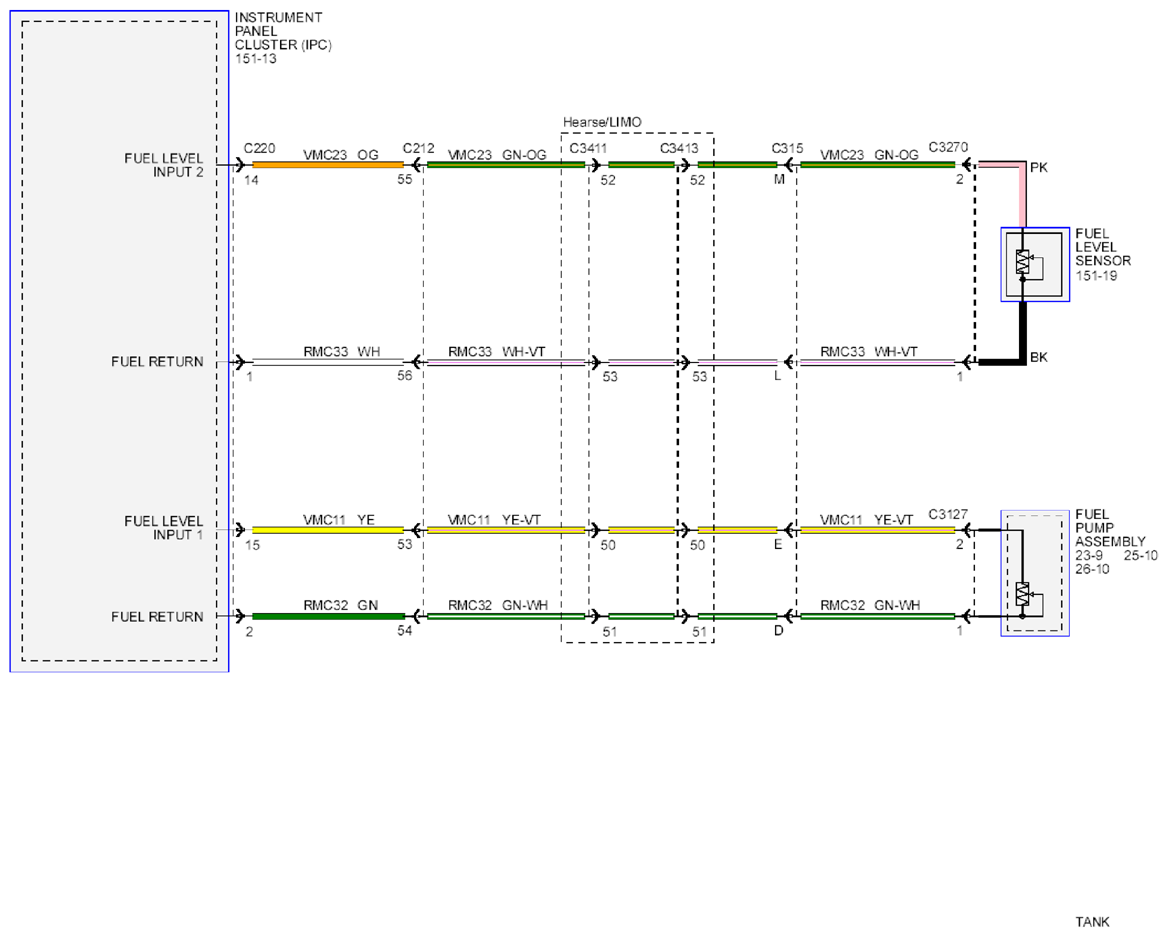

Fig 5: Instrument Cluster - Wiring Diagram (5 Of 6)
Courtesy of FORD MOTOR CO.

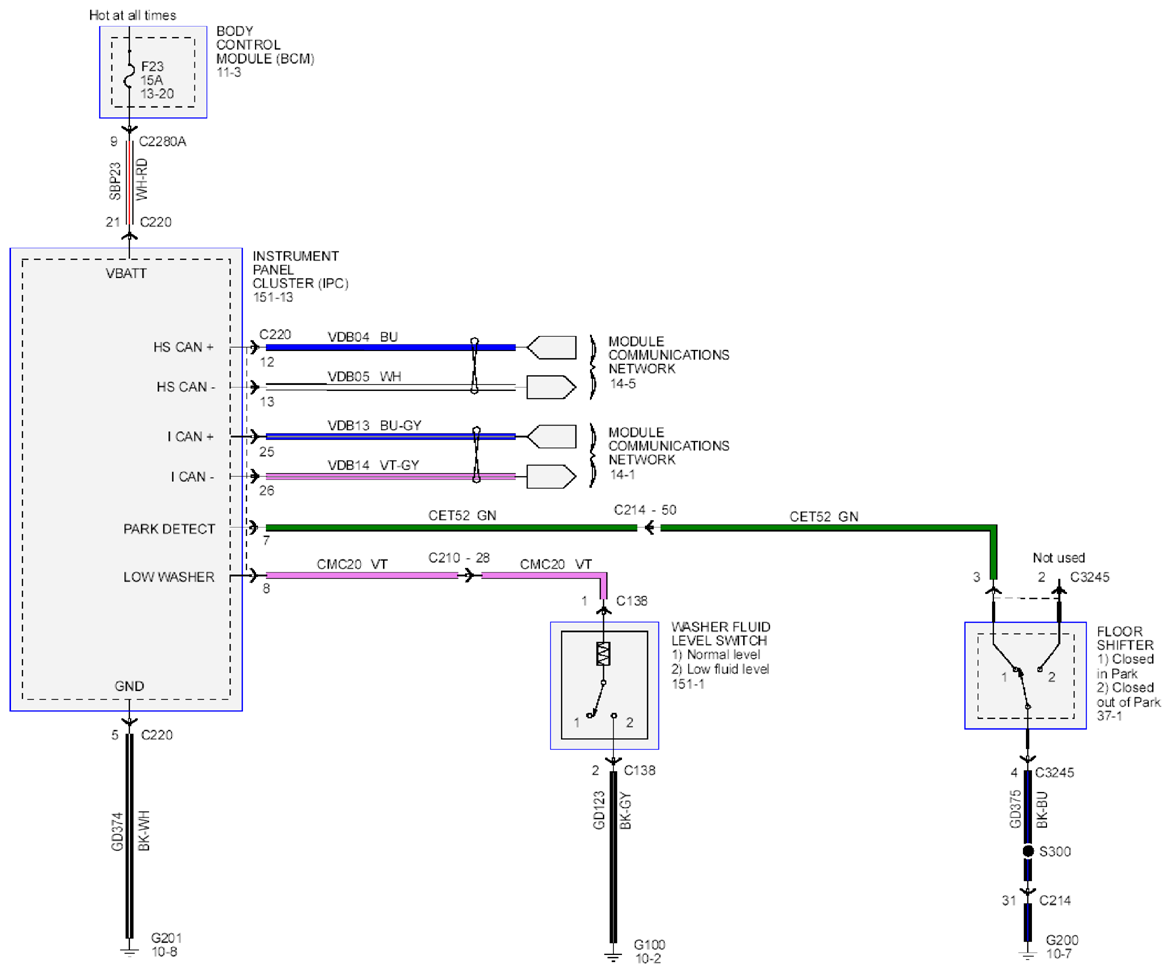

Fig 6: Instrument Cluster - Wiring Diagram (6 Of 6)
Courtesy of FORD MOTOR CO.
