Turbocharger Oil Supply Tube - RH: Installation

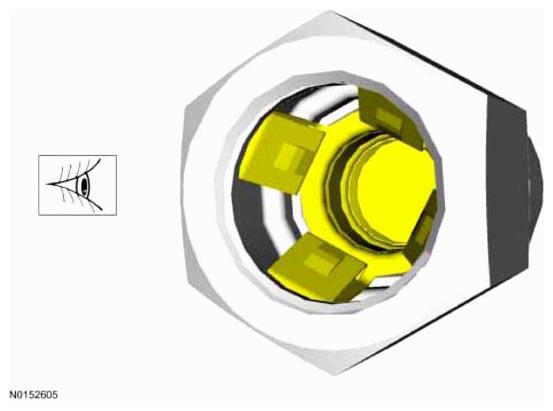

If necessary, replace the turbocharger oil supply tube quick connect fitting.
- Tighten to 16 Nm (142 lb-in).
Install a new turbocharger oil supply tube filter and a new turbocharger oil supply tube linked sealing washer.
Tighten to 40 Nm (30 lb-ft).
Tighten to 12 Nm (106 lb-in).
Install the RF tire. Refer to WHEELS AND TIRES
Install the RH engine lifting eye and the 2 RH engine lifting eye bolts.
- Tighten to 24 Nm (18 lb-ft).

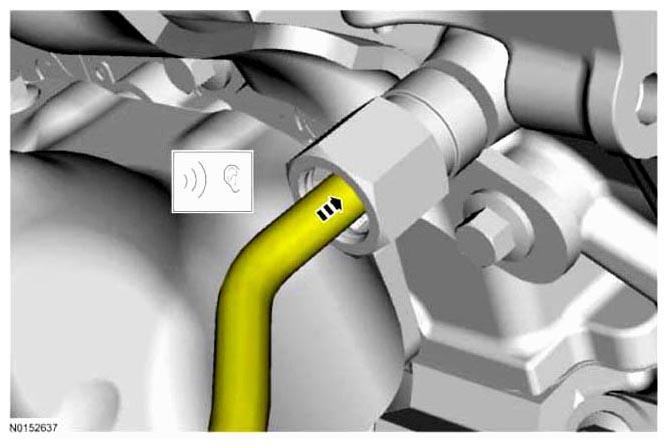

NOTE: Listen for audible click when installing the turbocharger oil supply tube into the quick connect fitting.

Refer to FUEL SYSTEM - GENERAL INFORMATION

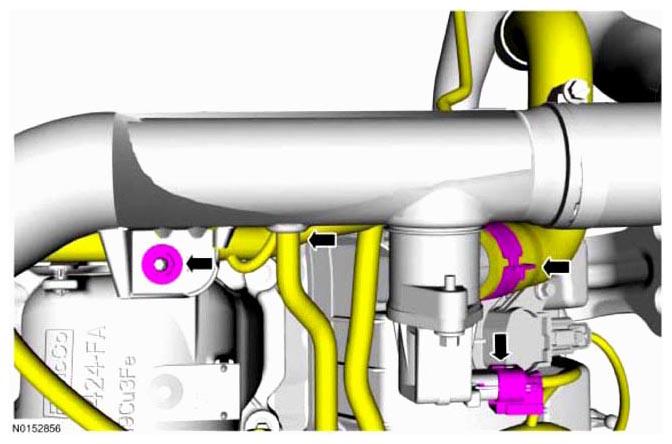

Install the HO2S connector bracket and nut to the engine front cover and attach the HO2S electrical connector.
- Tighten to 10 Nm (89 lb-in)
- Connect the RH turbocharger bypass valve hose.
- Connect the RH turbocharger bypass valve electrical connector.
- Tighten the RH CAC tube clamp to 5 Nm (44 lb-in).
- Install the RH CAC tube to the RH turbocharger and tighten the clamp to 5 Nm (44 lb-in).
- Install the RH CAC tube nut to the intake manifold and tighten to 6 Nm (53 lb-in).
- Install the turbocharger wastegate regulating valve hose to the RH Charge Air Cooler (CAC) tube.
- Connect the LH turbocharger bypass valve electrical connector and the turbocharger bypass valve hose.
Install the strut tower brace and the 4 strut tower brace nuts.
- Tighten to 12 Nm (106 lb-in).
Attach the 2 brake booster vacuum hose retainers to the strut tower brace.
Check and fill the engine oil level as needed with Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (US); Motorcraft® SAE 5W-30 Super Premium Motor Oil (Canada) XO-5W30-QSP (US); CXO-5W30-LSP12 (Canada); or equivalent.
