Integrated Wheel End (IWE): Notes
WARNING: This page is about a different variant/trim than selected.
Courtesy of FORD MOTOR CO.

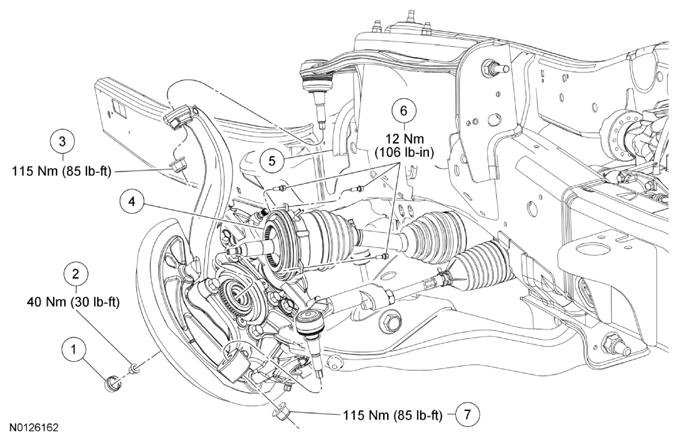

| Item |
Part Number |
Description |
| 1 |
1131 |
Dust cap |
| 2 |
N802827-S |
Axle nut |
| 3 |
W520215-S |
Upper ball joint nut |
| 4 |
3C247 |
Integrated Wheel End (IWE) |
| 5 |
- |
Vacuum vent and supply tube |
| 6 |
W710279-S |
IWE bolts (3 required) |
| 7 |
W520215-S |
Tie-rod nut |
