Brake Booster Vacuum Sensor

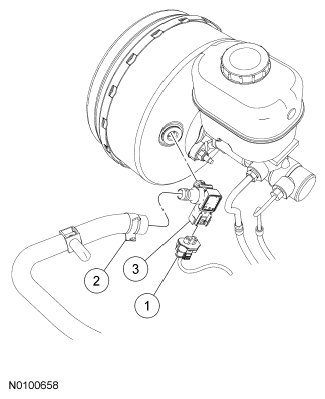

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Vacuum sensor electrical connector (part of 12A581) |
| 2 | - | Vacuum supply hose (part of 9C490) |
| 3 | 2365A | Brake booster vacuum sensor |
- Relieve the vacuum in the brake booster by pressing and releasing the brake pedal a minimum of 5 times with the engine not running.
- Detach the vacuum supply hose from the brake booster vacuum sensor.
- Disconnect the vacuum sensor electrical connector and remove the vacuum sensor.
- To install, reverse the removal procedure.
NOTE:
To allow proper drainage of any moisture, the vacuum sensor must be installed in the same position and orientation as removed.
