Instrument Panel Cluster (IPC): Overview: Notes
NOTE:
Limousine cluster similar

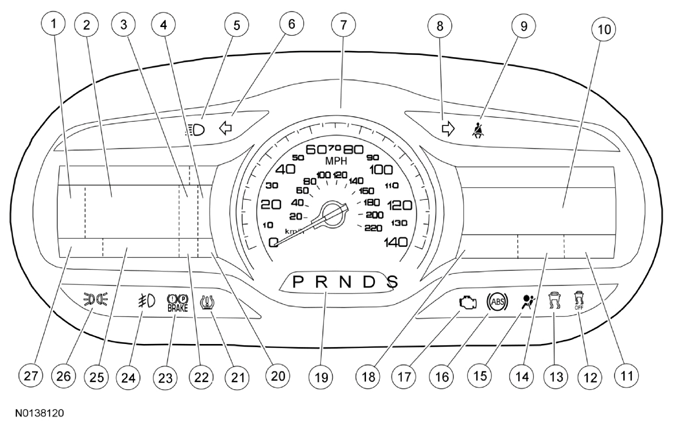

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Main menu icon display |
| 2 | - | LH message center display (also displays the analog style tachometer and select shift display [if equipped] and AWD gauge [if equipped]) |
| 3 | - | Adaptive cruise control display (if equipped) |
| 4 | - | Fuel gauge, fuel gauge/tachometer or fuel gauge/temperature gauge display |
| 5 | - | High beam indicator |
| 6 | - | LH turn indicator |
| 7 | - | Speedometer |
| 8 | - | RH turn indicator |
| 9 | - | Safety belt warning indicator |
| 10 | - | RH multimedia display area |
| 11 | - | Clock display |
| 12 | - | Stability-traction control disabled indicator (sliding car OFF icon) |
| 13 | - | Stability-traction control indicator (sliding car icon) |
| 14 | - | Compass display |
| 15 | - | Air bag warning indicator |
| 16 | - | ABS warning indicator |
| 17 | - | MIL |
| 18 | - | Outside air temperature |
| 19 | - | PRNDL display |
| 20 | - | Select shift display area |
| 21 | - | TPMS warning indicator |
| 22 | - | Cruise control message center indicator (fixed) |
| 23 | - | Brake warning indicator |
| 24 | Fog lamp indicator | |
| 25 | Message center indicator display area (rotating) | |
| 26 | Lights on indicator | |
| 27 | Odometer |
The IPC uses dual RH and LH LCD screens to display driver information. The LH display screen contains the message center information. The RH display screen displays multimedia information (audio, phone, navigation and climate control), as well as items such as vehicle direction, outside air temperature and time.
Refer to CLIMATE CONTROL SYSTEM - GENERAL INFORMATION AND DIAGNOSTICS or Refer to the appropriate Information and Entertainment Systems article for the procedure.
