Parking Assist Control Module (PAM) - 4-Door: Removal
WARNING: This page is about a different car, the 2016 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions
- 2.
If equipped, remove the subwoofer. REFER to: Subwoofer Speaker
- 3.

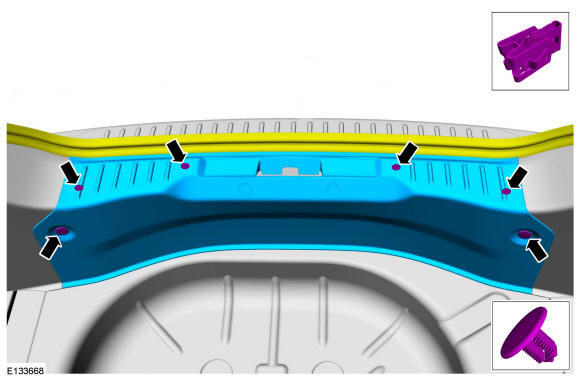

Remove the luggage compartment opening trim panel.- Position the weatherstrip aside.
- Remove the push-pins and release the clips.
- 4.

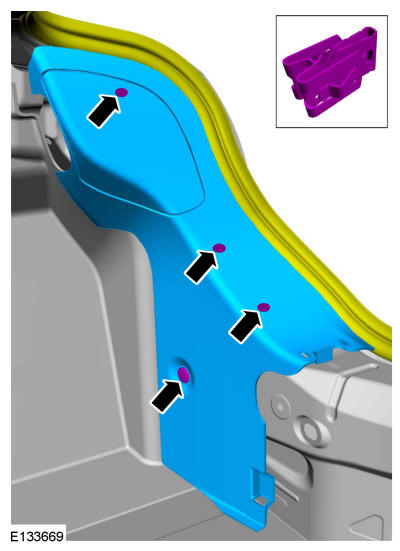

Remove the luggage compartment opening outer trim panel.- Position the weatherstrip aside.
- Remove the push-pin and release the clips.
- 6.
Remove the parking assist control module.- Disconnect the parking assist control module electrical connectors.
- Remove and discard the push-pins.
