Front Parking Aid Sensor: Removal

WARNING: This page is about a different car, the 2016 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This procedure can be used for all locations of the component.

1.

Remove the front bumper cover. REFER to: Front Bumper Cover

2.

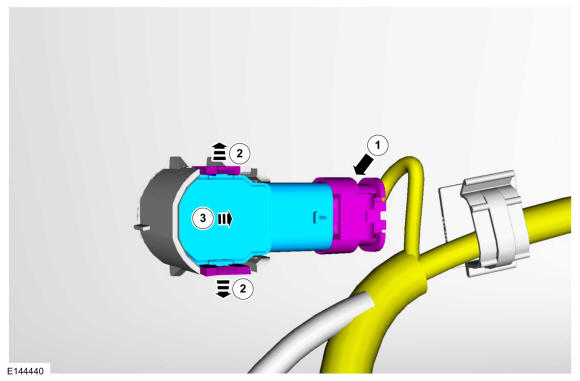

Remove the front parking aid sensor.
1. 1.

  Disconnect the parking aid sensor electrical connector.
1. 2.

  Release the tabs.
1. 3.

  Remove the parking aid sensor from the bracket.

Courtesy of FORD MOTOR COMPANY
