Air Conditioning (A/C) Compressor Belt: Installation

WARNING: This page is about a different car, the 2016 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

1.

NOTE: After installation, make sure the A/C compressor belt is correctly seated on the crankshaft and the A/C compressor pulleys.

Position the A/C compressor belt onto the A/C compressor pulley and around the special tool on the crankshaft pulley. Make sure that the belt is engaged with the crankshaft pulley and rotate the crankshaft clockwise to install the A/C compressor belt. Use Special Service Tool: 303-1252 Stretchy Belt Remover/ Installer Tool.

Courtesy of FORD MOTOR COMPANY

2.

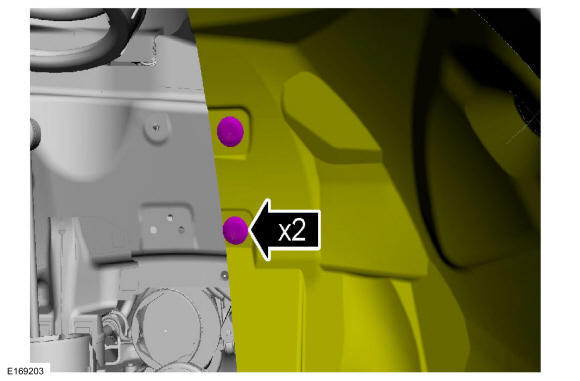

Position back the splash shield and install the 2 retainers.

Courtesy of FORD MOTOR COMPANY

3.

Install the right front wheel. Refer to: Wheel and Tire .

4.

Install the underbody insulator and install the 8 retainers.

Courtesy of FORD MOTOR COMPANY
