Accessory Drive Belt: Removal

WARNING: This page is about a different car, the 2016 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Under no circumstances should the accessory drive belt, tensioner or pulleys be lubricated as potential damage to the belt material and tensioner damping mechanism will occur. Do not apply any fluids or belt dressing to the accessory drive belt or pulleys.

NOTE: Removal steps in this procedure may contain installation details.

1.

The A/C drive belt procedure must be performed before removing the accessory drive belt. Refer to: Air Conditioning (A/C) Compressor Belt .

2.

Remove the engine appearance cover.

Courtesy of FORD MOTOR COMPANY

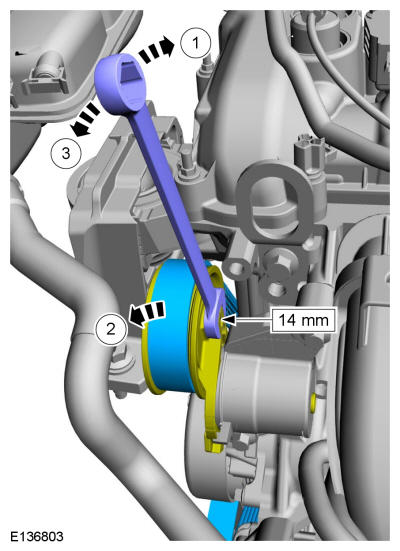

3.
- 1.

  Rotate the accessory drive belt tensioner counter clockwise.
- 2.

  Remove the accessory drive belt.
- 3.

  Remove the tool.

Courtesy of FORD MOTOR COMPANY
