Connector End View (C4228) - PARKING AID SENSOR REAR, CENTER
WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C4228
Description
PARKING AID SENSOR REAR, CENTER
Color
BK
Harness
15K868
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
LMP07 (BU-WH) |
20 |
CTRL MOD. - PARKING AID # SENSORS REAR |
|
|
2 |
VMP14 (WH-OG) |
20 |
SENSOR - PARKING AID # REAR # (CENTER) |
|
|
3 |
RMP07 (GN-WH) |
20 |
CTRL MOD. - PARKING AID # SENSORS REAR |
|
Available Pigtail Kits |
|
|

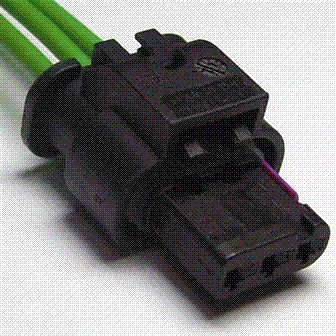

Pigtail Kit Part Number WPT-1287 |
Service Part Number: CU2Z-14S411-YA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses Coil - Ignition Sensor - Front Park Aid (FPA) Sensor - Reverse Park Aide (RPA) |
